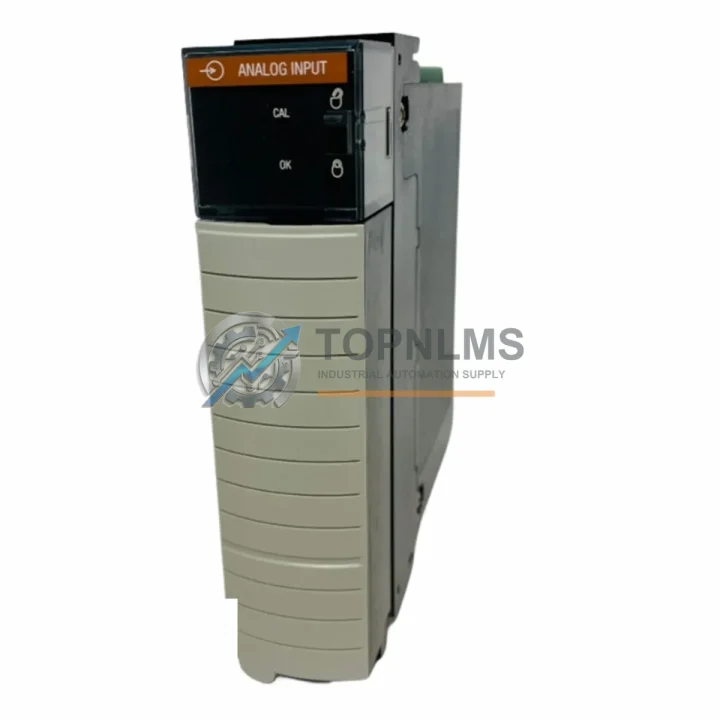

Allen-Bradley 1756-IF8 ControlLogix Original Industrial Spare

Product Overview

Allen-Bradley 1756-IF8 ControlLogix Original Industrial Spare: System Stability & Maintenance Value

The Allen-Bradley 1756-IF8 is an 8-channel analog input module engineered for the ControlLogix 1756 platform — one of the most widely deployed programmable automation controller (PAC) architectures in global discrete and process manufacturing. Maintaining a verified original spare of the 1756-IF8 is a foundational element of any responsible industrial maintenance strategy. Unplanned downtime caused by a failed analog input module can cascade across an entire production line, halting batch processes, triggering safety interlocks, and generating costly emergency procurement cycles. Stocking a tested, original 1756-IF8 eliminates that risk entirely.

At TOPNLMS, every 1756-IF8 unit is sourced from verified supply channels, functionally tested prior to dispatch, and backed by a 12-month warranty. We serve maintenance engineers, MRO procurement teams, and plant managers who require fast, reliable access to original ControlLogix spare parts — without compromising on authenticity or lead time.

Critical Technical Specs

Preventive Maintenance Strategy

The 1756-IF8 sits at the heart of analog signal acquisition in ControlLogix-based control systems. When scheduling a planned shutdown or responding to an unplanned fault, experienced maintenance teams know that replacing a single module rarely tells the full story. A thorough inspection of the surrounding control cabinet and I/O infrastructure is essential to prevent repeat failures and extend system uptime.

When replacing or inspecting the 1756-IF8, it is best practice to simultaneously verify the condition of the 1756-PA75 or 1756-PB75 power supply module, which provides regulated backplane power to all modules in the chassis. A degraded power supply is a common root cause of intermittent analog signal errors that are often misdiagnosed as module faults. Alongside the power supply, the 1756-A10 or 1756-A7 chassis backplane connectors should be inspected for oxidation or mechanical damage, particularly in high-vibration or high-humidity environments.

For systems where the 1756-IF8 feeds process values into a PID loop or safety interlock, the 1756-L74 or 1756-L75 ControlLogix controller firmware version should be confirmed compatible with the module’s Series B or C revision. Mismatched firmware can cause subtle data integrity issues that only manifest under specific load conditions. At the same time, the 1756-EN2T EtherNet/IP communication module — which bridges the ControlLogix backplane to the plant network — should be checked for connection health, as network instability can cause false analog input faults to appear in the controller diagnostic log.

Field wiring integrity is equally critical. The analog signal cables connected to the 1756-IF8’s field-side terminal block should be inspected for insulation wear, shield continuity, and correct grounding. In many facilities, the 1492-AIFM8-F-5 analog interface module (AIF) is used as a wiring termination solution for the 1756-IF8, providing a pre-wired, removable terminal block that dramatically reduces rewiring time during module replacement. Stocking a spare AIF alongside the 1756-IF8 is a recognized best practice in high-availability plants.

For facilities running mixed analog and digital I/O in the same chassis, a concurrent inspection of the 1756-OB16I digital output module and 1756-IB16 digital input module is advisable. These modules share the same backplane environment and are subject to the same thermal and electrical stress cycles. Identifying early signs of wear — such as increased diagnostic fault counts or marginal channel performance — during a planned 1756-IF8 replacement window avoids a second unplanned outage weeks later.

Finally, for plants using 1756-DNB DeviceNet bridge modules or 1756-RIO Remote I/O modules to extend the ControlLogix system to remote field devices, these communication bridges should be included in the inspection checklist. A failing bridge module can cause the controller to lose visibility of entire I/O drops, which may be incorrectly attributed to an analog input module fault during initial troubleshooting.

Strategic Replacement Solutions

The 1756-IF8 has been in production for over two decades, and many facilities are operating units that are approaching or have exceeded their recommended service life. Original replacement units are the only guaranteed path to maintaining full compatibility with existing ControlLogix chassis, controller firmware, and RSLogix 5000 / Studio 5000 project files. Third-party or refurbished alternatives frequently introduce calibration drift, reduced channel isolation, or firmware incompatibilities that are difficult to diagnose in the field.

Replacing an aging 1756-IF8 with a verified original unit requires no chassis modification, no controller program changes, and no re-commissioning of field instruments — the module is hot-swappable and self-identifying on the ControlBus backplane. This means a trained technician can complete a module swap in under 15 minutes, restoring full analog input functionality with zero impact on the controller’s execution cycle. For facilities managing multiple ControlLogix systems across different production lines or buildings, maintaining a minimum stock of two 1756-IF8 units per site is a widely adopted inventory strategy that eliminates single-point-of-failure risk in the spare parts supply chain.

TOPNLMS ships the 1756-IF8 with full functional test documentation, original packaging where available, and a 12-month warranty covering all channel performance parameters. Orders placed before the daily cut-off are dispatched same day, with express international shipping options available for urgent maintenance requirements.

Support FAQ

Q1: Is this 1756-IF8 an original Allen-Bradley unit or a compatible replacement?
This is an original Allen-Bradley 1756-IF8 module sourced from verified supply channels. It is not a compatible clone or third-party equivalent. Each unit is functionally tested before shipment to confirm all 8 analog input channels perform within factory-specified accuracy and resolution parameters.

Q2: What is the warranty coverage and what does it include?
All 1756-IF8 units sold by TOPNLMS are covered by a 12-month warranty from the date of shipment. The warranty covers functional failure of any analog input channel, backplane communication faults, and hardware defects identified under normal operating conditions. Units that fail within the warranty period are replaced or refunded at no additional cost.

Q3: Can I install the 1756-IF8 without powering down the ControlLogix chassis?
Yes. The 1756-IF8 supports hot-swap installation in all standard 1756 ControlLogix chassis. The controller will automatically detect the new module and restore I/O communication without requiring a program download or chassis restart, provided the module revision is compatible with the existing controller firmware.

Q4: How do I verify compatibility with my existing ControlLogix system before ordering?
The 1756-IF8 is compatible with all 1756-series chassis (4, 7, 10, 13, and 17-slot) and all ControlLogix controllers from the 1756-L6x generation onward. To confirm compatibility with your specific controller firmware version and Studio 5000 project, check the module’s Series revision (A, B, or C) against Rockwell Automation’s Product Compatibility and Download Center (PCDC). If you require pre-purchase compatibility verification, contact our technical team at [email protected] with your controller catalog number and firmware version.
