Allen-Bradley 1756-IF4XOF2F Replacement for ControlLogix

Product Overview

Allen-Bradley 1756-IF4XOF2F Replacement for ControlLogix: Smooth Migration & Legacy System Upgrade

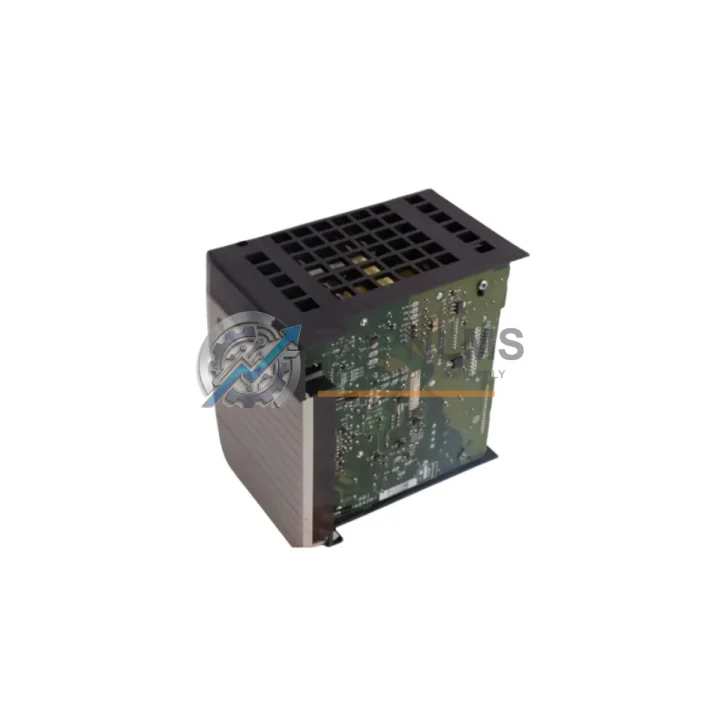

The Allen-Bradley 1756-IF4XOF2F is a ControlLogix platform analog combo I/O module featuring four differential analog inputs and two analog outputs, designed for high-density process control applications. As legacy ControlLogix systems age and original modules reach end-of-life or become increasingly difficult to source, facilities engineers and procurement teams face mounting pressure to maintain uptime without committing to a full system overhaul. The 1756-IF4XOF2F replacement solution offered by TOPNLMS is engineered to address exactly this challenge — delivering a verified, compatible module that slots directly into your existing 1756-series chassis with no re-engineering of your control architecture.

Whether you are migrating from an older 1756-IF4 or 1756-OF2 discrete module arrangement, or replacing a failed 1756-IF4XOF2F in a running production line, this module maintains full backward compatibility with the ControlLogix backplane. It communicates natively over the ControlBus backplane, meaning your existing RSLogix 5000 or Studio 5000 Logix Designer project files require no tag remapping or I/O tree restructuring. The module’s 4-channel differential input configuration supports ±10 V, 0–10 V, 0–20 mA, and 4–20 mA signal ranges, making it directly interchangeable in applications previously served by standalone 1756-IF4 input modules paired with 1756-OF2 output modules.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1756-IF4XOF2F migration rarely involves a single module swap. In most ControlLogix retrofit projects, the analog I/O replacement is one step within a broader system stabilization effort. During the upgrade process, engineers commonly address the 1756-L73 or 1756-L75 ControlLogix controller at the same time, particularly when the CPU firmware needs to be aligned with the replacement module’s firmware revision requirements. The 1756-A17 or 1756-A10 chassis may also be evaluated for slot availability and power budget when adding the replacement module alongside existing 1756-EN2T EtherNet/IP communication modules.

On the field wiring side, the 1756-TBCH or 1756-TBS6H removable terminal blocks allow technicians to pre-wire the replacement module off-line and hot-swap it into the chassis during a planned maintenance window, dramatically reducing field downtime. For installations where signal isolation is required between the process field devices and the ControlLogix backplane, inline signal isolators or 1492-AIFM analog interface modules are frequently used in conjunction with the 1756-IF4XOF2F to maintain signal integrity across long cable runs or in electrically noisy environments.

In distributed I/O architectures where the ControlLogix controller communicates with remote I/O racks over EtherNet/IP, the 1756-EN2T or 1756-EN2TR communication module handles the network bridge function, and its configuration is unaffected by the analog module replacement. Similarly, if your system includes a 1756-PA75 or 1756-PB75 power supply module, no power supply reconfiguration is required when swapping the 1756-IF4XOF2F on a like-for-like basis.

Retrofit Guidance FAQ

Q: Do I need to modify my Studio 5000 project after installing the replacement 1756-IF4XOF2F?
A: No. If the replacement module carries the same catalog number and firmware revision, the I/O configuration in your existing project file is fully compatible. Simply inhibit the module in the I/O tree, physically replace it, re-enable it, and download if required. No tag renaming or rung edits are necessary.

Q: Is field wiring compatible with the replacement module?
A: Yes. The 1756-IF4XOF2F uses the same removable terminal block interface (1756-TBCH or 1756-TBS6H) as the original. Pre-wire the terminal block to the replacement module before installation to minimize downtime during the swap.

Q: What communication protocols does this module support?
A: The 1756-IF4XOF2F communicates over the ControlLogix backplane using the ControlBus protocol. Network-level communication (EtherNet/IP, ControlNet, DeviceNet) is handled by the system’s communication modules, not the analog I/O module itself. No protocol reconfiguration is required.

Q: Will the replacement module fit in my existing 1756-series chassis?
A: Yes. The 1756-IF4XOF2F occupies a single chassis slot and is mechanically compatible with all standard 1756-series chassis, including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17.

Q: What if my original module firmware revision differs from the replacement?
A: Minor firmware revision differences are typically handled automatically by the ControlLogix controller during module initialization. If a major revision mismatch occurs, the module can be inhibited and re-added to the I/O tree with the correct revision selected in Studio 5000.

Warranty Assurance

Every 1756-IF4XOF2F unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including backplane communication checks, analog input/output signal range testing, and visual inspection for physical integrity. If a module fails within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement unit or issue a full refund — whichever resolution the customer prefers.

Orders are typically processed and dispatched within 1–3 business days from our Xiamen warehouse. Express international shipping options are available for urgent replacement requirements. All units are shipped with anti-static packaging and include a test report upon request. Our procurement support team is available to assist with lead time confirmation, quantity pricing, and technical compatibility verification before purchase.

For volume orders, OEM procurement, or system integrator partnerships, please contact us directly to discuss pricing, availability, and consignment stocking arrangements.
