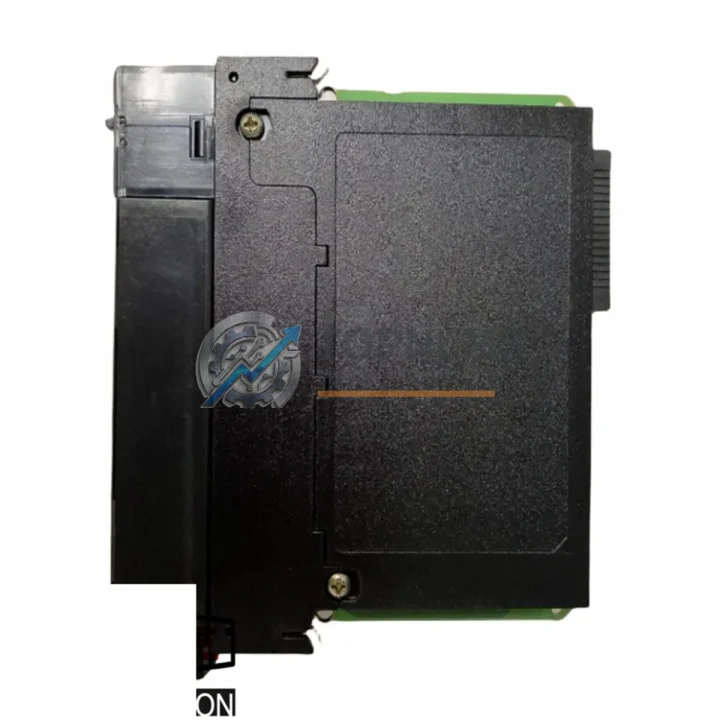

Allen-Bradley 1756-IF16IH Original Industrial Spare ControlLogix

Product Overview

Allen-Bradley 1756-IF16IH Original Industrial Spare ControlLogix: System Stability & Maintenance Value

The Allen-Bradley 1756-IF16IH is a 16-channel HART-enabled analog input module designed for the ControlLogix 1756 platform — one of the most widely deployed programmable automation controller (PAC) architectures in process and discrete manufacturing environments worldwide. For maintenance engineers and reliability teams managing aging control infrastructure, securing a verified original 1756-IF16IH spare is a critical step in protecting system uptime, preserving signal integrity, and extending the operational life of existing ControlLogix cabinets without costly platform migrations.

This module supports HART (Highway Addressable Remote Transducer) protocol on all 16 channels simultaneously, enabling real-time diagnostics, device configuration, and process variable monitoring directly through the analog loop — without additional wiring or dedicated HART multiplexers. In process industries such as oil & gas, chemical, water treatment, and power generation, this capability is indispensable for predictive maintenance programs and instrument health monitoring.

Critical Technical Specs

Preventive Maintenance Strategy

When a 1756-IF16IH fails or degrades in a live process environment, the impact extends well beyond the module itself. HART analog input faults can cascade into loop control errors, false alarms, and unplanned shutdowns. A structured preventive maintenance approach — anchored by having verified spare modules on hand — is the most effective way to minimize mean time to repair (MTTR) and protect production continuity.

During scheduled control cabinet inspections, maintenance teams should simultaneously verify the condition of the 1756-PA75 or 1756-PB75 power supply modules, which provide backplane power to the ControlLogix chassis. A degraded power supply is a common root cause of intermittent analog input faults that are often misdiagnosed as module failures. Alongside the power supply, the 1756-L73 or 1756-L74 ControlLogix controller firmware version should be confirmed compatible with the 1756-IF16IH’s HART pass-through configuration to avoid communication timeouts.

Field wiring integrity is equally critical. The 1756-TBNH removable terminal block and associated field-side wiring should be inspected for corrosion, loose terminations, and insulation degradation — particularly in high-humidity or chemically aggressive environments. Where HART instruments such as pressure transmitters, flow meters, or level sensors are connected, it is advisable to verify device health using a HART communicator during the same maintenance window, reducing the number of separate site visits required.

For installations where the 1756-IF16IH feeds signals into a broader process control loop, the associated 1756-OF8 or 1756-OF8H analog output modules should be inspected concurrently — output drift or calibration errors on the control side can mask input-side anomalies. Similarly, 1756-IB16 or 1756-IB32 digital input modules in the same chassis that handle discrete process interlocks should be checked for contact wear and input filter timing settings.

Communication infrastructure supporting the ControlLogix system — including 1756-EN2T or 1756-EN3TR EtherNet/IP communication modules — should be reviewed for firmware currency and network health statistics. Degraded EtherNet/IP modules can introduce latency in HART pass-through polling, which appears as slow or failed HART device reads at the HMI level. Where DeviceNet or ControlNet legacy segments remain in service, the corresponding 1756-DNB DeviceNet bridge module or 1756-CN2 ControlNet module should also be included in the inspection checklist.

Finally, for facilities managing multiple ControlLogix racks, maintaining a small buffer stock of 1756-A7 or 1756-A10 chassis and 1756-BP6 backplane connectors ensures that a chassis-level failure does not extend downtime beyond the time required to swap and re-seat modules. Integrating these components into a consolidated spare parts inventory — rather than sourcing reactively during an outage — is the single highest-ROI action available to most maintenance departments.

Strategic Replacement Solutions

The 1756-IF16IH is a direct replacement for earlier ControlLogix HART analog input modules including the 1756-IF16H (non-isolated predecessor) in applications where channel-to-backplane isolation is required by updated safety standards or insurance requirements. It is also the preferred upgrade path from legacy 1771-IFE HART analog input modules used in PLC-5 systems, where a ControlLogix migration has been completed but field wiring and HART instruments remain unchanged — preserving the existing instrument investment while gaining the diagnostic and redundancy capabilities of the 1756 platform.

For facilities operating redundant ControlLogix systems using 1756-SRM system redundancy modules, the 1756-IF16IH supports redundant chassis configurations natively, enabling hot-standby operation without signal interruption during controller switchover. This makes it the correct choice for SIL-rated loops and critical process measurements where continuous availability is mandated.

Sourcing a genuine original 1756-IF16IH — rather than a counterfeit or refurbished substitute — ensures full compatibility with Studio 5000 Logix Designer configuration tools, accurate HART device descriptor (DD) file support, and eligibility for Rockwell Automation TechConnect support contracts. At TOPNLMS, every unit is pre-shipment tested under load conditions, serialized, and shipped with documentation confirming authenticity and test results.

Support FAQ

Q1: What is the warranty coverage for the 1756-IF16IH supplied by TOPNLMS?
All units carry a 12-month warranty from the date of shipment. Coverage includes functional failure under normal operating conditions. Each module is tested prior to dispatch and ships with a test report. For warranty claims, contact [email protected] with your order reference and fault description.

Q2: How do I verify compatibility between the 1756-IF16IH and my existing ControlLogix chassis and controller firmware?
The 1756-IF16IH is compatible with all 1756-series chassis (1756-A4 through 1756-A17) and is supported in Studio 5000 Logix Designer v20 and above. For HART pass-through functionality, controller firmware v20.054 or later is recommended. If you are running an earlier firmware version, contact us with your controller catalog number and current firmware revision for a compatibility assessment before ordering.

Q3: What is the recommended inventory strategy for HART analog input modules in a continuous process plant?
For plants with 10 or more 1756-IF16IH modules installed, maintaining a minimum of 1–2 spare units on-site is standard practice. For critical loops (SIL-rated, custody transfer, or safety-instrumented), a dedicated hot-spare in the same cabinet is advisable. TOPNLMS offers volume pricing for multi-unit spare kit orders — contact us for a quotation tailored to your installed base.

Q4: Can the 1756-IF16IH be installed and configured without taking the entire ControlLogix system offline?
Yes. The 1756-IF16IH supports hot-insertion into a powered ControlLogix chassis. The controller will automatically detect the new module and apply the pre-configured module definition from the project file, provided the slot assignment and module type match. HART device polling will resume within one scan cycle after the module completes its self-test sequence. Always follow your site’s management-of-change (MOC) procedure before performing live insertions in safety-critical applications.
