Allen-Bradley 1756-IF16H/A Replacement for ControlLogix

Product Overview

Allen-Bradley 1756-IF16H/A Replacement for ControlLogix: Smooth Migration from Legacy Analog Input Systems

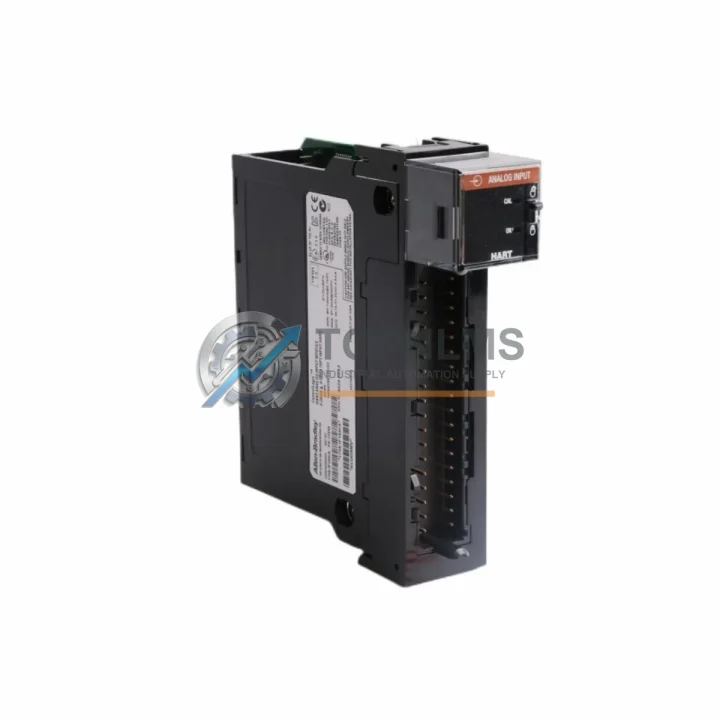

The Allen-Bradley 1756-IF16H/A is a 16-channel HART-enabled analog input module designed for the ControlLogix 1756 platform. As legacy DCS and PLC installations age, plant engineers increasingly face the challenge of sourcing direct replacements for discontinued or end-of-life I/O modules without triggering a full system redesign. This product page is dedicated to helping automation professionals execute a seamless, low-risk upgrade or replacement of the 1756-IF16H/A within existing ControlLogix architectures.

Whether your facility is migrating from an older PLC-5 or SLC 500 platform, retiring a legacy 1771 I/O rack, or simply replacing a failed module in a live ControlLogix chassis, the 1756-IF16H/A slots directly into any standard 1756 chassis — including the 1756-A4, 1756-A7, 1756-A10, and 1756-A17 — without mechanical modification. The module draws power from the chassis backplane via the 1756 series power supply (such as the 1756-PA75 or 1756-PB75), eliminating the need for external field power rewiring in most retrofit scenarios.

Field wiring compatibility is a primary concern during any I/O module swap. The 1756-IF16H/A uses a removable terminal block (RTB) interface, meaning existing field cables can be transferred to the new module without re-termination, provided the same RTB style is retained. For installations using the 1756-TBNH or 1756-TBSH terminal blocks, the wiring transition is straightforward. HART communication is supported on all 16 channels simultaneously, allowing smart field instruments — transmitters, positioners, and multivariable sensors — to continue communicating over the existing 4–20 mA loop without protocol conversion or additional gateways.

From a programming perspective, the module’s I/O tags and configuration parameters are preserved when the replacement module is inserted into the same chassis slot and the existing Logix Designer (Studio 5000) project is downloaded. Channel scaling, filter settings, HART pass-through configuration, and alarm thresholds are all stored in the controller project file, not in the module itself, so no re-engineering of the application logic is required. This is a critical advantage for facilities operating under change-management constraints or IEC 61511 functional safety requirements.

For sites migrating from older analog input platforms — such as the 1771-IFE (PLC-5 HART analog input) or the 1746-NI16I (SLC 500 analog input) — the 1756-IF16H/A provides a modern, high-density replacement with superior HART diagnostics and EtherNet/IP integration via the ControlLogix backplane. The migration typically involves remapping I/O addresses in the control program, updating HMI tag databases (for systems using FactoryTalk View SE or third-party SCADA), and verifying loop integrity with a HART communicator or 1756-ENBT-connected asset management software.

Communication architecture is another key consideration. The 1756-IF16H/A integrates natively with the ControlLogix backplane, making its data immediately accessible to any 1756-L7x or 1756-L8x series controller over the high-speed backplane bus. For distributed architectures using 1756-EN2T or 1756-EN3TR EtherNet/IP communication modules, the analog data can be consumed by remote controllers or SCADA systems with no additional configuration beyond standard produced/consumed tag setup.

Physical installation is straightforward: the module occupies a single slot in any 1756 chassis and requires no special mounting hardware. Replacement of a failed module in a live system can typically be completed in under 15 minutes, minimizing process downtime. For facilities maintaining hot-standby or redundant ControlLogix configurations, the 1756-IF16H/A is compatible with redundancy chassis pairs using the 1756-RM2 redundancy module, ensuring bumpless transfer during switchover events.

TOPNLMS maintains verified stock of the 1756-IF16H/A sourced through authorized industrial distribution channels. Each unit undergoes functional verification prior to shipment from our Xiamen facility. Standard lead time is 3–7 business days for in-stock units, with expedited air freight available for critical plant shutdowns. All units are shipped with original manufacturer packaging where available, and include a 12-month replacement warranty covering manufacturing defects and functional failures under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete 1756-IF16H/A migration typically involves more than a single module swap. Depending on your existing system architecture, the following components are commonly required alongside this analog input module. For chassis expansion, the 1756-A10 or 1756-A17 chassis provides additional slots for co-locating communication and power modules. The 1756-PA75 AC power supply or 1756-PB75 DC power supply must be verified for adequate current capacity when adding high-channel-count I/O modules. EtherNet/IP connectivity is typically provided by the 1756-EN2T or 1756-EN3TR dual-port module, enabling integration with plant-level SCADA and MES systems. For HART asset management, the 1756-ENBT combined with Rockwell’s FactoryTalk AssetCentre provides full HART pass-through diagnostics. Terminal block accessories — specifically the 1756-TBNH (horizontal) and 1756-TBSH (spring clamp) — facilitate clean field wiring transitions. In redundant architectures, the 1756-RM2 redundancy module ensures seamless controller switchover. For sites also upgrading discrete I/O, the 1756-IB16 digital input module and 1756-OB16E electronic fused output module are common co-purchases within the same chassis build.

Retrofit Guidance FAQ

Q: Can I replace the 1756-IF16H/A without modifying my existing field wiring?
A: Yes, provided you retain the same removable terminal block (RTB). The 1756-TBNH or 1756-TBSH can be unplugged from the old module and plugged directly into the replacement unit, preserving all field terminations.

Q: Will my Studio 5000 project require changes after the swap?
A: In most cases, no. If the replacement module is installed in the same chassis slot with the same catalog number, the controller will recognize it automatically upon download. Channel configuration, scaling, and HART settings are stored in the project file.

Q: Is the 1756-IF16H/A compatible with older ControlLogix L55 or L6x controllers?
A: Yes. The module is compatible with all ControlLogix controllers from the L55 generation onward, including L6x and L7x series, subject to firmware revision requirements documented in Rockwell publication 1756-UM533.

Q: How do I verify HART communication after installation?
A: Use a HART Field Communicator (e.g., Emerson 475) connected to the field loop, or use FactoryTalk AssetCentre with the 1756-EN2T to poll HART device descriptors directly from the controller.

Q: What is the physical space requirement?
A: The 1756-IF16H/A occupies one standard ControlLogix chassis slot. No additional DIN rail or panel space is required beyond the existing chassis footprint.

Warranty Assurance

Every 1756-IF16H/A unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Prior to shipment, each module undergoes a functional verification test including channel continuity, HART communication handshake, and backplane interface check. In the event of a confirmed manufacturing defect or functional failure within the warranty period, TOPNLMS will arrange a replacement unit shipment at no additional cost. Our after-sales response target is 24 hours for warranty claims submitted via email. For urgent plant situations, expedited replacement logistics can be arranged. Purchasing documentation including invoice, test report, and warranty certificate is provided with every order.

For procurement inquiries, technical compatibility questions, or urgent replacement requests, contact our industrial automation team directly.
