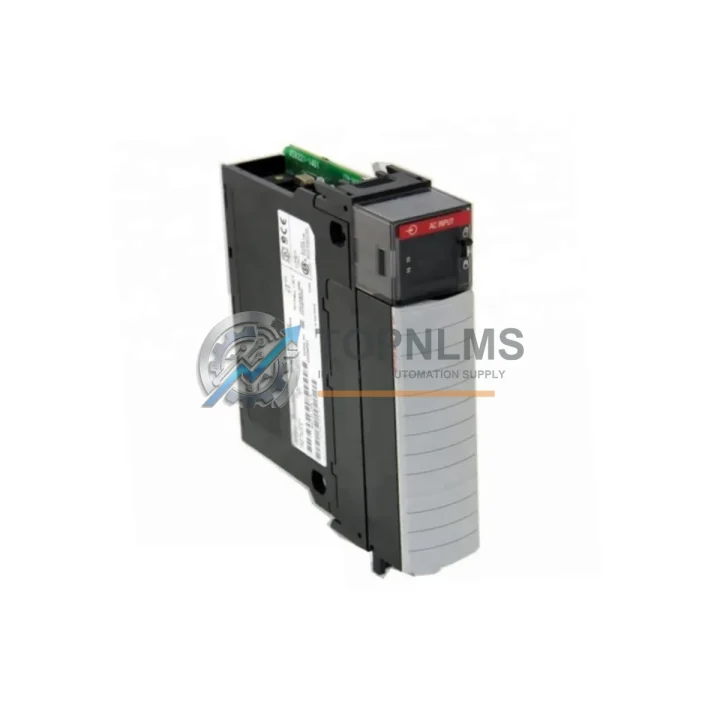

Allen-Bradley 1756-IF16 Replacement/Upgrade for ControlLogix

Product Overview

Allen-Bradley 1756-IF16 Replacement/Upgrade for ControlLogix: Smooth Migration from Legacy Analog Input Systems

The Allen-Bradley 1756-IF16 is a 16-channel analog input module designed for the ControlLogix 1756 platform, supporting voltage and current input signals across all 16 channels simultaneously. As legacy PLC systems age and original equipment manufacturers discontinue support for older I/O modules, plant engineers and automation integrators face increasing pressure to source reliable replacement units or plan structured migration paths that minimize production downtime.

TOPNLMS supplies the 1756-IF16 as a direct drop-in replacement for facilities currently operating ControlLogix 1756-series racks. Whether your existing system runs on an older 1756-L55, 1756-L61, or 1756-L71 controller, the 1756-IF16 integrates seamlessly into the same 1756 chassis without requiring changes to the rack backplane, power distribution, or field wiring terminations. Each channel accepts 0–10 VDC or 4–20 mA signals, and the module communicates over the ControlLogix backplane using the standard 1756 I/O messaging protocol, ensuring full compatibility with existing RSLogix 5000 or Studio 5000 Logix Designer programs.

For sites migrating from older SLC 500 or PLC-5 analog input cards—such as the 1746-NI16I or 1771-IFE—the 1756-IF16 represents a structured upgrade path. While direct wiring termination compatibility depends on the field wiring interface used, the 1492-AIFM16-F-3 analog wiring system or equivalent 1492 series terminal blocks can be used to adapt existing field cables to the 1756-IF16’s front connector, preserving field wiring investments and reducing rewiring labor during the cutover window.

When planning a ControlLogix analog input migration, the 1756-IF16 is typically deployed alongside complementary modules within the same 1756 chassis. A 1756-PA75 or 1756-PB75 power supply module provides the chassis-level DC power required for stable analog signal acquisition. Communication to the supervisory SCADA or DCS layer is handled through a 1756-EN2T or 1756-EN2TR EtherNet/IP communication module, which supports Device Level Ring (DLR) topology for high-availability network architectures. In applications where the analog signals originate from field instruments located in hazardous areas or across long cable runs, a 1756-IF16 installation may also incorporate signal isolators or signal conditioners upstream of the module inputs to protect against ground loops and common-mode noise.

For multi-rack ControlLogix systems, the 1756-IF16 can be installed in remote I/O racks connected via a 1756-CN2 ControlNet communication module or a 1756-EN2T EtherNet/IP adapter, allowing analog input data to be transmitted to the primary controller rack over the plant network. This architecture is common in large process control installations where field I/O is distributed across multiple control panels or junction boxes.

Retrofit projects that involve replacing a 1756-IF16 in an existing rack should follow a structured procedure: document the existing module configuration using Studio 5000 Logix Designer’s module properties export function, power down the chassis or use the hot-swap capability if the controller firmware and chassis support it, seat the replacement 1756-IF16 in the same slot, and restore the module configuration. Because the 1756-IF16 stores its configuration in the controller project file rather than on the module itself, no module-level reconfiguration is required after physical replacement—the controller will automatically download the channel configuration on the next program download or upon re-establishing the I/O connection.

In applications where the 1756-IF16 is being used to replace a third-party analog input module from a legacy DCS platform—such as a Honeywell HC900 analog input card or a Siemens S7-300 SM 331 module—additional engineering work is required to map the existing signal ranges and scaling parameters into the ControlLogix tag database. TOPNLMS technical support can provide guidance on channel configuration, filter time constants, and real-time sampling rate settings to ensure the replacement module meets the process control requirements of the application.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete ControlLogix analog input migration typically involves more than just the 1756-IF16 module itself. The 1756-PA75 or 1756-PB75 power supply module must be sized to support the additional current draw of the new analog input module within the chassis. If the existing chassis is a 1756-A7 or 1756-A13, slot availability should be verified before ordering. For remote I/O architectures, a 1756-EN2T EtherNet/IP communication module bridges the remote chassis to the primary controller over standard Ethernet infrastructure, eliminating the need for proprietary ControlNet cabling in new installations.

Field wiring termination is handled through the 1492-AIFM16-F-3 analog interface module, which provides a pre-wired, labeled terminal block interface that connects directly to the 1756-IF16 front connector via a 1492-CABLE016ZBBD cable assembly. This approach eliminates point-to-point field wiring at the module face and significantly reduces installation time during planned maintenance windows.

In systems where the 1756-IF16 is installed alongside analog output modules such as the 1756-OF8, the chassis power budget and backplane communication load should be reviewed to ensure stable operation. For applications requiring high-speed analog data acquisition, the 1756-IF16 can be paired with a 1756-L85E controller, which supports faster RPI (Requested Packet Interval) settings and larger I/O data tables. Programming cable connectivity for on-site configuration and diagnostics is provided via a standard 1756-USB or Ethernet-connected programming workstation running Studio 5000 Logix Designer.

Retrofit Guidance FAQ

Q: Can the 1756-IF16 replace a 1746-NI16I in an SLC 500 system?
A: Not directly. The 1756-IF16 is designed for the ControlLogix 1756 platform and uses a different backplane interface than the SLC 500 1746 chassis. A platform migration from SLC 500 to ControlLogix is required, which involves replacing the chassis, controller, and power supply in addition to the I/O modules.

Q: Does replacing the 1756-IF16 require a program download?
A: If the replacement module is installed in the same chassis slot and the controller project file is unchanged, the controller will automatically re-establish the I/O connection without a full program download. However, if the slot assignment changes, the I/O tree in Studio 5000 must be updated and a new program download is required.

Q: Is the 1756-IF16 compatible with both 4–20 mA and 0–10 VDC field instruments?
A: Yes. Each channel can be independently configured for voltage or current input mode via the module properties in Studio 5000 Logix Designer. No hardware jumpers or physical modifications are required.

Q: What is the maximum cable length for field wiring to the 1756-IF16?
A: Rockwell Automation recommends shielded twisted-pair cable for analog signal wiring. Maximum cable length depends on the signal type, cable capacitance, and noise environment. For most industrial installations, runs up to 300 meters are achievable with proper shielding and grounding practices.

Q: Can the 1756-IF16 be used in a remote I/O rack?
A: Yes. The 1756-IF16 can be installed in any 1756 chassis, including remote racks connected to the primary controller via a 1756-EN2T EtherNet/IP adapter or 1756-CN2 ControlNet adapter.

Warranty Assurance

Every 1756-IF16 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional testing to verify channel integrity, backplane communication, and signal accuracy across the full input range. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable within one business day for technical support, configuration guidance, and warranty processing. All shipments include a test report and packing list. Express shipping options are available for urgent replacement requirements to minimize plant downtime.

TOPNLMS maintains stock of the 1756-IF16 and related ControlLogix modules to support rapid order fulfillment. Orders placed before the daily cutoff are typically dispatched the same business day. International shipping is available to most destinations, with tracking provided for all shipments.
