Allen-Bradley 1756-IB16IF Replacement/Upgrade Solution for ControlLogix

Product Overview

Allen-Bradley 1756-IB16IF Replacement/Upgrade Solution for ControlLogix: Seamless Transition from Legacy Digital Input Systems

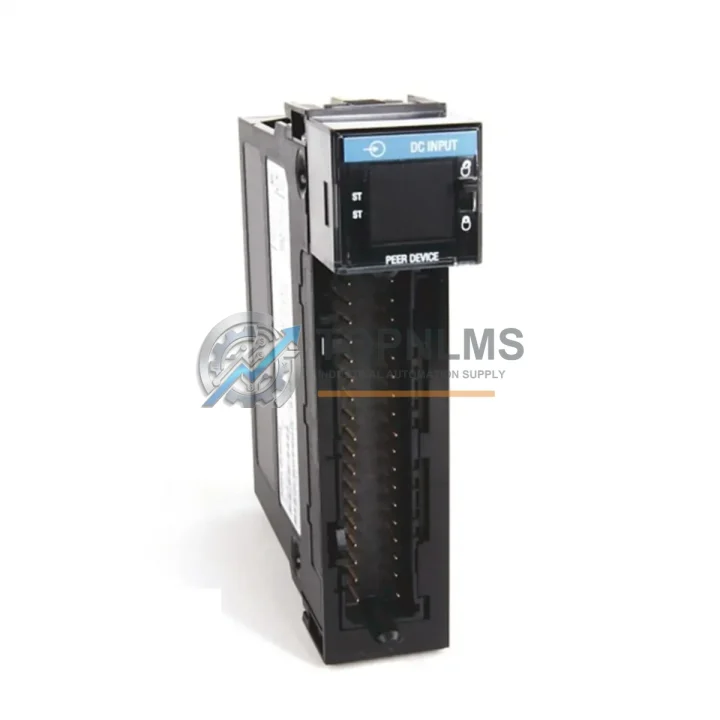

The Allen-Bradley 1756-IB16IF is a 16-point, 10–30V DC timestamped digital input module designed for the ControlLogix 1756 chassis platform. It delivers high-speed, time-stamped discrete input capture with a resolution of 1 ms, making it a critical component in process control, motion coordination, and high-speed event detection applications. As Rockwell Automation continues to evolve its ControlLogix ecosystem, many facilities operating legacy 1756-series racks are now facing end-of-life notices, extended lead times, and discontinued support for older I/O modules. TOPNLMS supplies verified replacement and upgrade units of the 1756-IB16IF to support your migration strategy with minimal disruption to production.

Whether you are replacing a failed module in an existing 1756-A7, 1756-A10, or 1756-A17 chassis, or executing a planned upgrade from an older SLC 500 or PLC-5 architecture to the ControlLogix platform, the 1756-IB16IF integrates directly into your existing rack without requiring chassis replacement or backplane rewiring. The module uses the standard 1756 backplane connector and draws power from the 1756-PA72 or 1756-PB72 power supply already installed in your control cabinet, eliminating the need for additional power infrastructure changes during the swap.

For facilities migrating from the legacy SLC 500 platform, the transition typically involves remapping discrete input addresses from the SLC’s fixed I/O file structure to the ControlLogix tag-based programming model in Studio 5000 Logix Designer. The 1756-IB16IF supports this migration by providing a familiar 16-point input density that maps cleanly to existing field wiring. Terminal block wiring from the original 1746-IB16 or 1746-IB32 modules can often be re-terminated directly to the 1756-IB16IF’s RTB (Removable Terminal Block), reducing field rewiring time significantly. The module’s 1 ms timestamp capability also enables more precise event sequencing than was possible with the older fixed-scan SLC architecture.

In DCS migration scenarios—particularly where legacy Honeywell, Yokogawa, or ABB field I/O panels are being consolidated into a unified ControlLogix-based control system—the 1756-IB16IF serves as the discrete input front-end for field devices such as proximity switches, limit switches, pushbuttons, and relay contacts. Its 24V DC nominal input voltage is compatible with the majority of field instruments already installed in these legacy systems, preserving existing field wiring infrastructure and reducing migration costs.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to or within the ControlLogix platform rarely involves a single module swap. In most retrofit projects, the 1756-IB16IF is deployed alongside a broader set of 1756-series components that together form a complete, modernized control architecture.

On the communications side, the 1756-EN2T EtherNet/IP communication module is the most common companion to the 1756-IB16IF in modern ControlLogix systems, providing the high-speed Ethernet backbone that replaces legacy DH+ or Remote I/O networks. For facilities still operating ControlNet segments, the 1756-CN2 ControlNet communication module bridges the gap between legacy ControlNet field devices and the updated ControlLogix controller. In mixed-protocol environments, the 1756-ENBT remains a widely deployed alternative for EtherNet/IP connectivity in older 1756 chassis configurations.

On the controller side, the 1756-L71 or 1756-L73 ControlLogix processors are the standard pairing for new and upgraded systems using the 1756-IB16IF. These controllers run Studio 5000 Logix Designer projects and support the CIP Sync time coordination that enables the 1756-IB16IF’s 1 ms timestamp feature. For systems requiring redundancy, the 1756-RM2 redundancy module works in conjunction with the primary and secondary chassis to ensure continuous operation during controller failover events.

Wiring infrastructure is another key consideration. The 1756-TBCH removable terminal block is the standard RTB for the 1756-IB16IF, allowing pre-wired terminal assemblies to be disconnected from the module during replacement without disturbing field wiring. For high-density installations, the 1492-AIFM16-F-5 analog interface module and associated 1492 wiring system components can be used to consolidate field wiring into a structured terminal block assembly that connects directly to the 1756-IB16IF via a pre-fabricated cable, significantly reducing installation time in new or retrofit panel builds.

In applications where signal isolation is required between field devices and the ControlLogix input module—particularly in environments with high electrical noise, long cable runs, or mixed-voltage field circuits—DIN-rail mounted signal isolators and relay output modules such as the 1492-XIM series interface modules provide the necessary galvanic isolation while maintaining compatibility with the 1756-IB16IF’s input voltage range. For systems being migrated from older Modbus RTU or PROFIBUS DP field networks, protocol gateways installed in the control cabinet translate legacy device communications into EtherNet/IP or ControlNet signals that the ControlLogix system can process natively.

Retrofit Guidance FAQ

Q: Can the 1756-IB16IF be installed in any 1756 chassis slot?
A: Yes. The 1756-IB16IF occupies a single slot in any 1756-series chassis (A4, A7, A10, A13, or A17) and communicates with the controller via the ControlLogix backplane. No slot restrictions apply beyond standard chassis capacity.

Q: Does replacing a failed 1756-IB16IF require any program changes in Studio 5000?
A: If the replacement module is installed in the same chassis slot and the I/O configuration in the Studio 5000 project remains unchanged, no program modifications are required. The controller will automatically re-establish communication with the module upon power-up. If the module is moved to a different slot, the I/O tree in the project must be updated to reflect the new slot address.

Q: Is the 1756-IB16IF compatible with both ControlNet and EtherNet/IP communication modules?
A: Yes. The 1756-IB16IF communicates over the ControlLogix backplane and is accessible to the controller regardless of which communication module (1756-EN2T, 1756-CN2, or 1756-ENBT) is installed in the chassis. The choice of communication module affects how remote I/O is accessed from other controllers or SCADA systems, not the local I/O module’s operation.

Q: What wiring changes are needed when migrating from a 1746-IB16 (SLC 500) to the 1756-IB16IF?
A: The field wiring voltage levels (24V DC) are compatible, but the physical terminal block format differs. Field wires must be re-terminated to the 1756-TBCH removable terminal block. Input addressing must be remapped from SLC file-based addresses (e.g., I:1/0) to ControlLogix tag-based references in Studio 5000. A wiring diagram review and I/O mapping spreadsheet are recommended before beginning the migration.

Q: Does the 1756-IB16IF support CIP Sync timestamping, and what infrastructure is required?
A: Yes. The 1756-IB16IF provides 1 ms resolution CIP Sync timestamps for all 16 input points. To use this feature, the ControlLogix controller must be configured as a CIP Sync grandmaster or synchronized to a network time source via the 1756-EN2T or equivalent EtherNet/IP module. The timestamp data is available in the module’s input data table and can be used for sequence-of-events (SOE) logging in Studio 5000.

Q: What is the physical installation space requirement?
A: The 1756-IB16IF occupies one standard 1756 chassis slot. No additional DIN rail space or external mounting is required. The removable terminal block (RTB) attaches directly to the front of the module and does not require additional panel depth beyond the standard ControlLogix chassis envelope.

Warranty Assurance

Every 1756-IB16IF unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification process that includes power-on testing, input channel continuity checks, and backplane communication validation to confirm the module is operational before it leaves our facility.

In the event of a confirmed defect or failure within the warranty period, TOPNLMS will arrange a replacement unit or issue a refund based on the customer’s preference and the nature of the fault. Our technical support team is available to assist with installation questions, compatibility verification, and troubleshooting during the warranty period at no additional charge.

For time-critical production environments, we maintain buffer stock of high-demand ControlLogix modules including the 1756-IB16IF to support expedited shipment requests. Standard orders are processed and dispatched within 1–3 business days from our Xiamen warehouse, with international express freight options available for urgent replacement scenarios. All units are shipped in anti-static packaging with individual serial number documentation to support your incoming inspection and asset management processes.

TOPNLMS serves industrial customers across manufacturing, energy, water treatment, and process industries who require reliable sourcing of automation components with documented quality assurance. Our procurement team can assist with multi-line BOM sourcing for complete control system retrofit projects, consolidating orders for controllers, I/O modules, communication modules, power supplies, and wiring accessories into a single shipment to reduce logistics complexity and lead time.
