Allen-Bradley 1756-IB16 Replacement/Upgrade for ControlLogix

Product Overview

Allen-Bradley 1756-IB16 Replacement/Upgrade Solution for ControlLogix: Smooth Migration from Legacy I/O Systems

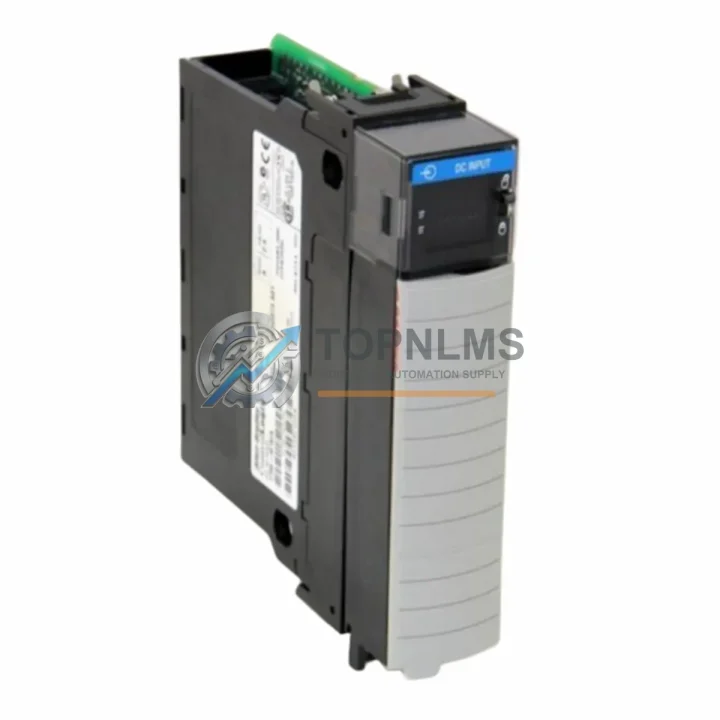

The Allen-Bradley 1756-IB16 is a 16-point, 24VDC sourcing digital input module designed for the ControlLogix 1756 chassis platform. As Rockwell Automation continues to evolve its product lifecycle, many facilities running older 1756-series racks, SLC 500 systems, or PLC-5 architectures are now planning structured migrations to current ControlLogix hardware. The 1756-IB16 serves as a direct, field-proven replacement for aging discrete input modules in these environments, offering a seamless upgrade path that minimizes rewiring, reduces engineering hours, and preserves existing field device wiring infrastructure.

Whether your plant is retiring a 1746-IB16 SLC 500 input module, decommissioning a legacy 1771-IBD PLC-5 I/O card, or consolidating a distributed I/O network onto a centralized ControlLogix backplane, the 1756-IB16 integrates directly into any 1756 chassis without requiring additional interface hardware. Its 24VDC input range is compatible with the vast majority of field sensors, proximity switches, pushbuttons, and limit switches already installed in your control cabinet, making it an ideal drop-in upgrade for facilities seeking to extend system life without a full greenfield redesign.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 1756-IB16 rarely involves a single module swap. In practice, upgrading a ControlLogix I/O subsystem requires careful coordination of several interdependent components. When replacing a legacy SLC 500 rack, engineers typically begin by evaluating the 1756-L8x or 1756-L7x ControlLogix controller to serve as the new CPU, ensuring sufficient memory and task capacity for the migrated program. The 1756-IB16 slots into any available position in the 1756-A7 or 1756-A17 chassis, and the existing 24VDC field wiring can be reconnected directly to the 1756-TBCH removable terminal block without modification in most cases.

For facilities that previously relied on a 1747-SN Remote I/O Scanner or a 1771-ASB adapter to extend I/O to remote panels, the migration to ControlLogix typically involves introducing an EtherNet/IP network backbone. The 1756-EN2T or 1756-EN2TR EtherNet/IP communication module installed in the same 1756 chassis allows the 1756-IB16 inputs to be read by remote controllers or SCADA systems over standard Ethernet infrastructure, eliminating the need for proprietary DH+ or Remote I/O cabling.

In mixed-signal environments where analog and discrete I/O coexist in the same cabinet, the 1756-IB16 is commonly installed alongside the 1756-IF16 analog input module and the 1756-OB16E digital output module, forming a complete I/O complement within a single chassis. Power for the chassis is supplied by the 1756-PA75 or 1756-PB75 power supply module, which must be sized to accommodate the total backplane current draw of all installed modules including the 1756-IB16.

For applications requiring signal isolation between field devices and the control system — particularly in high-voltage or electrically noisy environments such as motor control centers or variable frequency drive (VFD) panels — a signal isolator or relay interface module may be installed upstream of the 1756-IB16 inputs. This is especially relevant when migrating from older systems where isolation was handled by interposing relays in the field junction box. The 1756-IB16’s 24VDC input threshold and noise immunity specifications are well-suited for most industrial environments, but isolation barriers remain best practice in high-interference installations.

Programming migration from RSLogix 500 to Studio 5000 Logix Designer is supported by Rockwell’s migration tools, and the tag-based addressing structure of the 1756-IB16 (e.g., Local:0:I.Data.0) replaces the file-based addressing of SLC systems. This transition is straightforward for most ladder logic programs, and the 1756-IB16’s module definition in Studio 5000 auto-populates input tags upon configuration, reducing commissioning time significantly.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing a 1746-IB16 with the 1756-IB16?
A: In most cases, yes. If your field devices are 24VDC sourcing sensors or switches, the wiring can be reconnected directly to the 1756-TBCH terminal block. The pin assignments differ between the 1746 and 1756 platforms, so verify the wiring diagram against the 1756-IB16 installation manual before reconnecting. No signal conditioning is required for standard 24VDC inputs.

Q: Is the 1756-IB16 compatible with my existing ControlLogix chassis and power supply?
A: Yes. The 1756-IB16 is compatible with all standard 1756 chassis sizes (1756-A4, A7, A10, A13, A17) and all 1756-series power supplies. Verify that your existing power supply has sufficient backplane current capacity (the 1756-IB16 draws approximately 120mA at 5VDC from the backplane) before installation.

Q: Do I need to update my PLC program after replacing the module?
A: If you are replacing a like-for-like 1756-IB16 within the same ControlLogix platform, no program changes are required — the module definition and I/O tags remain identical. If migrating from SLC 500 or PLC-5, the program must be converted to Studio 5000 format and I/O addresses remapped to the new tag-based structure.

Q: What communication protocols does the 1756-IB16 support?
A: The 1756-IB16 communicates over the ControlLogix backplane using the ControlBus protocol. It does not have an independent network interface. Remote access to its I/O data is achieved through the controller and communication modules (e.g., 1756-EN2T for EtherNet/IP, 1756-DNB for DeviceNet, or 1756-CN2 for ControlNet) installed in the same or bridged chassis.

Q: How much physical space does the 1756-IB16 require in the control cabinet?
A: The 1756-IB16 occupies a single slot in any 1756 chassis. The chassis itself must be mounted in the control cabinet with adequate clearance for airflow and cable management. The removable terminal block (RTB) adds approximately 40mm of depth when installed. Ensure the cabinet has sufficient depth (typically 200mm minimum) for the chassis, power supply, and wiring duct.

Q: Can the 1756-IB16 replace a 1771-IBD PLC-5 input module directly?
A: Not as a direct slot-for-slot replacement, as the 1771 and 1756 platforms use different chassis and backplane architectures. However, the 1756-IB16 is the functional equivalent for the ControlLogix platform. Migration requires installing a 1756 chassis alongside or in place of the 1771 rack, transferring field wiring to the new RTB, and converting the PLC-5 program to Studio 5000.

Warranty Assurance

Every 1756-IB16 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including backplane communication testing, input channel continuity checks, and visual inspection for physical integrity. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

In the event of a confirmed module defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a full refund, subject to inspection of the returned item. Our technical support team is available to assist with installation questions, compatibility verification, and commissioning guidance. Response time for warranty claims and technical inquiries is typically within 1 business day.

We maintain stock of the 1756-IB16 and related ControlLogix components to support urgent replacement requirements. Express shipping options are available for critical downtime situations. All units are sourced through verified supply channels and are subject to pre-shipment quality control to ensure authenticity and functionality.
