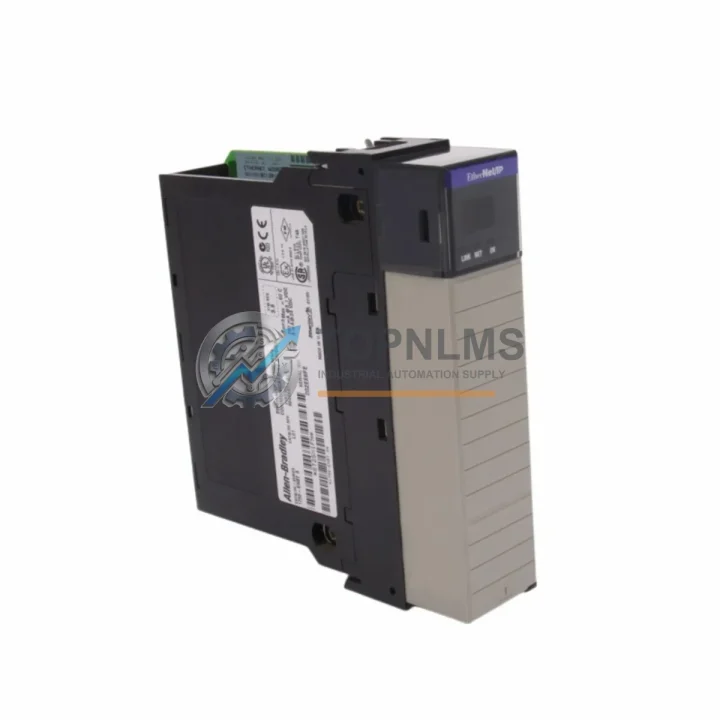

Allen-Bradley 1756-ENBT/A Ruggedized EtherNet/IP Bridge Module

Product Overview

Allen-Bradley 1756-ENBT/A Ruggedized EtherNet/IP Bridge Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1756-ENBT/A is a high-performance EtherNet/IP bridge communication module engineered for the ControlLogix 1756 platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. Designed to operate reliably in demanding industrial environments characterized by elevated temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the 1756-ENBT/A delivers deterministic, high-speed Ethernet communications where conventional networking hardware would fail.

In continuous production environments — from petrochemical refineries and offshore platforms to underground mining operations and high-voltage power substations — communication integrity is not optional. The 1756-ENBT/A bridges the ControlLogix backplane to a standard 10/100 Mbps EtherNet/IP network, enabling real-time data exchange between the controller and distributed I/O racks, remote HMI panels, SCADA systems, and supervisory infrastructure. Its rugged design ensures that even under sustained vibration loads, thermal cycling, and transient voltage events common in heavy industry, the module maintains stable link status and uninterrupted data throughput. For industrial buyers managing spare parts programs, planned maintenance schedules, or emergency replacement procurement, the 1756-ENBT/A available through TOPNLMS is pre-tested, in-stock, and backed by a 12-month quality warranty with fast international shipping.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-ENBT/A is rarely deployed in isolation. In a fully integrated ControlLogix system, it operates in concert with the 1756-L71 or 1756-L73 ControlLogix CPU modules, which serve as the primary logic controllers managing safety interlocks, process sequencing, and alarm management across the plant. Alongside the CPU, the 1756-IB16 digital input module and 1756-OB16E digital output module handle field-level signal acquisition and actuation, while the 1756-IF8 analog input module processes continuous process variables such as temperature, pressure, and flow rate from field transmitters — all communicating over the same EtherNet/IP backbone that the 1756-ENBT/A anchors.

For installations requiring redundant power integrity, the 1756-PA75 or 1756-PB75 power supply modules provide stable backplane voltage regulation, protecting all installed modules from power line disturbances and brownout conditions common in heavy industrial facilities. In multi-chassis architectures, the 1756-ENBT/A pairs with the 1756-RM2 redundancy module to support hot-standby controller configurations, ensuring zero-downtime failover in critical process control applications where a single second of lost communication can trigger costly production shutdowns or safety system activations.

Where safety-rated control is required — such as in SIL 2 or SIL 3 classified hazardous zones — the 1756-ENBT/A integrates seamlessly with GuardLogix safety controllers and 1791DS-IB8XOBV4 safety I/O modules over the same EtherNet/IP network, enabling a unified safety and standard control architecture without the cost and complexity of a separate safety network. For distributed I/O over long distances, the module communicates with 1734 POINT I/O adapters and 1738 ArmorPOINT I/O modules mounted directly in the field, reducing wiring complexity and improving fault isolation in large-scale plant layouts. In drive-intensive applications such as conveyor systems, compressor stations, and pump control panels, the 1756-ENBT/A provides the network backbone for coordinating PowerFlex 755 variable frequency drives via EtherNet/IP, enabling precise speed and torque control with real-time diagnostics accessible from the SCADA layer.

Terminal block assemblies and marshalling panels equipped with 1492 wiring systems complete the installation, providing organized, labeled field terminations that simplify maintenance and reduce troubleshooting time during unplanned shutdowns. The combination of these components within a single control cabinet — all networked through the 1756-ENBT/A — represents the gold standard for industrial automation reliability in harsh-environment applications.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 1756-ENBT/A is deployed in wellhead control panels, pipeline SCADA RTUs, and compressor station PLCs where continuous, unattended operation is mandatory. The module’s ability to maintain stable EtherNet/IP communications under the thermal extremes and vibration profiles of compressor skids makes it a preferred choice for facilities operating under API and IEC 61511 functional safety standards. Offshore platform installations — where salt-laden air, humidity, and space constraints demand compact, corrosion-resistant electronics — rely on the 1756-ENBT/A’s proven field record to maintain communication between topside control rooms and subsea or deck-level process equipment.

In underground coal and metal mining environments, where explosive atmospheres, high dust concentrations, and ground-induced vibration are constant operational realities, the 1756-ENBT/A is installed within certified explosion-proof or purged-and-pressurized control enclosures. It provides the communication link between surface SCADA systems and underground conveyor drives, ventilation fan controllers, and dewatering pump stations — all of which depend on uninterrupted data exchange for safe and efficient operation. Power generation and transmission facilities — including thermal power plants, hydroelectric stations, and high-voltage substations — rely on the 1756-ENBT/A for substation automation and protection relay coordination. Its EMI immunity is critical in environments where high-voltage switching events generate transient electromagnetic fields that can disrupt standard industrial networking equipment.

Water and wastewater treatment plants similarly depend on this module for SCADA-integrated control of aeration blowers, chemical dosing pumps, and clarifier drives, where continuous uptime directly impacts regulatory compliance and public health outcomes. In metallurgical and steel production facilities, the 1756-ENBT/A operates within rolling mill control systems, electric arc furnace automation panels, and continuous casting line PLCs, where ambient temperatures regularly exceed 50°C and airborne metallic particulates present constant contamination risks to electronic equipment. Its robust design and proven field reliability make it a trusted component in these extreme-duty applications, and its wide availability through TOPNLMS ensures that replacement units can be sourced quickly when unplanned failures occur.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1756-ENBT/A?
All 1756-ENBT/A modules supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support for installation, configuration, and compatibility verification throughout the warranty period, with replacement or repair options available for confirmed warranty claims.

Q2: How is each module tested before shipment?
Every 1756-ENBT/A unit undergoes pre-shipment functional verification, including power-on self-test, backplane communication check, and Ethernet link integrity testing. Modules are inspected for physical condition, firmware revision, and label authenticity before packaging. Units are shipped in anti-static protective packaging with appropriate cushioning for international freight, ensuring they arrive in field-ready condition.

Q3: Is the 1756-ENBT/A compatible with my existing ControlLogix chassis and Studio 5000 software?
Yes. The 1756-ENBT/A is fully compatible with all 1756 ControlLogix chassis sizes (4, 7, 10, 13, and 17 slots) and is supported in RSLogix 5000 v16 and later, as well as Studio 5000 Logix Designer. It supports standard CIP messaging, produced/consumed tags, and MSG instructions for peer-to-peer and controller-to-I/O communications, making it a drop-in replacement for existing installations without requiring software reconfiguration.

Q4: Can TOPNLMS support long-term or repeat procurement of the 1756-ENBT/A for ongoing maintenance and spare parts programs?
Yes. TOPNLMS maintains stock of the 1756-ENBT/A and other ControlLogix 1756 series modules to support planned maintenance schedules, emergency spare parts replacement, and capital project procurement. We can provide lead time commitments, batch inspection reports, and consolidated shipments for multi-site industrial customers. Contact our team to discuss volume pricing and dedicated inventory reservation for long-term supply agreements.
