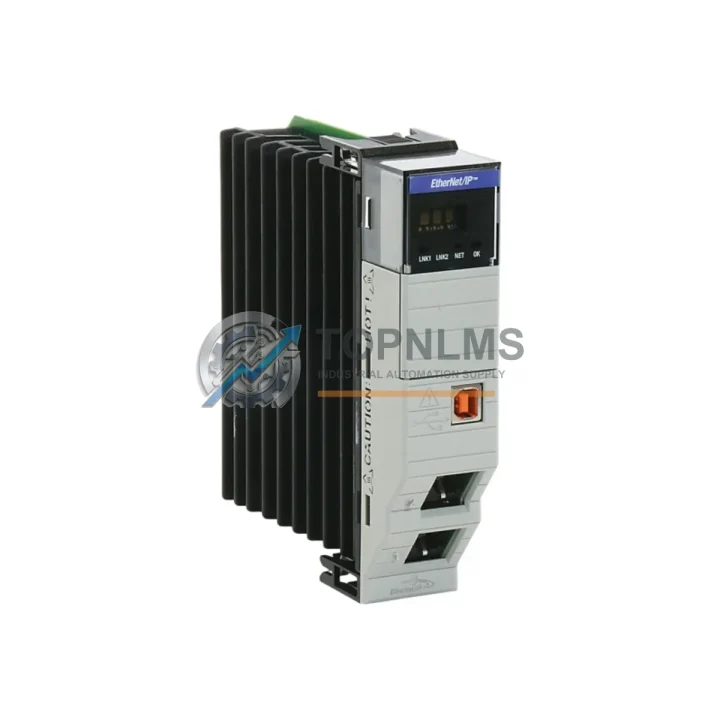

Allen-Bradley 1756-EN2TR/C Ruggedized EtherNet/IP Module

Product Overview

Allen-Bradley 1756-EN2TR/C Ruggedized EtherNet/IP Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1756-EN2TR/C is a dual-port, redundant EtherNet/IP communication module engineered for the ControlLogix 1756 platform — one of the most trusted programmable automation controller architectures in global heavy industry. Designed to sustain continuous, uninterrupted data exchange across mission-critical networks, this module delivers the communication backbone that modern industrial control systems demand in environments where failure is not an option.

Deployed across oil and gas pipelines, mineral processing plants, power generation facilities, water treatment infrastructure, and steel manufacturing lines, the 1756-EN2TR/C is purpose-built to maintain stable EtherNet/IP connectivity even under conditions of extreme temperature variation, persistent mechanical vibration, airborne particulate contamination, and high-intensity electromagnetic interference. Its dual-port Device Level Ring (DLR) topology support enables automatic network fault recovery in under 3 milliseconds — a critical capability for continuous production lines where even momentary communication loss can trigger costly shutdowns or safety incidents.

Within a ControlLogix chassis, the 1756-EN2TR/C operates alongside the 1756-L85E ControlLogix 5580 controller and 1756-PA75 power supply to form a tightly integrated control node. The module communicates seamlessly with 1756-IB16 digital input modules, 1756-OB16E digital output modules, and 1756-IF16 analog input modules, ensuring that field-level I/O data is transmitted to the controller with deterministic latency. In redundancy-critical applications, it pairs with the 1756-RM2 redundancy module to support hot-standby controller configurations, maintaining process continuity during planned maintenance or unexpected hardware faults.

The 1756-EN2TR/C also serves as a gateway node for distributed I/O architectures. It connects ControlLogix controllers to remote 1734 POINT I/O racks and 1769 CompactLogix systems over standard EtherNet/IP, enabling scalable, plant-wide control topologies without proprietary cabling infrastructure. In facilities running Rockwell Automation’s Integrated Architecture, this module bridges the controller layer with SCADA systems, historian servers, and MES platforms, supporting real-time production data visibility across the enterprise.

For applications requiring functional safety compliance, the 1756-EN2TR/C integrates within architectures that include the 1791DS GuardLogix safety I/O modules and 1756-L8SP GuardLogix safety controller, ensuring that safety-rated communication paths remain intact even during network topology changes. Its compatibility with CIP Safety protocol extensions makes it a preferred choice for machinery safety, emergency shutdown systems, and fire and gas detection networks in hazardous classified areas.

In high-vibration environments such as mining conveyors, offshore drilling platforms, and heavy press lines, the module’s backplane-mounted form factor within the 1756 chassis provides inherent mechanical stability superior to rack-external communication devices. Combined with conformal coating options available on select ControlLogix hardware, the 1756-EN2TR/C maintains electrical integrity in atmospheres with elevated humidity, corrosive gases, and conductive dust — conditions that rapidly degrade standard commercial-grade networking equipment.

At TOPNLMS, every 1756-EN2TR/C unit undergoes pre-shipment functional verification including communication port integrity testing, firmware version confirmation, and visual inspection for physical damage. Units are sourced from authorized distribution channels and stored in ESD-controlled environments to preserve long-term reliability. Each module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions, providing procurement teams with the assurance required for capital equipment budgeting and maintenance planning.

Rugged Specifications Table

Comprehensive Protection Solutions

A robust industrial control architecture built around the 1756-EN2TR/C extends its reliability through a carefully selected ecosystem of complementary components. The 1756-L85E ControlLogix 5580 controller provides the processing core, while the 1756-PA75 AC power supply ensures stable backplane power delivery even under fluctuating utility conditions common in heavy industrial facilities. For I/O expansion, the 1756-IB16 digital input module and 1756-OB16E digital output module handle field device interfacing, and the 1756-IF16 analog input module captures continuous process variables such as pressure, temperature, and flow rate.

In redundant controller configurations, the 1756-RM2 redundancy module works in tandem with the 1756-EN2TR/C to synchronize controller state across primary and secondary chassis, enabling bumpless switchover during fault conditions. For distributed I/O architectures, the 1734-AENTR POINT I/O EtherNet/IP adapter extends the same DLR-capable network to remote field panels, maintaining ring topology integrity across the full I/O tree. Safety-critical zones incorporate the 1791DS-IB12 GuardLogix safety input module and 1756-L8SP GuardLogix safety controller, with the 1756-EN2TR/C serving as the communication bridge that keeps safety data flowing across the network without latency compromise. In applications requiring serial legacy device integration, the 1756-MVI communication module provides protocol conversion, ensuring that older field instruments remain accessible within the modern EtherNet/IP architecture.

Application in Critical Infrastructure

In upstream oil and gas operations, the 1756-EN2TR/C is deployed in wellhead control panels and pipeline SCADA nodes where network redundancy is mandated by functional safety standards including IEC 61511. Its DLR fault recovery capability ensures that emergency shutdown system (ESD) commands reach field actuators within the response time budgets defined in the safety instrumented system (SIS) design. Offshore platform installations benefit from the module’s wide operating temperature range and vibration tolerance, which allow it to function reliably in environments subject to constant mechanical stress from wave motion and rotating machinery.

In coal and mineral processing plants, the 1756-EN2TR/C manages communication between crusher control panels, conveyor drive systems, and central control rooms, maintaining data integrity in environments saturated with conductive dust and high-frequency vibration from heavy crushing equipment. Power generation facilities — including thermal, hydroelectric, and wind farm installations — rely on the module’s EMI immunity to sustain clean communication signals in proximity to high-voltage switchgear and large rotating generators. Municipal water treatment plants deploy the 1756-EN2TR/C in pump station control panels and chemical dosing systems, where continuous uptime is a regulatory requirement and network faults can directly impact public health infrastructure. In steel and aluminum smelting operations, the module’s thermal tolerance supports reliable operation in areas adjacent to furnaces and casting lines where ambient temperatures routinely exceed standard industrial equipment ratings.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
The 12-month warranty provided by TOPNLMS covers functional failures attributable to manufacturing defects or component-level faults under normal operating conditions. If a 1756-EN2TR/C unit fails within the warranty period, TOPNLMS will provide a replacement unit or full refund following fault verification. Warranty claims are processed through direct contact with our technical team at [email protected].

Q2: How is each unit tested before shipment?
Every 1756-EN2TR/C unit undergoes a pre-shipment inspection protocol that includes communication port continuity testing, firmware version verification, visual inspection for physical damage, and ESD-safe packaging. Units that do not pass functional verification are quarantined and not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 1756-EN2TR/C compatible with my existing ControlLogix chassis and firmware?
The 1756-EN2TR/C is compatible with all standard 1756 ControlLogix chassis configurations (4-slot through 17-slot) and is supported by Logix Designer (Studio 5000) firmware version 20.x and above. Revision /C is a current production revision. For specific firmware compatibility questions related to your controller series (1756-L7x or 1756-L8x), contact our technical team with your existing system details for a compatibility confirmation before ordering.

Q4: Can TOPNLMS support long-term supply and emergency replacement requirements?
Yes. TOPNLMS maintains standing inventory of high-demand ControlLogix communication modules including the 1756-EN2TR/C to support both planned maintenance schedules and emergency breakdown replacement scenarios. We offer expedited shipping to minimize plant downtime, and our procurement team can assist with multi-unit blanket orders for facilities requiring guaranteed spare parts availability. Contact us at [email protected] or +86 18359293191 to discuss your supply continuity requirements.
