Allen-Bradley 1756-EN2T/C Original Industrial Spare ControlLogix Compatible

Product Overview

Allen-Bradley 1756-EN2T/C Original Industrial Spare ControlLogix Compatible: System Stability and Industrial Spare Parts Maintenance Value

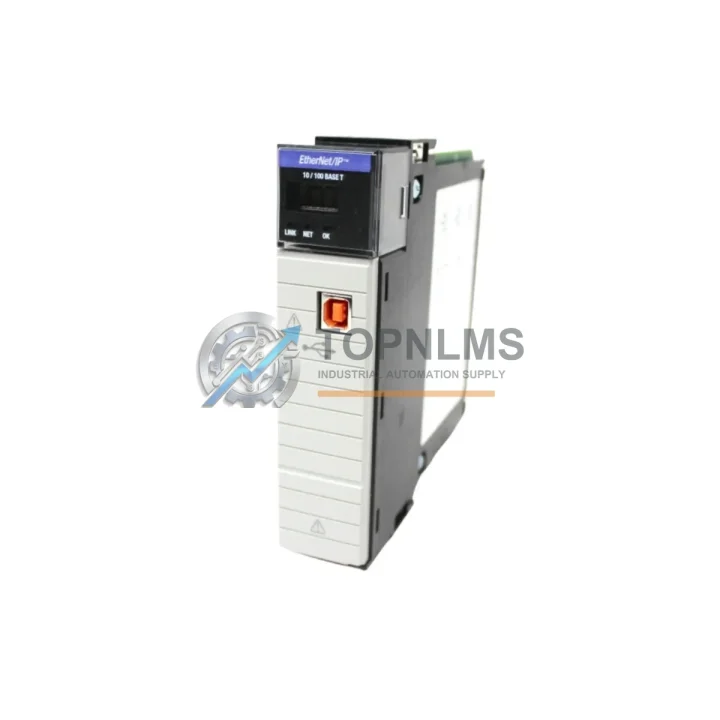

The Allen-Bradley 1756-EN2T/C is a dual-port EtherNet/IP communication module designed for the ControlLogix 1756 chassis platform. In modern manufacturing environments — from automotive assembly lines to chemical processing plants and discrete manufacturing cells — this module serves as the backbone of real-time Ethernet communication between PLCs, HMIs, drives, and supervisory systems. Maintaining an original, tested spare of the 1756-EN2T/C is not merely a procurement decision; it is a cornerstone of any credible preventive maintenance and business continuity strategy.

Unplanned downtime caused by a failed communication module can cascade rapidly across an entire production cell. When the 1756-EN2T/C fails, the ControlLogix controller loses its primary Ethernet path, severing communication with SCADA systems, remote I/O adapters, and peer controllers. Recovery time without a pre-staged spare can extend from hours to days, depending on supply chain lead times. Stocking an original 1756-EN2T/C eliminates that risk entirely and restores system communication within minutes of a fault event.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for a ControlLogix-based control system extends well beyond replacing a single module. When scheduling a planned shutdown or responding to an unplanned fault involving the 1756-EN2T/C, experienced maintenance engineers use the opportunity to inspect and verify the condition of all interdependent components within the same chassis and electrical circuit.

Begin with the 1756-PA75 or 1756-PB75 power supply module — the chassis power supply is the first component to stress-test during any communication fault investigation, as voltage sag or ripple on the 5 VDC backplane rail can cause intermittent module resets that mimic network faults. Verify output voltages under load and replace if the unit is beyond its recommended service interval.

Next, inspect the 1756-L74 or 1756-L75 ControlLogix controller seated in the same chassis. A communication module fault can sometimes be traced to a controller firmware mismatch or a corrupted project file rather than a hardware failure. Confirm firmware revision compatibility between the controller and the 1756-EN2T/C before swapping hardware.

Check all 1756-IB16 digital input modules and 1756-OB16E digital output modules in the chassis for diagnostic faults. A failing I/O module can generate excessive backplane traffic that degrades communication module performance. Review the module status indicators and RSLogix 5000 / Studio 5000 diagnostic trees for any latched faults.

Inspect the Ethernet patch cables and managed switch ports connected to the 1756-EN2T/C. Industrial-grade Cat5e or Cat6 cables with shielded RJ-45 connectors should be used in environments with high electromagnetic interference. A degraded cable or a failing switch port can cause CRC errors and packet loss that are often misdiagnosed as module failures. If the facility uses a Stratix 5700 or Stratix 8000 managed Ethernet switch, review the switch port statistics for error counters before condemning the communication module.

For systems that include remote I/O via 1734 POINT I/O adapters (1734-AENT) or 1738 ArmorPOINT I/O, verify that the EtherNet/IP connection counts on the replacement 1756-EN2T/C are within the module’s supported connection limits. Exceeding the connection budget is a common configuration error during module replacement that results in partial I/O loss.

Finally, review the condition of the 1756 chassis backplane connectors and the module locking tabs. Oxidized backplane contacts or a module that is not fully seated can cause intermittent communication faults that are difficult to reproduce during bench testing. Clean contacts with approved contact cleaner and verify positive module engagement before closing the control cabinet.

Strategic Replacement Solutions

The 1756-EN2T/C is a direct replacement for earlier revisions including the 1756-EN2T/A and 1756-EN2T/B. It is also a functional upgrade path from the legacy 1756-ENET and 1756-ENBT modules, offering significantly higher connection counts, dual-port topology support, and Device Level Ring (DLR) capability that the earlier single-port modules cannot provide.

For facilities operating legacy ControlLogix systems originally commissioned with 1756-ENBT modules, migrating to the 1756-EN2T/C provides immediate benefits: the dual-port architecture enables linear or ring network topologies without requiring an external managed switch at every node, reducing both hardware cost and network complexity. The improved connection count — up to 256 Class 1 connections versus 64 on the 1756-ENBT — eliminates the connection budget constraints that often force engineers to add additional communication modules to aging systems.

When replacing a failed 1756-EN2T in a live system, the module swap procedure is straightforward: export the module configuration from Studio 5000, remove the faulted module with the chassis powered (hot-swap capable), insert the replacement 1756-EN2T/C, and allow the controller to automatically download the stored configuration. No chassis power cycle is required, minimizing production interruption to under five minutes in most installations.

All units supplied by TOPNLMS are sourced as original Allen-Bradley components, individually tested for backplane communication integrity and Ethernet port functionality prior to shipment. Each module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.
