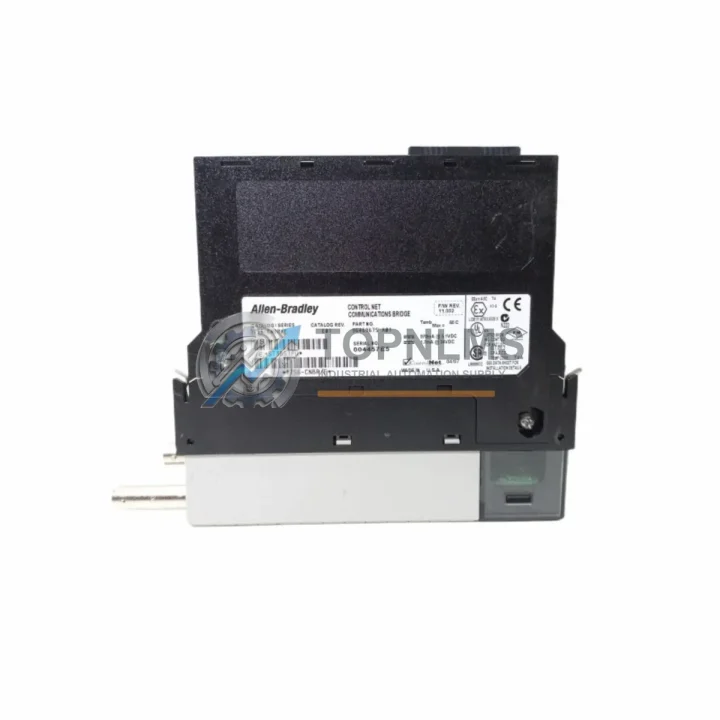

Allen-Bradley 1756-CNBR/E Original Industrial Spare ControlLogix

Product Overview

Allen-Bradley 1756-CNBR/E Original Industrial Spare ControlLogix: System Stability and Industrial Spare Maintenance Value

The Allen-Bradley 1756-CNBR/E is a ControlNet Bridge Module designed for the ControlLogix 1756 platform, Series E revision. As a critical communication backbone component, this module enables deterministic, high-speed ControlNet network connectivity between ControlLogix chassis and field devices, remote I/O racks, and distributed control nodes. In manufacturing environments where unplanned downtime translates directly into production loss, maintaining a verified original spare of the 1756-CNBR/E is not optional — it is a fundamental pillar of any responsible maintenance strategy.

Industrial facilities running ControlLogix-based control systems depend on the ControlNet bridge layer to sustain real-time communication between the controller backplane and the broader automation network. A failed or degraded 1756-CNBR/E can isolate entire I/O subsystems, interrupt PLC scan cycles, and trigger cascading faults across production lines. Sourcing a pre-tested, original replacement module from a reliable supplier eliminates the uncertainty of emergency procurement and dramatically reduces mean time to repair (MTTR) during critical outages.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for ControlLogix-based systems extends well beyond replacing a single module. When scheduling a planned inspection or responding to a ControlNet communication fault, maintenance engineers should treat the 1756-CNBR/E replacement as the starting point of a broader system health audit.

Begin with the power infrastructure. The 1756-PA72 or 1756-PB72 power supply modules that feed the ControlLogix chassis should be inspected for output voltage stability and thermal performance. A marginal power supply is a common root cause of intermittent communication faults that are often misdiagnosed as bridge module failures. While the chassis is open, verify the seating and status indicators of all installed 1756-EN2T or 1756-EN2TR EtherNet/IP communication modules — these frequently share the same backplane power budget and can exhibit instability when a neighboring module draws excessive current.

Next, inspect the ControlNet coaxial cable terminations and trunk line taps connected to the 1756-CNBR/E. Damaged BNC connectors, improperly terminated coax segments, or missing 75-ohm terminators are frequent causes of network degradation that will persist even after a module swap. If the facility uses fiber-optic ControlNet media, inspect the 1786-RPFM or 1786-RPCD repeater modules for signal integrity.

For the I/O subsystem, this is an ideal time to audit the 1756-IB16 digital input modules and 1756-OB16E digital output modules installed in remote chassis connected via ControlNet. Check for blown output channels, sticky input bits, or modules reporting configuration faults in the controller diagnostic log. Similarly, inspect any 1756-IF16 analog input modules for drift or calibration errors — analog signal degradation is often masked until a full system restart forces re-initialization.

Do not overlook the 1756-L7x or 1756-L8x controller module itself. Verify that the controller firmware revision is compatible with the Series E revision of the 1756-CNBR/E and that the ControlNet scheduled connection parameters in Studio 5000 are correctly configured for the updated module. Maintaining a spare 1784-CF128 CompactFlash card with a current firmware image and project backup is a low-cost insurance policy against controller recovery delays.

Finally, inspect the 1756-TBS6H terminal base units and any 1492-CABLE series pre-wired cables connecting field devices to the I/O modules. Loose terminal connections and degraded cable insulation are leading causes of intermittent faults in high-vibration industrial environments. A complete inspection cycle that addresses all of these components — not just the bridge module — is the hallmark of a mature industrial maintenance program.

Strategic Replacement Solutions

The 1756-CNBR/E Series E is a later-revision replacement for earlier Series A through D variants of the same module. Facilities still operating original Series A or B units should prioritize upgrading to Series E, which incorporates enhanced EMI shielding, improved firmware diagnostics, and extended operating temperature tolerance. The Series E revision is backward-compatible with all existing ControlNet network configurations and requires no changes to the Studio 5000 project file beyond a module properties update.

For plants managing aging ControlLogix systems originally commissioned in the early 2000s, the 1756-CNBR/E represents a cost-effective path to extending system life without a full platform migration. Replacing worn or end-of-life bridge modules with original Series E units preserves the existing ControlNet topology, retains all programmed scheduled and unscheduled connection parameters, and avoids the engineering cost and production risk associated with a controller platform upgrade.

Procurement teams should consider stocking a minimum of one spare 1756-CNBR/E per ControlNet network segment in facilities where ControlNet is the primary I/O communication backbone. For multi-line plants with three or more ControlLogix chassis per production zone, a two-unit buffer stock is recommended. Sourcing from TOPNLMS ensures that each unit is individually tested, serialized, and shipped with a 12-month warranty — providing the documentation trail required for ISO 9001-compliant maintenance records.

Support FAQ

Q1: Is the 1756-CNBR/E Series E compatible with my existing ControlNet network without reconfiguration?
Yes. The Series E revision is fully backward-compatible with all prior series of the 1756-CNBR/E. After physical installation, update the module properties in Studio 5000 to reflect the Series E revision and download the updated project. No changes to ControlNet scheduled bandwidth allocation or connection parameters are required.

Q2: How is each unit tested before shipment?
Every 1756-CNBR/E shipped from TOPNLMS undergoes bench-level power-on testing, backplane communication verification, and ControlNet port functional checks. Units that fail any test stage are quarantined and not shipped. A test record is available upon request for quality-assurance documentation purposes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can I use this module as a direct field replacement without taking the controller offline?
The 1756-CNBR/E supports hot-swap insertion in ControlLogix chassis with the controller in Run mode, subject to the ControlNet network entering a brief re-keying cycle. However, TOPNLMS recommends performing module replacement during a scheduled maintenance window to allow full ControlNet network re-initialization and connection verification before returning the system to production.
