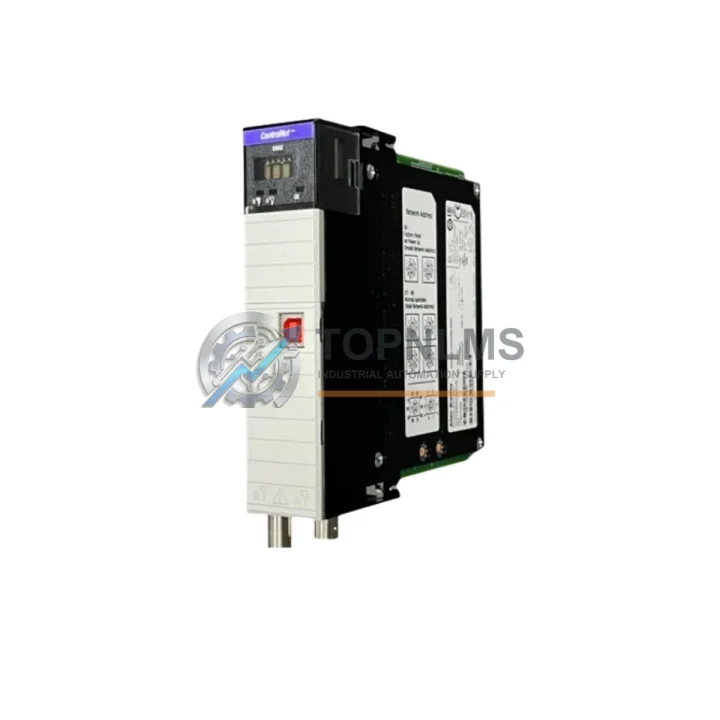

Allen-Bradley 1756-CN2/C Ruggedized ControlNet Module for Harsh Environments

Product Overview

Allen-Bradley 1756-CN2/C Ruggedized ControlNet Module for Harsh Environments

In the most demanding industrial environments — where temperature swings are extreme, electromagnetic interference is constant, vibration never stops, and production cannot afford a single unplanned halt — the Allen-Bradley 1756-CN2/C ControlNet Bridge Module stands as a cornerstone of reliable network communication. Designed for the ControlLogix platform, this single-slot module delivers deterministic, high-speed ControlNet connectivity that keeps your automation architecture intact even when the plant floor pushes hardware to its limits.

Whether your facility operates in oil and gas processing, heavy metallurgy, mining extraction, power generation, or continuous chemical production, the 1756-CN2/C provides the communication backbone that ties together controllers, I/O subsystems, and field devices without compromise. Its rugged construction and proven compatibility with the ControlLogix chassis make it the preferred choice for maintenance engineers who need a drop-in replacement that restores full network integrity with zero configuration drift.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-CN2/C does not operate in isolation — it is one critical node in a broader control architecture that must be maintained holistically to ensure plant-wide resilience. When performing a scheduled inspection or emergency replacement of this ControlNet bridge module, experienced maintenance teams simultaneously audit the surrounding hardware to prevent cascading failures.

The 1756-L74 ControlLogix controller paired with this module should be inspected for firmware currency and battery health; an aging controller battery is a silent risk that can cause unexpected program loss during a power event. Alongside the controller, the 1756-PA75 power supply module deserves close attention — voltage ripple and thermal stress in harsh environments accelerate capacitor degradation, and a failing power supply will destabilize the entire chassis before any fault code appears.

On the network side, the ControlNet coaxial trunk cable and BNC tap connectors are frequent failure points in high-vibration environments such as mining conveyors or steel mill rolling lines. Replacing aged RG-6 coaxial segments and verifying termination resistors at both ends of the ControlNet trunk is standard practice whenever the 1756-CN2/C is serviced. For facilities running redundant ControlNet media, both the primary and secondary BNC ports must be tested independently.

Within the same ControlLogix chassis, 1756-IB16 digital input modules and 1756-OB16E digital output modules are common companions that share the backplane with the CN2/C. Dust ingress and humidity in poorly sealed control cabinets can cause intermittent I/O faults that are often misdiagnosed as network issues — a thorough cabinet inspection including door gasket integrity and filter mat condition is recommended during any CN2/C replacement event.

For facilities using 1756-EN2T EtherNet/IP bridge modules alongside ControlNet infrastructure, verifying that both network bridges are running compatible firmware versions prevents subtle interoperability issues that only surface under high network load. Similarly, 1756-DNB DeviceNet bridge modules in mixed-protocol architectures should be checked for node address conflicts whenever the ControlNet segment is reconfigured.

Signal integrity in harsh electromagnetic environments is further protected by 1492-AIFM analog interface modules and dedicated signal isolators installed between field transmitters and the ControlLogix I/O rack. In high-voltage switchgear rooms or near large variable frequency drives, these isolation barriers prevent ground loops and transient spikes from corrupting analog signals that feed the controller through the ControlNet backbone.

Finally, the 1756-RM2 redundancy module is a strategic companion for critical process applications where the ControlLogix system must achieve controller-level redundancy. Ensuring the redundancy module firmware is synchronized with the CN2/C firmware version is a mandatory step in any planned maintenance window for safety-critical installations.

Application in Critical Infrastructure

The Allen-Bradley 1756-CN2/C is deployed across the most demanding sectors of global industry. In oil and gas upstream and midstream operations, it provides the deterministic communication layer between wellhead controllers and central SCADA systems, where network latency cannot be tolerated and module replacement must be completed within a single maintenance shift to avoid production penalties.

In electric power generation and grid substations, the module’s ATEX Zone 2 certification and wide operating temperature range make it suitable for outdoor switchgear enclosures and turbine control rooms where ambient conditions vary dramatically between seasons. Power plant operators rely on the ControlNet architecture’s scheduled and unscheduled bandwidth allocation to guarantee that protection relay data reaches the controller within defined cycle times regardless of network traffic load.

In mining and mineral processing, where conveyor systems, crushers, and flotation cells generate continuous mechanical vibration and airborne conductive dust, the 1756-CN2/C’s robust BNC connector design and sealed module housing maintain signal integrity where lesser communication hardware fails within months. Maintenance teams in these environments typically stock at least one spare 1756-CN2/C per ControlNet segment as a standard inventory policy, given the cost of unplanned downtime measured in tons of lost production per hour.

In water and wastewater treatment facilities, the module enables reliable communication between pump station PLCs and central treatment plant controllers across ControlNet segments that may span hundreds of meters. The deterministic nature of ControlNet ensures that chemical dosing commands and flow control setpoints are delivered with consistent timing, which is essential for regulatory compliance in municipal water systems.

In automotive and heavy manufacturing, the 1756-CN2/C connects robotic welding cells, press lines, and assembly conveyors into a unified ControlLogix network where production sequencing depends on sub-millisecond communication reliability. A single failed bridge module can halt an entire production line, making rapid spare availability and verified replacement units a non-negotiable requirement for plant maintenance managers.
