Allen-Bradley 1756-CMS1B1 Ruggedized Compute Module for Harsh Environments

Product Overview

Allen-Bradley 1756-CMS1B1 Ruggedized Compute Module for Harsh Environments

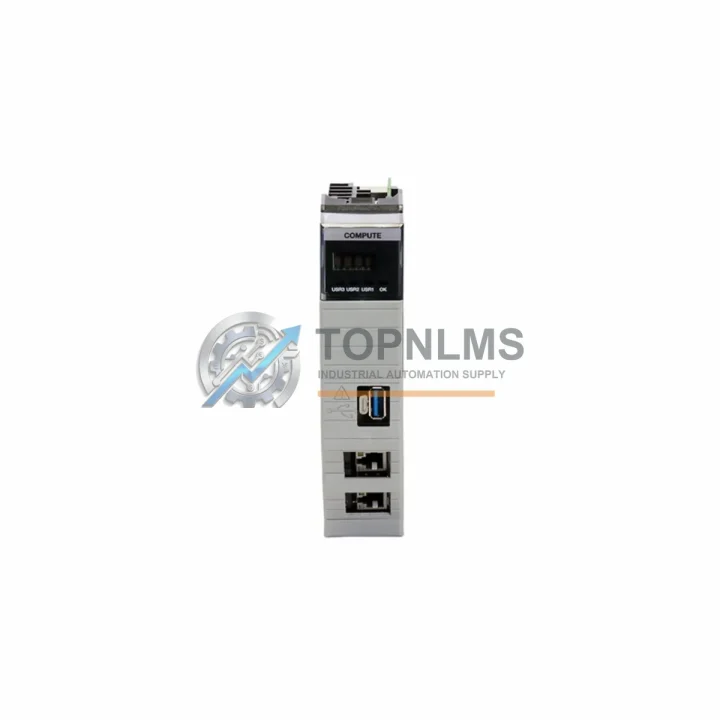

The Allen-Bradley 1756-CMS1B1 is a high-performance Compute Module engineered for the ControlLogix 1756 platform — one of the most trusted PLC architectures deployed across global critical infrastructure. Designed to deliver industrial resilience in the most demanding operational environments, the 1756-CMS1B1 maintains stable, uninterrupted processing performance under conditions of extreme temperature variation, high humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference (EMI). Whether installed in a coastal petrochemical refinery, an underground mining control room, a high-voltage power substation, or a continuous-process steel mill, this module is built to keep your control system running without compromise.

As a core compute resource within the ControlLogix chassis, the 1756-CMS1B1 works in close coordination with the 1756-L8 series ControlLogix controllers, providing supplementary processing capacity that offloads computational demand from the primary CPU. This architecture is particularly valuable in large-scale distributed control applications where scan time optimization and deterministic response are non-negotiable. The module slots directly into any standard 1756 chassis — including the 1756-A4, 1756-A7, 1756-A10, and 1756-A17 — and communicates natively over the ControlLogix backplane without additional configuration overhead.

In high-vibration environments such as compressor stations, rotating machinery platforms, and heavy press lines, the 1756-CMS1B1’s ruggedized PCB construction and conformal-coated circuitry provide reliable protection against mechanical stress and condensation ingress. The module meets IEC 61131-2 environmental standards for industrial control equipment, ensuring it can withstand the thermal cycling and shock loads common in foundry, cement, and mineral processing applications.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-CMS1B1 does not operate in isolation — it is a critical node within a broader ControlLogix ecosystem designed for system-wide reliability. In a typical heavy-industry control cabinet, this compute module works alongside the 1756-EN2T EtherNet/IP communication module, which provides high-speed, deterministic network connectivity to SCADA systems and HMI panels over industrial Ethernet. For applications requiring DeviceNet or ControlNet integration, the 1756-DNB and 1756-CNB modules extend the system’s reach to field-level devices including variable frequency drives (VFDs), motor starters, and remote I/O racks.

Reliable power delivery is foundational to compute module stability. The 1756-PA75R redundant power supply ensures that even in the event of a primary power failure, the 1756-CMS1B1 and its associated 1756-L85E controller continue operating without interruption — a critical requirement in continuous-process industries where unplanned downtime carries significant financial and safety consequences. For installations in hazardous classified areas (Zone 1 or Zone 2), the 1756-CMS1B1 is typically paired with IS (intrinsically safe) barriers and the 1756-IB16 digital input module, which provides galvanically isolated field signal conditioning.

On the I/O side, the 1756-OB16E digital output module and 1756-IF16 analog input module are commonly deployed in the same chassis to handle process variable acquisition and actuator control. In applications involving high-speed motion control — such as servo-driven packaging lines or precision CNC machining centers — the 1756-CMS1B1’s compute offload capability directly supports the 1756-M02AE servo drive interface module, reducing latency in motion command execution. Safety-rated applications may also incorporate the 1756-L8SP GuardLogix safety controller within the same chassis architecture, with the 1756-CMS1B1 providing additional processing headroom for non-safety logic tasks.

Application in Critical Infrastructure

Across the world’s most demanding industrial sectors, the Allen-Bradley 1756-CMS1B1 has established a proven track record of operational continuity. In upstream oil and gas production facilities, where wellhead control systems must operate reliably in ambient temperatures exceeding 50°C and in the presence of hydrogen sulfide (H₂S) and other corrosive gases, the 1756-CMS1B1’s conformal-coated board construction provides essential protection against chemical attack and moisture ingress.

In coal and hard-rock mining operations, the module is deployed in explosion-proof control enclosures managing conveyor belt systems, ventilation fan drives, and hoisting equipment. The module’s EMI immunity — compliant with IEC 61000-4-3 radiated immunity standards — ensures stable operation even in proximity to high-power variable speed drives and large electric motors that generate significant electromagnetic noise.

Power generation facilities — including thermal, hydroelectric, and nuclear plants — rely on ControlLogix 1756 systems for turbine governor control, boiler management, and balance-of-plant automation. In these environments, the 1756-CMS1B1 supports the high-cycle scan rates required for closed-loop PID control of steam pressure, flow, and temperature, while maintaining the deterministic response times mandated by IEC 61511 functional safety standards.

Municipal water treatment and wastewater management plants deploy the 1756-CMS1B1 in pump station control panels and chemical dosing systems, where the module must operate continuously — 24 hours a day, 365 days a year — with minimal maintenance intervention. Its wide operating temperature range and humidity tolerance make it equally suitable for outdoor pump stations in tropical climates and heated indoor facilities in arctic regions.

In the metallurgical sector — steel mills, aluminum smelters, and copper refineries — the 1756-CMS1B1 manages process control for electric arc furnaces, rolling mills, and continuous casting lines. These environments present some of the most severe EMI conditions in industry, generated by high-current bus bars, thyristor drives, and induction heating equipment. The module’s robust EMC design ensures control system integrity is maintained even under these extreme electrical stress conditions.

Security & Quality FAQ

Q1: Does the 1756-CMS1B1 come with a warranty?
Yes. Every 1756-CMS1B1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions. Our technical team provides post-sale support to assist with installation, commissioning, and any warranty claims throughout the coverage period.

Q2: How is the module tested before shipment?
All units undergo a multi-stage pre-shipment inspection process that includes visual inspection for physical damage, power-on functional verification, firmware version confirmation, and communication interface testing. Surplus-new and refurbished units are additionally subjected to burn-in testing to screen for early-life failures before dispatch. A test report is available upon request.

Q3: Is the 1756-CMS1B1 compatible with my existing ControlLogix system?
The 1756-CMS1B1 is designed for direct installation into any standard Allen-Bradley 1756 series chassis. It is compatible with the full range of ControlLogix controllers including the 1756-L71, 1756-L73, 1756-L75, 1756-L82E, and 1756-L85E. Compatibility with specific firmware versions and Studio 5000 Logix Designer software releases should be confirmed against Rockwell Automation’s product compatibility matrix. Our technical team can assist with compatibility verification prior to purchase.

Q4: Can TOPNLMS support long-term or repeat supply of the 1756-CMS1B1?
Yes. TOPNLMS maintains dedicated inventory reserves for high-demand ControlLogix components including the 1756-CMS1B1, supporting both immediate replacement needs and planned maintenance schedules. For customers managing multi-site operations or long-term service contracts, we offer framework supply agreements with guaranteed lead times and price stability. Contact our team to discuss your procurement requirements.
