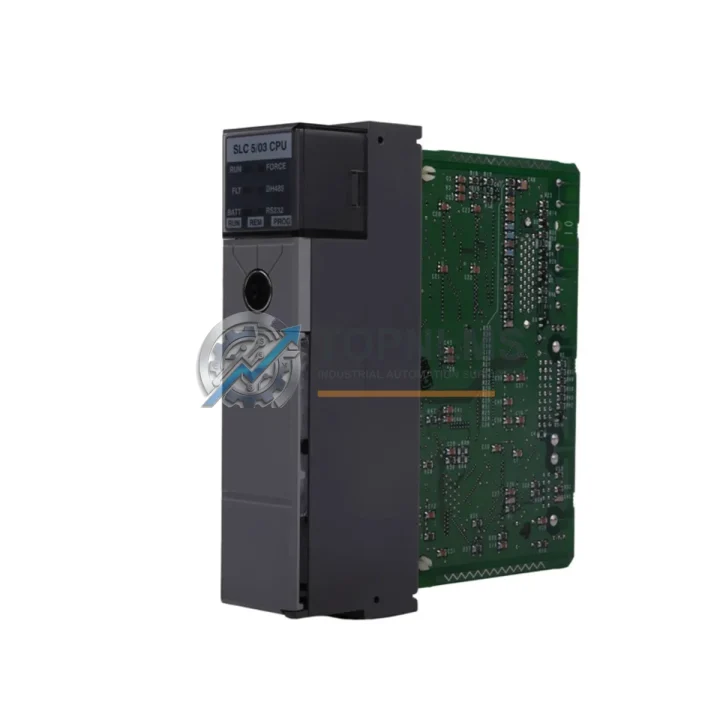

Allen-Bradley 1747-L543 Replacement for SLC 5/04

Product Overview

Allen-Bradley 1747-L543 Replacement for SLC 5/04: Seamless Migration & Upgrade

The Allen-Bradley 1747-L543 is the SLC 5/04 series processor module featuring 64K user memory and native Data Highway Plus (DH+) communication capability. As Rockwell Automation has progressively phased out the SLC 500 platform in favor of the ControlLogix and CompactLogix families, many facilities operating legacy SLC 5/04 systems now face the critical challenge of sourcing reliable replacement processors to sustain production continuity. TOPNLMS supplies the 1747-L543 as a tested, verified drop-in replacement for existing SLC 5/04 racks, enabling your engineering team to restore system operation without rewriting ladder logic or redesigning the control cabinet.

Whether your plant is running a standalone SLC 5/04 rack or a distributed architecture with multiple 1746 I/O chassis linked over DH+, the 1747-L543 slots directly into the 1746-A4, 1746-A7, 1746-A10, or 1746-A13 backplane without mechanical modification. The processor retains the same memory map, I/O addressing scheme, and RSLogix 500 programming environment as the original unit, which means your existing .RSS project files can be downloaded immediately after installation. This dramatically reduces commissioning time and eliminates the risk of logic transcription errors that often accompany forced platform migrations.

For sites that must maintain DH+ network topology — connecting multiple SLC racks, PanelView HMI terminals, or legacy MicroLogix 1100 nodes — the 1747-L543’s onboard DH+ port operates at 57.6K, 115.2K, or 230.4K baud, fully compatible with existing 1747-C13 or 1747-C20 DH+ cables and the 1784-KTX or 1784-PKTX communication cards used for programming. No gateway or protocol converter is required.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SLC 5/04 processor replacement rarely involves the CPU alone. In practice, the 1747-L543 is deployed alongside a range of supporting modules that must be verified for compatibility or replaced in parallel. The 1746-IB16 and 1746-OB16 digital I/O modules are the most common companions in SLC 500 racks, and both remain fully addressable by the 1747-L543 without any slot reassignment. Analog signal conditioning is typically handled by the 1746-NI4 or 1746-NO4I modules; these retain their existing channel scaling and calibration data when the processor is swapped, provided the memory module — typically a 1747-M13 or 1747-M15 EEPROM — is transferred from the outgoing unit to the replacement processor before power-up.

Communication infrastructure is equally important. Sites using a 1747-SDN DeviceNet Scanner module to manage distributed I/O nodes, or a 1747-SCNR ControlNet Scanner for high-speed deterministic I/O, will find that the 1747-L543 supports both scanner types in the same rack without firmware changes. For facilities that rely on a 1747-AIC isolated link coupler to segment DH+ segments or connect to a 1784-KTX programming interface, the existing wiring and termination resistors remain valid.

Where the control cabinet also houses a PanelView 550 or PanelView 600 HMI communicating over DH+, the 1747-L543’s Channel 0 DH+ port maintains the same node address and baud rate as the outgoing processor, so the HMI application requires no modification. Similarly, if a MicroLogix 1100 or MicroLogix 1500 is networked as a peer node on the same DH+ segment, peer-to-peer MSG instructions in the existing ladder program continue to function without editing. For sites transitioning toward Ethernet connectivity, a 1761-NET-ENI serial-to-Ethernet interface can be attached to Channel 1 (RS-232) of the 1747-L543 to enable remote monitoring via RSLinx Classic or FactoryTalk View SE without disrupting the DH+ backbone.

Retrofit Guidance FAQ

Q: Can I install the 1747-L543 without modifying my existing ladder logic?
Yes. The 1747-L543 uses the same instruction set and memory map as all SLC 5/04 processors. Download your existing .RSS file directly from RSLogix 500 after installation. No rung edits are required unless you are also expanding I/O capacity.

Q: Will my existing DH+ wiring and node addresses remain valid?
Yes. The DH+ port on Channel 0 supports the same node address range (0–31 octal) and baud rates as the original unit. Set the node address switches on the front of the module to match the outgoing processor before powering up the rack.

Q: How do I transfer the program from the failed processor to the replacement?
If the original processor is still partially functional, upload the project via RSLogix 500 before removal. If the processor has failed completely, restore from your last saved .RSS backup or from the 1747-M13/M15 EEPROM memory module if one was installed. TOPNLMS recommends always maintaining an offline backup of your SLC program.

Q: Is the 1747-L543 compatible with my 1746-P2 power supply?
Yes. All 1746-P series power supplies (P1, P2, P3, P4) are compatible with the 1747-L543. No power supply replacement is required during a like-for-like processor swap.

Q: Can I use this processor with a 1746-A13 chassis that also contains specialty modules?
Yes. Specialty modules such as the 1746-HSCE high-speed counter, 1746-QS stepper controller, and 1746-BAS BASIC module are all supported in the same chassis as the 1747-L543, provided they are configured correctly in the RSLogix 500 I/O configuration tree.

Q: What programming cable do I need?
For DH+ programming, use a 1784-KTX or 1784-PKTX card with a 1747-C13 cable. For RS-232 direct connection, use a 1747-CP3 cable connected to Channel 1. USB-to-serial adapters with FTDI chipsets are generally compatible with RSLinx Classic drivers.

Warranty Assurance

Every 1747-L543 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a functional verification process that includes power-on self-test confirmation, communication port integrity check, and memory read/write validation. Units that do not pass all test criteria are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit or issue a full refund within the warranty period, subject to inspection of the returned module. Our technical support team is available to assist with installation questions, RSLogix 500 configuration guidance, and compatibility verification before and after purchase. Typical order processing time is 1–3 business days, with express shipping options available for urgent breakdown situations. We ship from Xiamen, China, with DHL, FedEx, and UPS express services covering most destinations within 3–7 business days.

For bulk procurement, OEM integrators, and system integrators managing multi-site SLC 500 fleets, TOPNLMS offers volume pricing and dedicated account management. Contact our sales team to discuss stocking agreements and priority fulfillment arrangements.
