Allen-Bradley 1747-L543/C Replacement for SLC 5/04

Product Overview

Allen-Bradley 1747-L543/C Replacement for SLC 5/04: Smooth Transition & Legacy System Compatibility

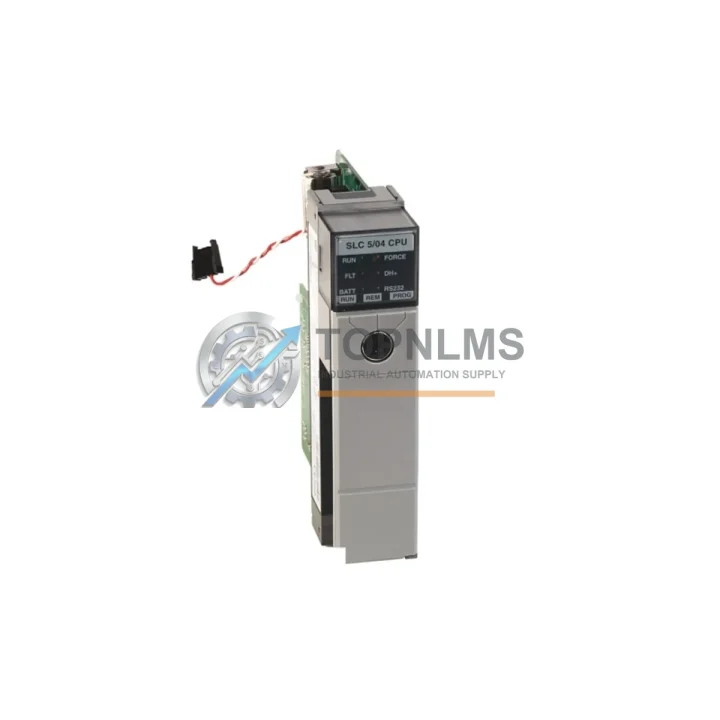

The Allen-Bradley 1747-L543/C is a 16K-word SLC 5/04 processor from Rockwell Automation’s SLC 500 series — a platform that has powered discrete manufacturing, material handling, and process control systems for decades. As Rockwell Automation has moved toward end-of-life status for many SLC 500 components, facilities running legacy SLC 5/04 racks face increasing pressure to source verified replacement units or plan a structured migration path. TOPNLMS supplies the 1747-L543/C as a tested, ready-to-ship replacement to minimize unplanned downtime and support both emergency swap-outs and planned retrofit projects.

Whether your plant is replacing a failed processor in an existing SLC 500 rack or executing a phased migration from an older SLC 5/03 (1747-L533) or SLC 5/02 (1747-L524) system, the 1747-L543/C slots directly into the 1746 modular chassis without mechanical modification. The processor retains the same DIN-rail-compatible form factor and uses the standard 1746 backplane, meaning existing I/O modules — including 1746-IB16 digital input cards, 1746-OB16 digital output cards, and 1746-NI4 analog input modules — remain fully compatible without rewiring.

Communication continuity is a critical concern during any control system upgrade. The 1747-L543/C supports both DH+ (Data Highway Plus) and RS-232 DF1 protocols natively, allowing it to integrate seamlessly into existing plant networks where SCADA systems, HMI panels such as the PanelView 550 or PanelView 600, and peer PLCs communicate over DH+ links. If your facility uses a 1747-KE or 1747-KFC15 communication module for DH-485 or ControlNet bridging, those modules continue to operate without firmware changes.

For sites running RSLogix 500 programs, the 1747-L543/C is fully compatible with existing .RSS project files. Program upload and download require only a 1747-CP3 or 1747-UIC USB-to-DH+ programming cable connected to the processor’s Channel 0 RS-232 port. No re-compilation or logic restructuring is needed for a direct processor swap, which dramatically reduces commissioning time on the plant floor.

Power supply compatibility is another key consideration. The 1747-L543/C operates within the standard 1746 chassis power budget and is compatible with existing 1746-P1, 1746-P2, and 1746-P4 power supply modules. No power infrastructure changes are required for a like-for-like replacement, preserving control cabinet layout and reducing installation labor.

For facilities planning a longer-term migration toward ControlLogix or CompactLogix platforms, the 1747-L543/C serves as a stable interim solution that keeps production running while migration engineering is completed. Rockwell’s migration tools support converting SLC 500 ladder logic to Studio 5000 Logix Designer format, but many plants prefer to maintain the SLC 500 architecture for specific machine cells where the cost and risk of full migration outweigh the benefits. In those cases, a verified 1747-L543/C replacement extends the operational life of the existing system without architectural disruption.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1747-L543/C installation rarely involves the processor alone. During a typical SLC 500 retrofit or emergency replacement, engineers commonly address adjacent components to ensure system integrity. The 1746-A10 modular chassis provides the physical backbone for the processor and all I/O cards; if the existing chassis shows signs of backplane wear or slot damage, replacing it alongside the processor eliminates a common source of intermittent faults. The 1746-P2 power supply module should be inspected and load-tested during any processor swap, as aging power supplies are a frequent root cause of processor resets and communication errors.

On the I/O side, 1746-IB16 and 1746-OB16 digital modules are the most common cards found alongside the SLC 5/04 in discrete automation applications. If field wiring terminations are being disturbed during the processor replacement, it is good practice to inspect terminal block integrity on these modules. For analog signal conditioning, the 1746-NI4 analog input module and 1746-NO4I analog output module are standard companions in process control applications and should be verified for calibration after any processor change.

Communication infrastructure upgrades often accompany processor replacements. The 1747-UIC USB-to-DH+ interface cable is the modern replacement for the older 1747-CP3 serial programming cable and is required for programming the 1747-L543/C from a laptop without a legacy RS-232 port. For plants maintaining DH+ network topology, the 1784-PKTX or 1784-U2DHP communication cards provide reliable PC-to-DH+ connectivity for SCADA and historian integration. If the site uses a PanelView 600 or PanelView Plus 600 HMI, DH+ communication to the new processor requires no configuration changes beyond verifying the node address assignment.

For facilities considering a longer migration path toward ControlLogix, the 1756-L71 ControlLogix processor and 1756-DHRIO communication module can be introduced in parallel with the existing SLC 500 system, allowing phased migration without production interruption. Signal isolators and terminal multiplier modules such as the 1492-AIFM series are also commonly specified during SLC 500 cabinet retrofits to improve field wiring organization and signal integrity.

Retrofit Guidance FAQ

Q: Can I swap the 1747-L543/C directly into my existing SLC 500 rack without rewiring?
A: Yes. The 1747-L543/C installs in Slot 0 of any 1746-series chassis. All 1746 I/O modules remain in place with no wiring changes required.

Q: Will my existing RSLogix 500 program run without modification?
A: In most cases, yes. Upload your existing program from the old processor before removal, then download it to the 1747-L543/C. Verify I/O configuration and communication settings match your application before going live.

Q: The old processor used DH-485. The 1747-L543/C uses DH+. Is this a problem?
A: The 1747-L543/C’s Channel 0 is DH+, not DH-485. If your network uses DH-485, you will need a 1747-AIC link coupler or a 1747-KE communication module to bridge the protocols. Channel 1 (RS-232 DF1) can also be used for point-to-point SCADA connections.

Q: How do I connect a programming laptop to the 1747-L543/C?
A: Use the 1747-UIC USB-to-DH+ cable connected to Channel 0, or a standard RS-232 cable to Channel 1 with DF1 Full-Duplex protocol selected in RSLogix 500.

Q: Does the replacement processor fit in the same cabinet space?
A: Yes. The 1747-L543/C has the same physical dimensions as all SLC 500 processors and occupies Slot 0 of the 1746 chassis with no additional panel space required.

Q: What if my application requires more memory than 16K words?
A: The 1747-L543/C provides 16K words of user memory, which is sufficient for the vast majority of SLC 500 applications. If your program exceeds this, consider the 1747-L553 (32K words) or plan a migration to the ControlLogix platform.

Warranty Assurance

Every 1747-L543/C unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on testing, communication port checks, and memory integrity validation. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

If a unit develops a fault within the warranty period, TOPNLMS provides replacement support with priority processing. Our technical team is available to assist with installation questions, communication configuration, and compatibility verification before and after purchase. We maintain stock of the 1747-L543/C and related SLC 500 components to support both emergency replacement orders and planned procurement schedules.

Orders are processed and dispatched from our Xiamen warehouse, with international shipping available to most destinations. Lead times for in-stock units are typically 1–3 business days. For large-quantity orders or project-based procurement, contact our sales team for volume pricing and delivery scheduling.
