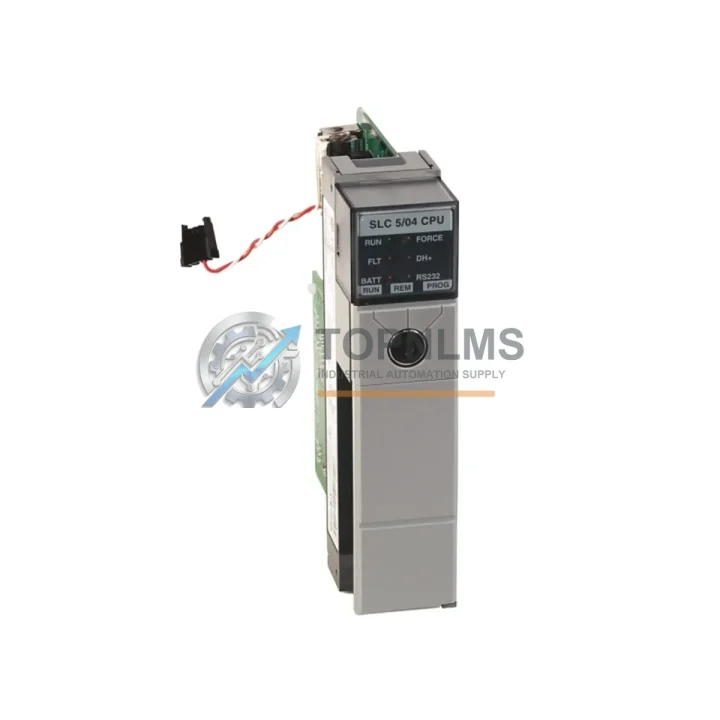

Allen-Bradley 1747-L542/C Replacement for SLC 5/04

Product Overview

Allen-Bradley 1747-L542/C Replacement for SLC 5/04: Smooth Migration & Legacy System Compatibility

The Allen-Bradley 1747-L542/C is a 16K-word user memory SLC 5/04 CPU module from Rockwell Automation’s SLC 500 series — a platform that has powered discrete manufacturing, material handling, and process control applications for decades. As this model reaches end-of-life and spare inventory becomes increasingly scarce, plant engineers and maintenance teams face mounting pressure to source verified replacements or plan a structured migration path before an unplanned outage forces a costly emergency shutdown.

TOPNLMS supplies the 1747-L542/C as a tested, ready-to-ship replacement unit with a 12-month warranty, supporting both like-for-like swap scenarios and phased migration projects. Whether your facility is running a standalone SLC 5/04 rack or integrating it into a larger ControlLogix or CompactLogix architecture, our team can support your transition with verified hardware, pre-shipment functional testing, and responsive technical coordination.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1747-L542/C replacement rarely involves the CPU module alone. In most SLC 500 installations, the migration process touches several interconnected components that must be evaluated and — where necessary — sourced alongside the processor.

The 1746-P2 and 1746-P4 power supply modules are the most common companion items. Aging power supplies in the same chassis often exhibit voltage ripple or thermal degradation that can destabilize a newly installed CPU, so proactive replacement during the same maintenance window is strongly recommended. Similarly, the 1746-IB16 and 1746-OB16 digital I/O modules that populate the SLC 500 rack should be inspected for terminal wear and firmware compatibility with the replacement processor’s Series C revision.

For facilities that rely on DH+ network communications to connect the SLC 5/04 to SCADA systems, operator panels, or other PLCs, the 1747-SDN DeviceNet Scanner and 1747-KE RS-232/DH485 Interface Module are frequently part of the same rack assembly and should be verified for compatibility. If the site uses a PanelView 550 or PanelView 600 HMI communicating over DH+ to the SLC 5/04, no HMI program changes are required when performing a like-for-like CPU swap — the DH+ node address is preserved in the replacement unit’s configuration.

Customers migrating from the SLC 5/04 to a CompactLogix L30ER or L33ER as a long-term modernization step will need to account for the transition from RSLogix 500 to Studio 5000 Logix Designer, and should plan for I/O rewiring to 1769-series CompactLogix I/O modules. In these cases, the 1747-L542/C serves as a validated interim solution — maintaining production continuity while the migration project is engineered and scheduled, avoiding the risk of a forced cutover under emergency conditions.

For sites where the SLC 5/04 communicates with variable frequency drives via RS-232 or DH+, the PowerFlex 40 and PowerFlex 400 drives with their existing parameter configurations are unaffected by a CPU module swap, provided the communication port settings on the replacement 1747-L542/C are configured to match the original unit before commissioning.

Finally, customers performing the swap in the field will require a 1747-CP3 programming cable (USB to RS-232 DH-485) to connect a laptop running RSLogix 500 to the replacement CPU for program upload, verification, and any necessary firmware update prior to going live.

Retrofit Guidance FAQ

Q: Do I need to rewire any I/O terminals when replacing the 1747-L542/C?
A: No. The CPU module does not connect directly to field wiring. All I/O wiring terminates at the 1746-series I/O modules in the chassis, which remain undisturbed during a CPU swap. Only the CPU module in Slot 0 is replaced.

Q: Will my existing RSLogix 500 program run on the replacement unit without modification?
A: Yes, provided the replacement unit is the same Series (C) and memory size (16K words). The .RSS project file is uploaded via the 1747-CP3 cable and verified online before returning the system to production.

Q: Is the DH+ node address preserved after replacement?
A: The DH+ node address is a software-configurable parameter stored in the CPU. It must be set to match the original unit’s address during commissioning. TOPNLMS recommends documenting the original node address before removing the failed unit.

Q: What communication protocols does the 1747-L542/C support?
A: The module supports DH+ on Port 1 and RS-232/DF1 Full-Duplex, Half-Duplex Master/Slave, and ASCII on Port 2. Both ports are fully functional on the replacement unit and require no protocol conversion.

Q: How much physical space does the replacement require in the control cabinet?
A: The 1747-L542/C occupies Slot 0 of any standard SLC 500 chassis (1746-A4 through 1746-A13). No additional panel space, DIN rail, or mounting hardware is required beyond what the original installation used.

Q: Can I use this replacement as a bridge while planning a full migration to ControlLogix or CompactLogix?
A: Yes. This is one of the most common use cases. The 1747-L542/C replacement stabilizes the existing SLC 500 system and eliminates emergency downtime risk while the engineering team plans and executes a structured migration to a modern Logix platform on a controlled schedule.

Warranty Assurance

Every 1747-L542/C unit shipped by TOPNLMS is covered by a 12-month warranty against functional failure under normal industrial operating conditions. Prior to shipment, each unit undergoes a pre-shipment functional test that verifies power-on behavior, communication port operation, memory integrity, and I/O bus communication. Units that do not pass testing are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the customer’s preference and the nature of the fault. Our average response time for warranty inquiries is within one business day. Customers are not required to return the failed unit before a replacement is dispatched in confirmed warranty cases, minimizing additional downtime exposure.

Stock is maintained in Xiamen, China, with express international shipping available to most industrial regions including Southeast Asia, the Middle East, Europe, and the Americas. Lead time for in-stock units is typically 3–7 business days door-to-door via DHL or FedEx, with tracking provided at time of dispatch.

For volume procurement, OEM integrators, and MRO stocking programs, TOPNLMS offers priority allocation and consolidated invoicing. Contact our team to discuss your project requirements and confirm current stock availability before placing a critical-path order.
