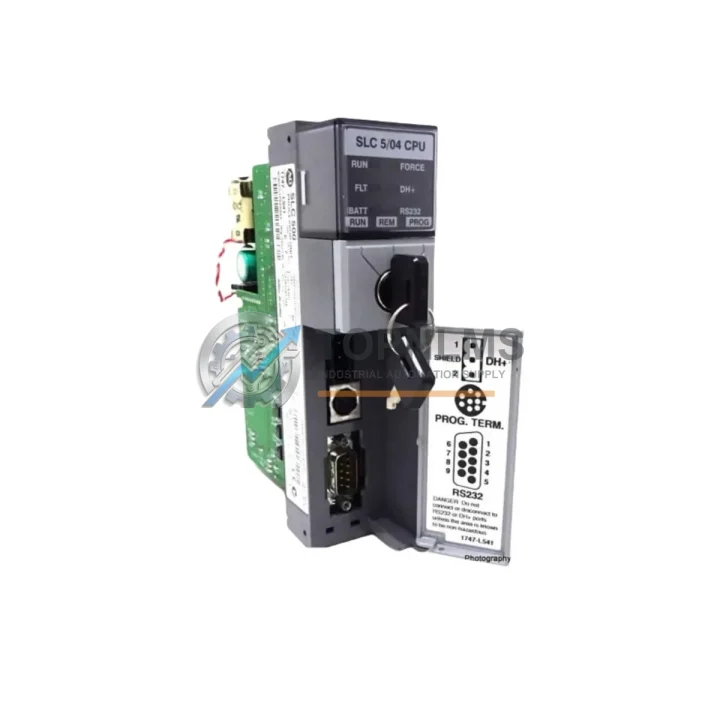

Allen-Bradley 1747-L541 Original Industrial Spare SLC 5/04

Product Overview

Allen-Bradley 1747-L541 Original Industrial Spare SLC 5/04: System Stability and Industrial Spare Parts Maintenance Value

The Allen-Bradley 1747-L541 is a genuine SLC 5/04 series programmable logic controller processor designed for demanding industrial automation environments. With 16K of user memory, integrated DH+ and RS-232C communication ports, and full compatibility with the SLC 500 modular chassis family, the 1747-L541 remains one of the most widely deployed processors in legacy manufacturing, material handling, water treatment, and process control systems worldwide. Maintaining a verified original spare in your inventory is not merely a procurement decision — it is a system stability strategy that directly reduces unplanned downtime risk and protects the operational continuity of your production line.

For facilities running SLC 5/04-based control architectures, the 1747-L541 is the processor at the heart of the control cabinet. When this unit fails — whether due to firmware corruption, capacitor aging, power surge damage, or end-of-life component degradation — the entire controlled process halts. Having a pre-tested, shelf-ready replacement on hand transforms a potential multi-day outage into a sub-hour swap, preserving production schedules and avoiding costly emergency procurement at premium prices.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance program for any SLC 5/04-based control system extends well beyond the processor itself. During scheduled shutdowns or annual inspections, maintenance teams should treat the 1747-L541 replacement as the anchor of a broader cabinet audit. The processor communicates over DH+ to remote I/O adapters and peer controllers — meaning the integrity of the 1747-KE or 1747-SDN DeviceNet scanner modules installed in adjacent chassis slots directly affects processor performance and network stability. These communication modules should be inspected for firmware currency and connector wear at the same interval as the processor.

The SLC 500 chassis power supply — typically a 1746-P2 or 1746-P4 — is a high-wear component that degrades silently over years of continuous operation. Capacitor bulging, output voltage drift, and thermal cycling fatigue are common failure modes that precede processor faults. Stocking a spare power supply alongside the 1747-L541 processor is a best practice that many maintenance planners overlook until the first unplanned outage occurs. Similarly, the 1746-IB16 and 1746-OB16 digital I/O modules installed in the same chassis should be inspected for terminal corrosion, blown output transistors, and LED indicator anomalies during any processor-level maintenance window.

For systems using analog process signals, the 1746-NI4 or 1746-NO4I analog I/O modules warrant calibration verification whenever the processor is replaced or restarted, as analog scaling parameters are stored in processor memory and must be confirmed against field instrumentation. If the control cabinet includes a 1747-AIC isolated link coupler for DH+ segment bridging, its termination resistors and cable shielding should be checked to prevent communication errors after processor swap.

Panel-level components also deserve attention during any SLC 5/04 maintenance event. Terminal blocks, particularly Phoenix Contact or Weidmüller-style spring-clamp types, should be inspected for loose conductors and oxidation. Fuse modules protecting 24VDC control circuits are frequently overlooked until a nuisance trip occurs. If the cabinet includes a 1747-PIC or 1784-U2DHP USB-to-DH+ interface for programming access, verifying driver compatibility with the current RSLogix 500 installation prevents delays during the replacement procedure. For facilities with HMI panels — such as a PanelView 600 or PanelView Plus 700 — confirming that the DH+ node address and baud rate settings match the replacement processor configuration before going live eliminates a common commissioning error.

Strategic Replacement Solutions

The 1747-L541 is a direct replacement for earlier SLC 5/04 processor revisions, including Series A and Series B units, and is backward compatible with all SLC 500 chassis and I/O modules. For facilities migrating from the 1747-L40 (SLC 5/03) platform, the 1747-L541 offers expanded memory and DH+ native support without requiring chassis or I/O module changes, making it the preferred upgrade path for extending the operational life of existing control infrastructure by five to ten years.

When replacing a failed processor in the field, the procedure is straightforward: back up the existing program via RSLogix 500 if the processor is still partially functional, remove the failed unit from the chassis, insert the 1747-L541, restore the program from backup or from a previously archived .RSS file, verify I/O configuration and communication node addresses, and return the system to run mode. Total replacement time for a prepared technician with a pre-tested spare is typically under 30 minutes, compared to days of lead time for emergency procurement of an untested unit from an unknown source.

All 1747-L541 units supplied by TOPNLMS are functionally tested prior to shipment, including memory read/write verification, communication port integrity checks, and power-on self-test confirmation. Units are shipped in anti-static packaging with inspection documentation. This pre-shipment testing protocol eliminates the risk of receiving a defective spare and ensures that your replacement unit is ready for immediate installation upon arrival.

Support FAQ

Q1: Is the 1747-L541 compatible with my existing SLC 500 chassis and I/O modules?
Yes. The 1747-L541 is fully compatible with all SLC 500 modular chassis (1746-A4 through 1746-A13) and all SLC 500 I/O modules, including digital, analog, and specialty modules. No hardware changes to the chassis or I/O rack are required when replacing an earlier SLC 5/04 processor revision.

Q2: How do I verify the replacement processor before installing it in a live system?
All units from TOPNLMS are pre-tested before shipment. Upon receipt, you can perform a bench test using RSLogix 500 connected via the RS-232C Channel 0 port with a 1747-CP3 cable or USB adapter. Load your archived program, verify I/O configuration, and confirm communication parameters before installing in the production chassis.

Q3: What is the recommended spare parts inventory strategy for SLC 5/04 systems?
For critical production lines, maintain at minimum one 1747-L541 processor and one compatible power supply (1746-P2 or 1746-P4) as cold spares. For high-availability systems, consider a warm spare chassis with pre-loaded program. Review spare inventory annually and replace any unit that has been in storage for more than five years to ensure capacitor and battery integrity.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers functional defects identified during normal installation and operation. If a unit fails within the warranty period, contact TOPNLMS with your order reference and a description of the fault. We will arrange inspection and replacement shipment. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. All warranty claims are processed within 5 business days of unit receipt.
