Allen-Bradley 1747-L541/C Ruggedized CPU for Harsh Environments

Product Overview

Allen-Bradley 1747-L541/C Ruggedized CPU for Harsh Environments

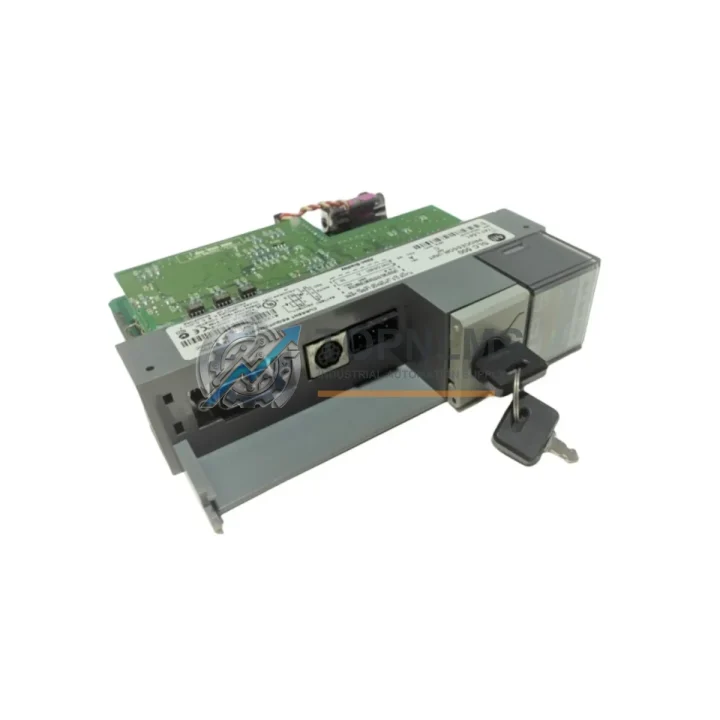

The Allen-Bradley 1747-L541/C is a high-performance SLC 500 Series C Modular CPU engineered for continuous, fault-tolerant operation in the most demanding industrial environments. With 16K words of program memory and a robust hardware architecture, this CPU module is purpose-built to sustain reliable control in facilities where temperature extremes, humidity, vibration, airborne particulates, and electromagnetic interference are everyday realities. Whether deployed in a petrochemical processing plant, a deep-shaft mining operation, a municipal water treatment facility, or a high-throughput steel rolling mill, the 1747-L541/C delivers the deterministic scan-cycle performance and system integrity that mission-critical automation demands.

Designed as the processing core of the Allen-Bradley SLC 500 modular platform, the 1747-L541/C operates within a 1746 I/O chassis alongside a full ecosystem of compatible modules. Its instruction set supports ladder logic, data manipulation, PID control, and high-speed counter functions, making it equally capable of managing discrete manufacturing lines, continuous process loops, and hybrid control architectures. The CPU communicates natively over the DF1 protocol via its built-in RS-232 port and integrates seamlessly with 1747-SDN DeviceNet Scanner modules, 1747-KE DH-485 to RS-232C Interface modules, and 1747-AIC Advanced Interface Converters for multi-drop network topologies. In larger system architectures, it pairs with 1747-SN Remote I/O Scanner modules to extend control reach across distributed field panels without sacrificing scan-cycle determinism.

In harsh-environment deployments, the 1747-L541/C is typically installed alongside 1746-IB16 24VDC digital input modules and 1746-OB16 digital output modules for field device interfacing, 1746-NI4 analog input modules for process variable acquisition, and 1746-NO4I analog output modules for final control element positioning. Power integrity is maintained through the 1746-P4 power supply module, which provides regulated 5VDC and 24VDC rails with built-in overcurrent and overvoltage protection — a critical safeguard in environments prone to power line transients from large motor drives or welding equipment. Where functional safety is a system-level requirement, the 1747-L541/C control architecture is often complemented by dedicated safety relay modules and hardwired emergency-stop circuits to meet IEC 62061 or ISO 13849 performance level targets.

The module’s conformal-coated circuit board provides a meaningful degree of protection against condensation and corrosive atmospheres, extending service life in coastal, chemical, and high-humidity plant environments. Its metal backplane connector and robust chassis-mount design resist the micro-vibration fatigue that can compromise solder joints and edge connectors in equipment subject to continuous mechanical vibration from pumps, compressors, or conveyor drives. The non-volatile battery-backed RAM retains program and data table contents through power interruptions, ensuring that the control system resumes from a known state after an unplanned outage — a capability of particular value in continuous-process industries where a cold restart carries significant production and safety implications.

From a procurement standpoint, the 1747-L541/C represents a strategically important spare-parts investment for any facility running an SLC 500-based control system. Allen-Bradley’s SLC 500 platform has an extensive installed base across global manufacturing, and while Rockwell Automation has transitioned its primary development focus to the ControlLogix and CompactLogix families, the SLC 500 installed base remains active and requires ongoing spare-parts support. Maintaining a verified, tested 1747-L541/C on the shelf eliminates the risk of extended unplanned downtime caused by CPU failure — a scenario that can cost tens of thousands of dollars per hour in lost production in high-value process industries.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1747-L541/C is rarely deployed in isolation. In a fully integrated SLC 500 control cabinet, it works in concert with a range of protection, control, and communication modules to form a complete and resilient automation solution. The 1746-P4 power supply provides the regulated DC power backbone, while 1746-IB32 high-density digital input modules aggregate field signals from limit switches, proximity sensors, and pressure switches distributed across the plant floor. On the output side, 1746-OW16 relay output modules drive contactors, solenoid valves, and motor starters with the galvanic isolation necessary to protect the CPU backplane from inductive load transients.

For analog process control, the 1746-NI8 8-channel analog input module acquires 4–20 mA signals from temperature transmitters, flow meters, and level sensors, feeding the 1747-L541/C’s PID instruction blocks for closed-loop regulation. The 1746-NO4I analog output module closes the loop to control valves and variable-speed drives. In facilities where DeviceNet field devices — including smart sensors, valve manifolds, and distributed I/O blocks — are part of the architecture, the 1747-SDN DeviceNet Scanner module extends the CPU’s reach to the device level without consuming additional chassis slots for discrete wiring. Where legacy DH+ network connectivity is required to integrate with existing PanelView operator terminals or other SLC/PLC-5 processors, the 1747-KFC15 ControlNet interface or a 1784-PCMK communication card bridges the protocol gap reliably.

Safety-critical applications in the same control cabinet often incorporate dedicated safety relay modules — such as the Allen-Bradley MSR127RP dual-channel safety relay — to monitor E-stop circuits, light curtains, and two-hand control devices independently of the SLC 500 program logic. This layered approach, combining the 1747-L541/C’s programmable control with hardwired safety monitoring, satisfies the functional safety requirements of machinery directive 2006/42/EC and supports SIL 1–2 risk reduction strategies in process industries.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 1747-L541/C has proven its durability in wellhead control panels, pipeline SCADA remote terminal units, and compressor station automation cabinets where ambient temperatures can swing from sub-zero winter conditions to 50°C summer heat inside unventilated enclosures. Its battery-backed memory ensures that emergency shutdown sequences and permissive logic remain intact through power cycling events common in remote, generator-powered installations.

In underground mining environments, where coal dust, silica particulates, and mechanical shock from blasting operations create an exceptionally hostile operating context, the 1747-L541/C’s robust backplane connector and conformal-coated PCB provide a meaningful service-life advantage over less ruggedized alternatives. It is commonly found controlling conveyor belt systems, ventilation fan drives, and dewatering pump stations in longwall and room-and-pillar mining operations.

Power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — rely on SLC 500 systems for balance-of-plant automation: cooling water pump control, fuel handling conveyors, ash handling systems, and auxiliary equipment sequencing. The 1747-L541/C’s deterministic scan cycle and reliable I/O handling make it well-suited to these applications, where a control system failure can trigger a plant trip with significant grid-stability and revenue implications.

In municipal water and wastewater treatment plants, the 1747-L541/C manages lift station pump sequencing, chemical dosing control, aeration blower modulation, and SCADA data acquisition. Its long service life and broad spare-parts availability make it a preferred choice for utility operators who must maintain aging infrastructure on constrained capital budgets while meeting regulatory compliance requirements for continuous process monitoring and control.

Metallurgical and steel processing facilities present some of the most severe electromagnetic interference environments in industry, with large DC motor drives, arc furnaces, and induction heating systems generating broadband EMI that can disrupt poorly shielded control electronics. The 1747-L541/C’s compliance with IEC 61131-2 EMC immunity standards, combined with proper cabinet grounding and shielded cable practices, ensures stable operation even in these high-interference environments.
