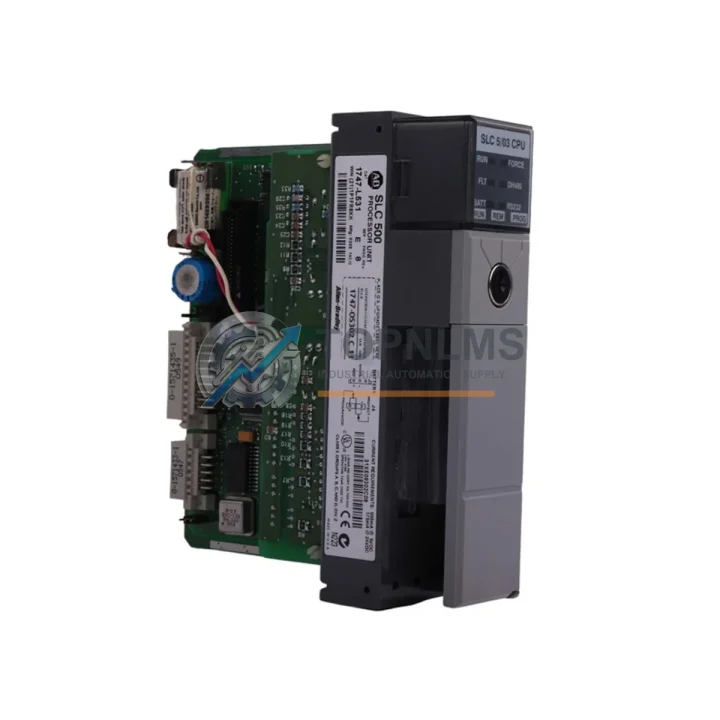

Allen-Bradley 1747-L531 Replacement for SLC 500 Series

Product Overview

Allen-Bradley 1747-L531 Replacement for SLC 500 Series: Seamless Transition & Legacy System Upgrade

The Allen-Bradley 1747-L531 is a core processor module within the SLC 5/03 family of the SLC 500 series — one of the most widely deployed small programmable logic controller platforms in industrial automation history. As this model approaches or has reached end-of-life status, facilities running legacy SLC 500 control systems face increasing pressure to source reliable replacement units or plan a structured migration path. TOPNLMS supplies tested, verified 1747-L531 processor modules with a 12-month warranty, enabling your engineering team to restore operations quickly or execute a phased upgrade without disrupting production.

The 1747-L531 features 8K words of user memory, DH-485 and RS-232 communication ports, and is designed to operate within the standard SLC 500 modular chassis — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 rack configurations. Its compatibility with existing I/O wiring, terminal blocks, and field device connections means that in most direct replacement scenarios, no rewiring is required. The processor retains the same physical footprint and backplane interface as other SLC 5/03 variants, allowing a drop-in swap that minimizes installation time and reduces the risk of wiring errors during changeover.

For facilities migrating from an older SLC 5/01 or SLC 5/02 processor — such as the 1747-L511 or 1747-L524 — the 1747-L531 offers a meaningful capability upgrade while preserving backward compatibility with existing ladder logic programs developed in RSLogix 500. Program files can typically be reloaded with minimal modification, and the DH-485 network topology remains intact, allowing the replacement processor to communicate with existing HMI panels, remote I/O adapters, and peer controllers without reconfiguring the network architecture.

In distributed control environments, the 1747-L531 often operates alongside communication modules such as the 1747-KE (DH-485 to RS-232 interface) or the 1747-SDN (DeviceNet scanner), both of which remain fully compatible with the SLC 5/03 backplane. If your system relies on analog signal conditioning, the 1746-NI4 or 1746-NO4I analog I/O modules continue to function without modification when the processor is replaced. Similarly, digital I/O modules — including the 1746-IB16 and 1746-OB16 — retain their wiring and configuration, reducing commissioning time to processor initialization and program verification rather than a full system re-checkout.

Power supply compatibility is another key consideration in SLC 500 processor replacements. The 1746-P1, 1746-P2, and 1746-P4 power supply modules are all compatible with the 1747-L531 and do not require replacement during a processor swap. This is particularly important in retrofit projects where the control cabinet has limited space and the existing power supply is already sized for the installed I/O load. Maintaining the original power supply eliminates the need for panel modifications and keeps the project within a tight maintenance window.

For sites planning a longer-term migration from SLC 500 to a more modern platform — such as the CompactLogix L3x series or MicroLogix 1400 — the 1747-L531 serves as a reliable interim solution that keeps production running while the migration project is scoped, budgeted, and scheduled. During this transition period, the existing RSLogix 500 program can be documented and converted using Rockwell’s migration tools, while the replacement 1747-L531 maintains system availability. This approach is especially common in food and beverage, water treatment, and discrete manufacturing facilities where unplanned downtime carries significant operational cost.

TOPNLMS maintains stock of the 1747-L531 and related SLC 500 components to support both emergency replacement and planned maintenance programs. All units are inspected and functionally tested prior to shipment. Orders are processed promptly, with international shipping available from Xiamen, China. Our technical team can assist with compatibility verification, firmware version matching, and documentation support to ensure a smooth installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SLC 500 processor replacement rarely involves the processor alone. In most field installations, the 1747-L531 is deployed alongside a range of supporting components that must be verified for compatibility or sourced as part of the same maintenance event. The 1746-A7 or 1746-A10 modular chassis provides the backplane into which the processor and all I/O modules are seated; confirming chassis slot availability before ordering ensures the replacement processor can be installed without structural changes to the control cabinet.

Communication continuity is typically maintained through the existing DH-485 network, but sites that require RS-232 connectivity to a SCADA host or HMI — such as a PanelView 550 or PanelView 600 terminal — will benefit from the 1747-L531’s built-in Channel 0 RS-232 port, which eliminates the need for an external 1747-KE communication module in many configurations. For DeviceNet-connected field devices, the 1747-SDN scanner module continues to operate without modification after the processor swap.

Analog signal integrity is preserved through the existing 1746-NI4 analog input or 1746-NO4I analog output modules, which retain their calibration and wiring after a processor replacement. Digital I/O continuity is similarly maintained through modules such as the 1746-IB16 input and 1746-OB16 output cards. In applications where signal isolation is required between field devices and the SLC 500 backplane, signal isolators or barriers already installed in the control cabinet remain unaffected by the processor change.

For programming and commissioning, a 1747-CP3 or compatible RS-232 programming cable is required to connect a laptop running RSLogix 500 to the processor’s Channel 0 port for program upload, verification, and online monitoring during the post-replacement checkout. Ensuring this cable and software are available on-site before the maintenance window begins is a standard best practice that reduces commissioning time significantly.

Retrofit Guidance FAQ

Q: Does replacing the 1747-L531 require rewiring the I/O terminal blocks?
A: No. The 1747-L531 uses the same SLC 500 backplane interface as the 1747-L511 and 1747-L524. All I/O modules and their associated field wiring remain unchanged. Only the processor module is swapped.

Q: Can I reload my existing RSLogix 500 program onto the replacement 1747-L531?
A: Yes. Programs developed for SLC 5/01 and SLC 5/02 processors are generally compatible with the SLC 5/03 after a minor processor type update in RSLogix 500. The instruction set is fully backward compatible, and data file structures are preserved.

Q: Will the DH-485 network topology need to be reconfigured?
A: No. The 1747-L531 retains the same DH-485 node address configuration as the replaced processor. Peer devices on the network — including other SLC 500 controllers, HMI panels, and remote I/O adapters — do not require reconfiguration.

Q: What is the physical installation space requirement?
A: The 1747-L531 occupies one slot in the SLC 500 modular chassis (leftmost slot, slot 0). Its physical dimensions are identical to other SLC 5/03 processors, ensuring a direct fit in any standard 1746-series chassis without panel modifications.

Q: How do I verify firmware version compatibility?
A: TOPNLMS can provide firmware version information for the specific unit shipped upon request. If your application requires a specific firmware revision for compatibility with RSLogix 500 features or communication modules, please specify this at the time of order.

Q: Is the 1747-L531 suitable as a long-term solution, or only as a bridge during migration?
A: Both. For facilities not yet ready to migrate to a newer platform, the 1747-L531 provides a reliable, fully functional replacement that extends the operational life of the existing SLC 500 system. For facilities planning a migration to CompactLogix or MicroLogix, it serves as a stable interim solution while the migration project is executed.

Warranty Assurance

Every 1747-L531 processor module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional inspection to verify power-on operation, communication port integrity, and backplane interface condition. Units that do not meet our quality standards are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing to minimize the impact on your operations. Our after-sales response team is reachable via email and phone, and warranty claims are typically acknowledged within one business day. Replacement units are dispatched from our Xiamen warehouse, with international express shipping options available to reduce lead time.

For procurement teams, the 12-month warranty provides a documented quality assurance commitment that supports internal approval processes and vendor qualification requirements. We can provide warranty certificates and inspection records upon request to support your purchasing documentation.

TOPNLMS maintains ongoing stock of SLC 500 series components to support both emergency replacement and scheduled maintenance programs. Whether you require a single unit for an urgent breakdown or a batch order for a planned maintenance inventory, our team can accommodate your timeline and provide the necessary documentation for your records.
