Allen-Bradley 1747-L20C Replacement Solution for SLC 500

Product Overview

Allen-Bradley 1747-L20C Replacement Solution for SLC 500: Seamless Transition & Compatible Upgrade

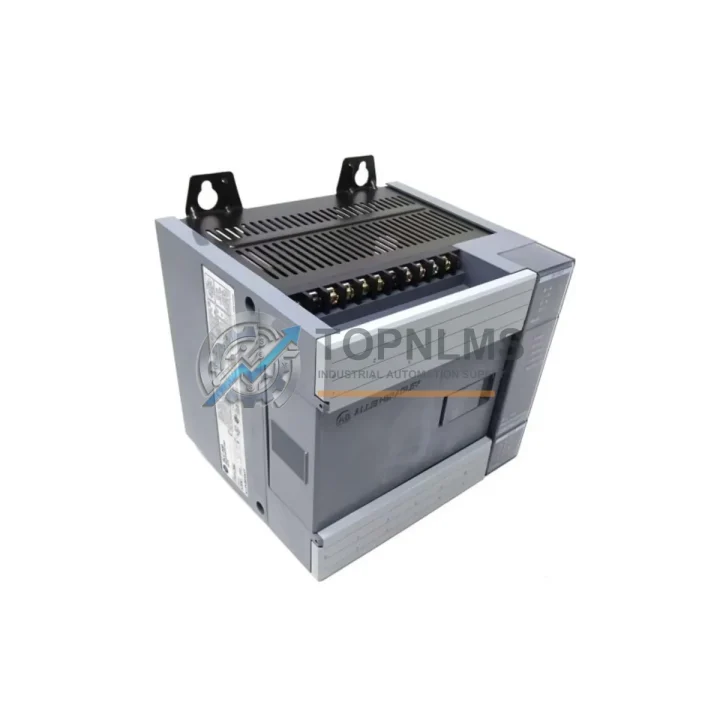

The Allen-Bradley 1747-L20C is a fixed chassis processor unit from the SLC 500 series — one of Rockwell Automation’s most widely deployed small-to-mid-range PLC platforms in manufacturing, material handling, water treatment, and process control applications. As this model has reached end-of-life and is no longer manufactured, facilities running legacy SLC 500 control systems face increasing pressure to source reliable replacement units or plan a structured migration path before critical spares become unavailable.

TOPNLMS maintains verified stock of the 1747-L20C and compatible SLC 500 ecosystem components, enabling your engineering team to execute a drop-in replacement or a phased system upgrade with minimal disruption to production. Each unit is individually tested prior to shipment and backed by a 12-month warranty, giving procurement and maintenance teams the confidence to act decisively when a processor failure occurs or a planned retrofit is scheduled.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1747-L20C replacement or SLC 500 system migration rarely involves the processor alone. In most field scenarios, the engineering team must also evaluate the surrounding control architecture to ensure a smooth cutover with zero unplanned downtime.

For facilities still operating on DH-485 networks, the 1747-PIC (Personal Interface Converter) or the USB-based 1747-UIC programming cable is essential for establishing a connection between the replacement processor and a laptop running RSLogix 500. These cables allow technicians to upload the existing program from a functioning unit or download a previously archived program to the new 1747-L20C without any protocol conversion.

Where the fixed I/O count of the 1747-L20C is insufficient for expanded process requirements, engineers often pair the upgrade with a modular SLC 500 chassis such as the 1746-A4 or 1746-A7 rack, combined with discrete I/O modules like the 1746-IB16 (16-point 24VDC input) or 1746-OB16 (16-point 24VDC output). This approach preserves the existing RSLogix 500 programming environment while expanding I/O capacity without migrating to a completely new platform.

For applications requiring analog signal handling — common in temperature, pressure, or flow control loops — the 1746-NI4 analog input module or 1746-NO4I analog output module integrates directly into the SLC 500 rack. Existing 4–20 mA field wiring can typically be reconnected without modification, significantly reducing commissioning time.

Power supply integrity is critical during any processor swap. If the existing 1746-P2 or 1746-P4 power supply module shows signs of aging — capacitor bulge, output voltage drift, or intermittent faults — it is best practice to replace it concurrently with the processor to avoid a secondary failure shortly after the primary repair. TOPNLMS stocks both power supply variants for this reason.

For sites planning a longer-term migration from SLC 500 to the CompactLogix platform, the 1769-L30ER or 1769-L33ER CompactLogix processor offers a structured upgrade path. Rockwell’s migration tools support program conversion from RSLogix 500 to Studio 5000, and the 1769-IQ16 and 1769-OQ16 CompactLogix I/O modules can be mapped to preserve existing field wiring topology. Signal isolators and terminal block adapters may be required at the cabinet level to bridge legacy wiring standards to the new I/O modules.

In multi-node DH-485 networks, replacing a single node processor requires verifying that the network token-passing sequence remains intact. If the system includes an 1747-SDN DeviceNet Scanner or a 1747-SN Remote I/O Scanner, these modules must be reconfigured to recognize the replacement processor’s node address. TOPNLMS technical support can assist with pre-shipment configuration verification upon request.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing the 1747-L20C?
A: Yes. The 1747-L20C uses standard screw-terminal I/O connections. All existing field wiring — including 24VDC discrete inputs, relay outputs, and AC power feeds — can be reconnected to the replacement unit without modification. Terminal labeling should be documented before removal.

Q: Do I need to reprogram the replacement processor?
A: No reprogramming is required if you have a backup of the original program. Connect via 1747-PIC or 1747-UIC cable, open RSLogix 500 or RSLogix Micro, and download the archived .RSS file to the new unit. If no backup exists, TOPNLMS recommends uploading the program from the original unit before removal if it is still partially functional.

Q: Is the 1747-L20C compatible with DH-485 multi-drop networks?
A: Yes. The integrated DH-485 port supports multi-drop RS-485 networks at up to 19.2 Kbps. Node address is set via onboard DIP switches. Ensure the replacement unit is assigned the same node address as the original to avoid network disruption.

Q: What is the physical installation space requirement?
A: The 1747-L20C is a fixed chassis unit with an integrated power supply and I/O. It mounts on a standard DIN rail or panel surface. The footprint is identical to the original unit, so no cabinet modification or additional mounting hardware is required.

Q: Can I upgrade from the 1747-L20C to a higher-performance SLC 500 processor?
A: Yes. The SLC 5/03 (1747-L531) and SLC 5/04 (1747-L541) modular processors offer expanded memory, EtherNet/IP or DH+ communication, and higher scan rates. Migration requires a modular SLC 500 chassis and power supply, but existing RSLogix 500 programs are fully compatible with minor address remapping.

Q: How long does shipping take?
A: Standard international shipment from Xiamen, China takes 5–10 business days via DHL or FedEx Express. Expedited options are available for urgent plant-down situations. Contact [email protected] for same-day dispatch arrangements.

Warranty Assurance

Every Allen-Bradley 1747-L20C unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment testing protocol includes power-on verification, I/O channel functional check, communication port integrity test, and visual inspection for physical damage or counterfeit indicators.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit dispatch within 3 business days of fault confirmation. Our after-sales team responds to technical inquiries within 24 hours on business days. We support warranty claims via email, WhatsApp, and phone, and our technical staff can assist with remote commissioning guidance for complex retrofit scenarios.

For procurement teams requiring documentation, we provide a test report, packing list, commercial invoice, and certificate of origin with every shipment. Long-term supply agreements and blanket purchase orders are available for MRO and OEM customers maintaining SLC 500 fleets.
