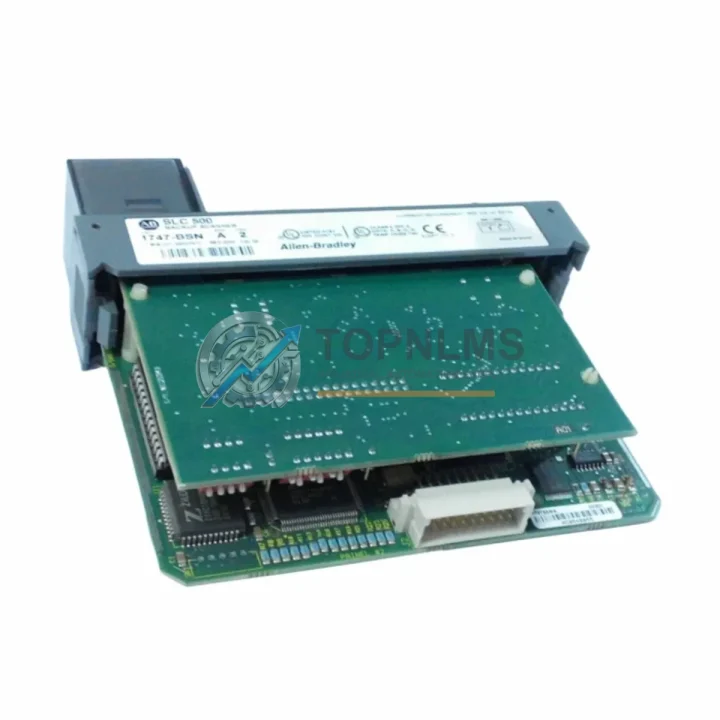

Allen-Bradley 1747-BSN Ruggedized Bus Expansion Node Adapter

Product Overview

Allen-Bradley 1747-BSN Ruggedized Bus Expansion Node Adapter: Industrial Resilience for Harsh Environments

The Allen-Bradley 1747-BSN is a SLC 500 Bus Expansion Node Adapter engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed as a core communication bridge within the SLC 500 modular PLC platform, the 1747-BSN enables remote I/O chassis expansion across distributed control architectures — delivering deterministic data exchange even under conditions of high electromagnetic interference, extreme temperature cycling, mechanical vibration, and airborne particulate contamination. For plant engineers and procurement specialists sourcing reliable spare parts or system expansion components, the 1747-BSN represents a proven, field-hardened solution with a long service history across global process industries.

At TOPNLMS, every 1747-BSN unit is sourced through verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month quality warranty — giving maintenance teams and system integrators the confidence to deploy with minimal commissioning risk.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1747-BSN does not operate in isolation — it is the communication backbone that holds a distributed SLC 500 control system together. In a typical hardened control cabinet, the 1747-BSN works in concert with the 1747-SN Scanner Node Adapter installed in the primary chassis, forming a matched pair that maintains reliable backplane communication across physically separated I/O racks. This architecture is especially critical in large-footprint facilities where control panels and field I/O must be separated by tens of meters.

Upstream, the SLC 500 processor — such as the 1747-L553 or 1747-L543 CPU module — relies on the 1747-BSN to maintain real-time visibility into remote I/O status. Any interruption in this link can trigger unplanned shutdowns on continuous production lines. The 1747-BSN’s robust backplane interface ensures that digital and analog signals from 1746-IB16 digital input modules, 1746-OB16 digital output modules, and 1746-NI4 analog input modules are transmitted without data loss even in environments with heavy motor-drive switching noise.

In facilities where variable frequency drives — such as the PowerFlex 40 or PowerFlex 70 series — are installed in close proximity to control panels, electromagnetic interference is a persistent threat to communication integrity. The 1747-BSN’s shielded backplane design and compliance with industrial EMC standards make it a dependable choice for these mixed-signal environments. Pairing it with properly grounded 1746-A series expansion chassis and quality DIN-rail mounted terminal blocks further reduces noise coupling into the control bus.

For safety-critical applications, the 1747-BSN is often deployed alongside Allen-Bradley GuardLogix or SMC safety relay modules in hybrid architectures where legacy SLC 500 systems are integrated with modern safety instrumented systems. The node adapter’s deterministic scan cycle ensures that safety-relevant I/O data reaches the processor within defined time windows, supporting functional safety requirements in accordance with IEC 61508 and IEC 62061 frameworks.

Power integrity is equally important. The 1746-P4 or 1746-P7 power supply modules installed in the expansion chassis must deliver stable, regulated voltage to the 1747-BSN and all co-resident I/O modules. TOPNLMS stocks a range of compatible SLC 500 power supplies and I/O modules, enabling customers to source complete expansion rack assemblies from a single, verified supplier — reducing procurement lead time and compatibility risk.

Application in Critical Infrastructure

The Allen-Bradley 1747-BSN has accumulated decades of field deployment across the world’s most demanding industrial sectors. In oil and gas upstream operations, it is used in wellhead control panels and pipeline SCADA systems where ambient temperatures fluctuate widely and vibration from pumping equipment is constant. Its ability to maintain stable backplane communication under these conditions makes it a preferred choice for brownfield system maintenance and life-extension projects.

In underground mining operations, the 1747-BSN is deployed in conveyor control systems and ventilation management panels where coal dust, humidity, and mechanical shock are everyday realities. The module’s sealed backplane connectors and robust PCB construction resist contamination ingress that would compromise lesser components.

Within power generation facilities — including coal-fired, hydroelectric, and combined-cycle gas turbine plants — the 1747-BSN supports distributed I/O architectures for turbine auxiliary systems, cooling water controls, and fuel handling automation. Its deterministic communication cycle is essential for maintaining coordinated control across multiple remote I/O racks in these large, geographically spread installations.

In water and wastewater treatment plants, the 1747-BSN enables remote monitoring of pump stations, chemical dosing systems, and filtration controls from a central SLC 500 processor. Its resistance to high-humidity environments and corrosive chemical atmospheres — when installed in properly rated enclosures — ensures long service intervals with minimal maintenance intervention.

Metallurgical and steel mill applications represent some of the harshest environments for any electronic component. High radiated heat from furnaces, intense electromagnetic fields from induction heating equipment, and constant mechanical vibration from rolling mills all challenge control system reliability. The 1747-BSN’s industrial-grade design and Rockwell Automation’s proven manufacturing standards make it one of the few legacy communication modules trusted for these environments without derating.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 1747-BSN?
All 1747-BSN units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS provides replacement or repair support with priority processing to minimize your downtime. Contact [email protected] to initiate a warranty claim.

Q2: How is each unit tested before shipment?
Every 1747-BSN undergoes pre-shipment inspection including visual examination for physical damage, connector integrity verification, and where applicable, functional bench testing to confirm backplane communication capability. Units that do not meet our quality standards are quarantined and not dispatched. A test report can be provided upon request for critical infrastructure procurement.

Q3: Is the 1747-BSN compatible with all SLC 500 chassis and processor revisions?
The 1747-BSN is designed for use with the full range of SLC 500 modular chassis (1746-A series) and is compatible with SLC 5/03, 5/04, and 5/05 processors. It must be paired with a 1747-SN Scanner Node in the primary chassis. Customers integrating into existing systems should verify firmware revision compatibility with their installed processor. TOPNLMS technical support can assist with compatibility verification prior to purchase.

Q4: Can TOPNLMS support long-term or repeat supply of the 1747-BSN for ongoing maintenance programs?
Yes. TOPNLMS maintains standing inventory of high-demand SLC 500 components including the 1747-BSN to support planned maintenance schedules, emergency sparing, and system expansion projects. We offer volume pricing for blanket orders and can coordinate staged delivery to align with your maintenance windows. Contact our sales team at [email protected] or +86 18359293191 to discuss a supply agreement.
