Allen-Bradley 1747-AICR Replacement/Upgrade for SLC 500

Product Overview

Allen-Bradley 1747-AICR Replacement/Upgrade for SLC 500: Seamless Transition from Legacy DH-485 Networks

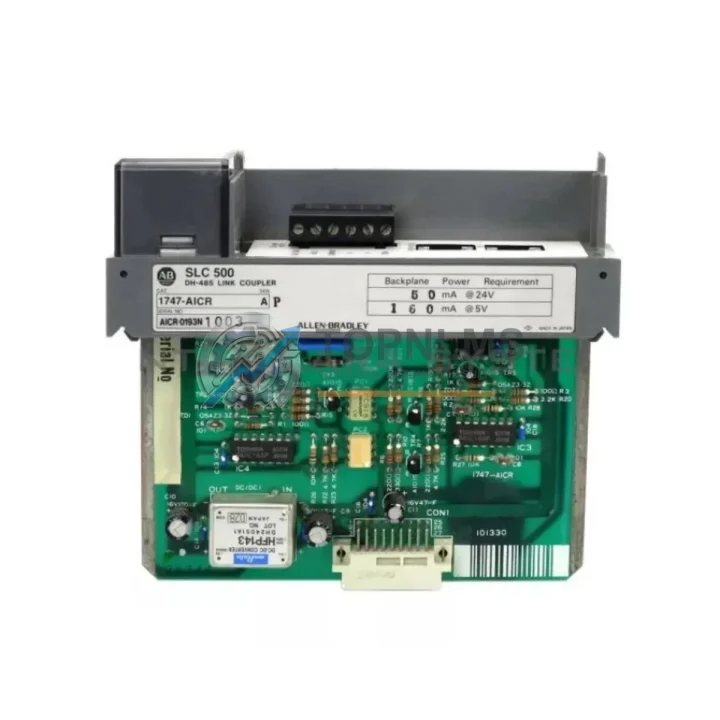

The Allen-Bradley 1747-AICR Isolated Link Coupler is a critical communication interface within the SLC 500 control platform, enabling reliable DH-485 network connectivity between SLC 5/01, SLC 5/02, SLC 5/03, SLC 5/04, and SLC 5/05 processors and field devices. As this module approaches end-of-life and becomes increasingly difficult to source through standard distribution channels, many industrial facilities are facing urgent replacement decisions — often under production pressure with minimal downtime tolerance.

TOPNLMS maintains verified stock of the 1747-AICR and offers a structured migration path for facilities transitioning away from aging SLC 500 architectures. Whether you are performing a like-for-like swap to restore a failed node or executing a phased upgrade toward a ControlLogix or CompactLogix platform, this guide covers the compatibility, wiring, and commissioning considerations your engineering team needs.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SLC 500 network migration rarely involves a single component. In practice, replacing or upgrading the 1747-AICR is one step within a broader system modernization effort. During commissioning and retrofit projects, engineers typically address several interconnected components simultaneously.

On the processor side, facilities running SLC 5/03 or SLC 5/04 CPUs often evaluate whether to retain the existing 1746 I/O chassis or migrate to a 1769 CompactLogix rack. The 1746-A7 or 1746-A10 backplane chassis must be inspected for slot integrity and backplane bus health before reusing it with a replacement coupler. If the chassis shows signs of corrosion or connector wear, a chassis replacement should accompany the coupler swap.

Power supply integrity is equally important. The 1746-P1, 1746-P2, or 1746-P4 power supply modules within the SLC 500 rack should be load-tested before returning the system to production. A marginal power supply can cause intermittent DH-485 communication faults that are easily misdiagnosed as coupler failures.

For facilities using RSLinx Classic or RSLinx Enterprise to bridge DH-485 to Ethernet/IP, the 1761-NET-AIC or 1761-NET-ENI serial-to-Ethernet converters are commonly paired with the 1747-AICR to extend legacy SLC 500 networks into modern SCADA and MES environments. These devices allow engineers to retain existing SLC ladder logic while gaining remote monitoring capability without a full controller migration.

On the I/O side, 1746-IB16, 1746-OB16, and 1746-OW16 digital I/O modules are frequently inspected and replaced as part of the same maintenance window. Analog modules such as the 1746-NI4 or 1746-NO4I should be recalibrated or replaced if signal drift has been observed. Replacing the coupler without verifying I/O module health can result in persistent process alarms after restart.

For sites planning a longer-term migration to ControlLogix, the 1756-DHRIO communication module provides a bridge path, allowing the new ControlLogix controller to communicate directly with existing DH-485 and DH+ devices — including SLC 500 nodes — during a phased cutover. This approach minimizes production risk by allowing parallel operation of old and new systems before full decommissioning.

HMI compatibility should also be reviewed. PanelView 550 and PanelView 600 terminals communicating over DH-485 will continue to operate normally with the 1747-AICR replacement. If the HMI is also being upgraded, the PanelView Plus 6 or PanelView Plus 7 series supports both DH-485 and Ethernet/IP, providing a forward-compatible upgrade path.

Retrofit Guidance FAQ

Q: Does replacing the 1747-AICR require any changes to the SLC 500 ladder logic program?
A: No. The 1747-AICR is a passive network coupler and does not appear as an addressable node in the SLC program. A like-for-like replacement requires no program modifications — simply power down, swap the module, reconnect the DH-485 cables, and restore power.

Q: Can the 1747-AICR be used with both RJ-45 and terminal block DH-485 wiring?
A: Yes. The module supports both connection types. Verify that the existing cable assembly (1747-C13 or equivalent) is in good condition before reuse. Damaged cable shielding is a common source of DH-485 noise after a coupler replacement.

Q: What is the maximum DH-485 network length supported?
A: DH-485 supports up to 1,219 m (4,000 ft) of total network cable with up to 32 nodes. The 1747-AICR does not reduce this specification. Ensure total cable length and node count remain within these limits after any network expansion.

Q: Is the 1747-AICR compatible with third-party DH-485 devices?
A: Yes, provided those devices conform to the DH-485 protocol specification. The isolated design of the AICR variant is particularly beneficial in mixed-vendor environments where ground potential differences between cabinets can cause communication errors.

Q: How should the module be tested before returning the line to production?
A: After installation, use RSLinx Classic to verify that all DH-485 nodes are visible on the network. Confirm that the SLC processor is in Run mode and that all I/O modules report normal status. Run the system for a minimum of 30 minutes under load before signing off on the replacement.

Warranty Assurance

Every 1747-AICR unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including DH-485 signal integrity testing and visual inspection for connector and board condition. Units that do not meet our outgoing quality standard are not shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit at no additional cost. Our technical team is available to assist with installation questions, compatibility verification, and commissioning support via email and phone. We understand that unplanned downtime in industrial environments carries significant operational cost, and our fulfillment process is structured to minimize lead time for urgent replacement orders.

Stock is maintained in Xiamen, China, with express international shipping available to most destinations. Typical dispatch time for in-stock units is 1–2 business days. Tracking information is provided upon shipment.

For volume procurement, spare parts program inquiries, or technical pre-sales support, contact our team directly.
