Allen-Bradley 1747-ACN15 Ruggedized ControlNet Adapter Module

Product Overview

Allen-Bradley 1747-ACN15 Ruggedized ControlNet Adapter Module: Industrial Resilience for Harsh Environments

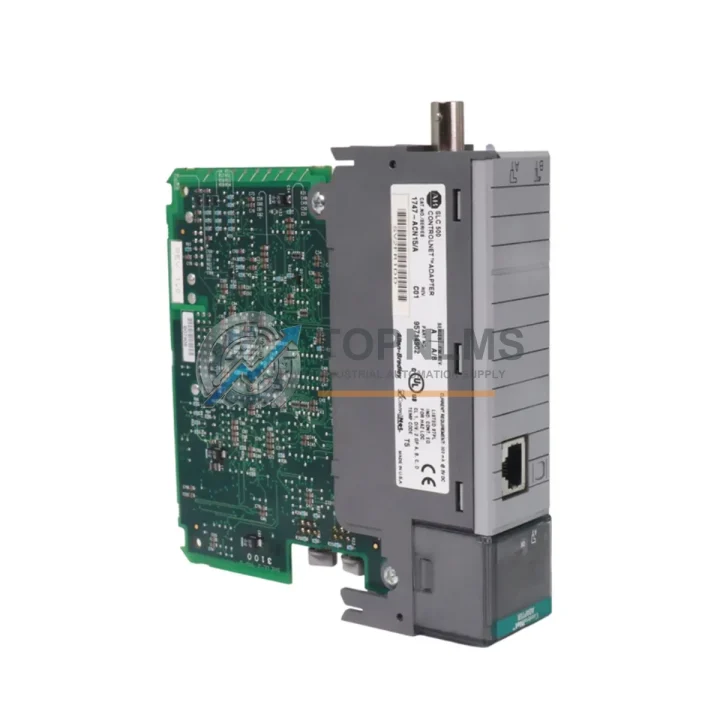

The Allen-Bradley 1747-ACN15 is a ControlNet Adapter Module engineered for the SLC 500 programmable controller platform, delivering deterministic, high-speed network communication in the most demanding industrial environments. Designed to withstand elevated temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the 1747-ACN15 is a cornerstone component for facilities where network integrity and control system uptime are non-negotiable. Whether deployed on a continuous petrochemical production line, a high-vibration mining conveyor system, or a power generation switchgear cabinet, this module maintains reliable ControlNet communication without compromise.

The 1747-ACN15 connects SLC 500 chassis-based I/O to a ControlNet network, enabling the SLC 5/05 processor and compatible Allen-Bradley controllers to exchange real-time data with remote I/O racks, drives, and intelligent field devices across distances up to 1,000 meters per segment. Its dual BNC coaxial port design supports redundant media configurations, a critical feature in safety-critical infrastructure where a single cable fault must never interrupt production. The module’s onboard rotary switches allow straightforward node address configuration without software tools, reducing commissioning time in field environments where laptop access may be restricted.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1747-ACN15 does not operate in isolation — it is the communication backbone that ties together an entire SLC 500 control architecture. In a typical heavy-industry control cabinet, the module works in concert with the 1746-A10 SLC 500 10-slot chassis and the 1747-L553 SLC 5/05 processor, which handles ladder logic execution while the 1747-ACN15 manages all ControlNet I/O scheduling. Digital and analog field signals are collected through 1746-IB16 DC input modules and 1746-OB16 DC output modules, with the adapter ensuring that scan-cycle data is delivered to the processor with deterministic timing — critical in interlock and safety shutdown applications.

For installations requiring analog process control, the 1746-NI4 analog input module and 1746-NO4I analog output module integrate seamlessly within the same chassis, with the 1747-ACN15 bridging their data to upstream DCS or SCADA systems via ControlNet. In drive-intensive environments such as conveyor systems or pump stations, the module communicates directly with PowerFlex 700 variable frequency drives configured as ControlNet nodes, enabling closed-loop speed and torque control without additional gateway hardware.

Power integrity is maintained through 1746-P4 SLC 500 power supply modules, which provide regulated backplane voltage even under fluctuating plant power conditions. For installations in hazardous classified areas or where additional network segmentation is required, 1786-RPA ControlNet repeater modules extend segment reach while maintaining signal quality. Safety-critical zones may also incorporate Allen-Bradley GuardLogix safety controllers communicating over the same ControlNet infrastructure, with the 1747-ACN15 serving as the bridge between legacy SLC 500 I/O and modern safety-rated network segments. Terminal blocks and 1492-CABLE series pre-wired interface cables complete the wiring interface between the SLC chassis and field junction boxes, ensuring a clean, maintainable installation.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 1747-ACN15 is routinely deployed in wellhead control panels and pipeline SCADA outstations where ambient temperatures fluctuate widely between day and night cycles, and where explosive atmosphere classifications demand robust, sealed control cabinet installations. The module’s deterministic ControlNet communication ensures that emergency shutdown (ESD) signals propagate within defined scan-cycle windows, meeting the response-time requirements of SIL-rated safety instrumented systems.

In underground mining operations, the combination of coal dust, methane, mechanical shock from blasting, and high-voltage interference from haulage equipment creates one of the harshest electrical environments in industry. The 1747-ACN15’s coaxial network architecture provides inherent noise immunity compared to twisted-pair alternatives, making it a preferred choice for longwall shearer control systems and conveyor drive coordination networks where milliseconds of communication latency can trigger costly production stoppages.

Power generation facilities — including thermal, hydroelectric, and wind farm substations — rely on SLC 500 platforms for auxiliary control of cooling systems, lubrication circuits, and generator excitation. The 1747-ACN15 enables these distributed I/O racks to remain synchronized with the main control processor across the physical distances typical of turbine hall installations, without the signal degradation that affects Ethernet-based systems in high-EMI generator environments.

Water and wastewater treatment plants operating 24/7 continuous processes depend on the SLC 500 platform’s proven reliability, and the 1747-ACN15 extends that reliability to remote lift stations and chemical dosing skids connected via ControlNet. Metallurgical and steel mill applications similarly benefit from the module’s tolerance of radiated heat from furnaces and the conducted interference generated by large DC drive systems used in rolling mill applications.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 1747-ACN15?
All 1747-ACN15 units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. In the event of a confirmed fault, we provide full module replacement or repair at no additional cost. Warranty claims are processed within 5 business days of receipt of the returned unit, minimizing your plant downtime exposure.

Q2: How is each unit tested before shipment?
Every 1747-ACN15 module undergoes a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, power-on functional verification, ControlNet port continuity testing, and firmware version confirmation. Modules are shipped in anti-static packaging with individual test records available upon request. We do not ship untested stock.

Q3: Is this module compatible with my existing SLC 500 chassis and RSNetWorx for ControlNet software?
Yes. The 1747-ACN15 is fully compatible with all 1746-series SLC 500 chassis (4-slot through 13-slot configurations) and is configured and scheduled using Rockwell Automation’s RSNetWorx for ControlNet software. It supports all standard ControlNet scheduled and unscheduled connection types. If you require compatibility verification for a specific chassis revision or processor firmware version, contact our technical team with your existing configuration details.

Q4: Can TOPNLMS support long-term supply and emergency replacement requirements?
Yes. TOPNLMS maintains buffer stock of high-demand SLC 500 series components including the 1747-ACN15 to support both planned maintenance schedules and emergency breakdown replacements. We understand that legacy SLC 500 systems may have extended service lives of 15–20 years, and we are committed to providing reliable spare parts supply throughout that lifecycle. Expedited shipping options are available for critical breakdown situations, with same-day dispatch for in-stock items ordered before 3:00 PM CST.
