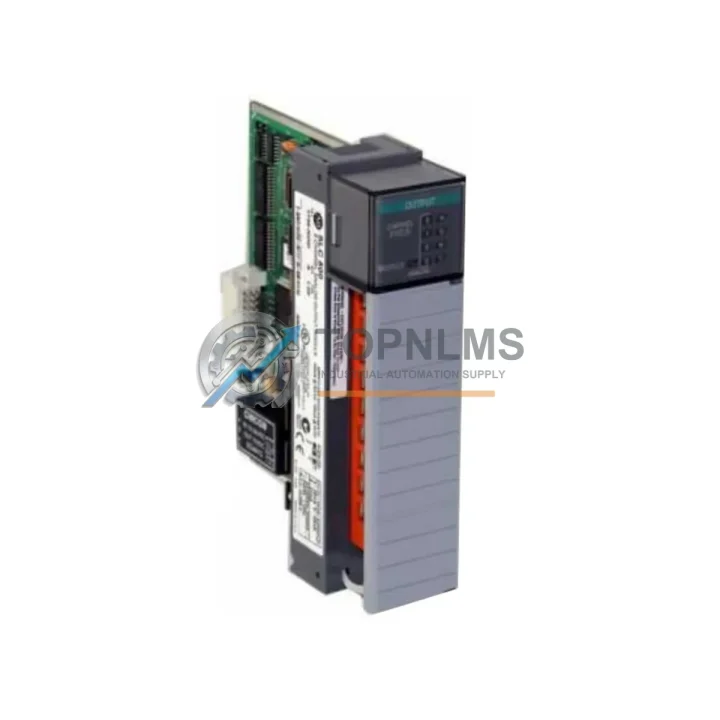

Allen-Bradley 1746SC-NO8I Original Industrial Spare SLC 500 Compatible

Product Overview

Allen-Bradley 1746SC-NO8I Original Industrial Spare SLC 500 Compatible: Ensuring System Stability in Demanding Automation Environments

The Allen-Bradley 1746SC-NO8I is an 8-channel, 4–20 mA analog output module engineered for the SLC 500 modular chassis platform. In process-intensive industries — including oil & gas, water treatment, food & beverage, automotive assembly, and discrete manufacturing — this module serves as the critical interface between the SLC 500 controller and field-level actuators such as control valves, variable frequency drives, and positioners. Maintaining a verified original spare of the 1746SC-NO8I in your facility’s inventory is not merely a procurement decision; it is a cornerstone of a mature preventive maintenance strategy that directly reduces unplanned downtime risk and protects production continuity.

When a 1746SC-NO8I fails in service, the consequences extend well beyond the module itself. Analog output loops go to a safe state or last value, actuators freeze, and process control is lost — often triggering a full line shutdown. With a pre-tested, shelf-ready replacement on hand, maintenance teams can execute a hot-swap in under 15 minutes, restoring full loop control without waiting days for emergency freight. This is the operational value that makes stocking original spare modules a measurable ROI decision, not an overhead cost.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for SLC 500-based control systems extends well beyond replacing a single analog output module. When scheduling a planned shutdown or responding to a fault condition involving the 1746SC-NO8I, experienced maintenance engineers use the opportunity to audit the entire control cabinet for components that share the same operational stress cycles and failure modes.

Begin with the power supply rail. The 1746-P4 or 1746-P7 SLC 500 power supply modules are the first components to inspect — degraded capacitors in the power supply cause ripple that manifests as erratic analog output behavior, often misdiagnosed as a module fault. Replacing a worn power supply at the same time as the 1746SC-NO8I eliminates a common root cause of recurring analog loop instability.

Next, inspect the analog input side. The 1746-NI8 or 1746-NI16I analog input modules that feed process variable data to the SLC 5/04 or SLC 5/05 processor should be checked for channel drift and calibration accuracy. In high-cycle environments, analog I/O modules degrade together; replacing only the output module while leaving a drifting input module in service will produce persistent loop control errors.

The 1746-OB16 digital output module and 1746-IB16 digital input module in the same chassis should also be inspected for contact wear and terminal block integrity. Loose terminal connections on the 1746-RT25 or 1746-RT27 wiring arm assemblies are a frequent source of intermittent faults that are difficult to trace without a systematic inspection. Replacing worn terminal blocks and wiring arms during the same maintenance window prevents repeat call-outs.

For systems using DeviceNet or DH+ communications, the 1747-SDN DeviceNet scanner module and 1747-KE DH+/RS-232 interface module should be verified for firmware currency and connector integrity. Communication module faults can cause the SLC processor to lose visibility of remote I/O nodes, triggering false analog output faults that are actually upstream communication errors.

Finally, review the field wiring between the 1746SC-NO8I and the actuators it drives. Shielded instrumentation cable continuity, shield grounding at a single point, and loop power supply voltage at each actuator terminal should all be verified. A 24 VDC loop power supply — often a dedicated 1606-XLP or equivalent DIN-rail power supply — should be load-tested and replaced if it shows signs of output voltage sag under full 8-channel load. Addressing the complete signal chain during a single planned outage is always more cost-effective than returning to the same cabinet for sequential repairs.

Strategic Replacement Solutions

The 1746SC-NO8I is a specialty analog output module within the SLC 500 ecosystem, and sourcing original replacements through authorized channels is essential for maintaining system integrity. Counterfeit or refurbished modules may pass initial power-on tests but fail under thermal cycling, causing intermittent faults that are extremely difficult to diagnose in a live production environment.

For facilities operating legacy SLC 500 systems that Rockwell Automation has moved to end-of-life support status, maintaining a stock of original 1746SC-NO8I modules is the most reliable strategy for extending system life without the capital expenditure of a full ControlLogix or CompactLogix migration. A single verified spare can protect years of continued operation on a proven, stable platform.

When planning a phased migration to a newer platform such as the 1769-OF8C CompactLogix analog output module, the 1746SC-NO8I serves as the bridge component that keeps the existing system operational during the transition period. This approach allows engineering teams to validate the new platform in parallel without forcing an emergency cutover under production pressure.

All units supplied by TOPNLMS are sourced from verified supply chains, individually tested for output accuracy across all 8 channels prior to shipment, and backed by a 12-month warranty. Each module ships with full electrostatic discharge (ESD) protective packaging and a test report confirming channel-by-channel output verification at 4 mA, 12 mA, and 20 mA setpoints.

Support FAQ

Q1: Is the 1746SC-NO8I still available as a new original part, or only as refurbished?
A: TOPNLMS supplies original 1746SC-NO8I modules sourced from verified industrial distribution channels. Each unit undergoes pre-shipment functional testing. Condition is clearly stated on the product listing. Contact us at [email protected] to confirm current stock condition and availability before ordering.

Q2: How do I verify compatibility with my existing SLC 500 chassis and processor?
A: The 1746SC-NO8I is compatible with all SLC 500 modular chassis variants (1746-A4 through 1746-A13) and is supported by SLC 5/03, 5/04, and 5/05 processors. Verify your chassis slot count and processor firmware revision against Rockwell Automation Publication 1746-UM005. If you need compatibility confirmation for a specific system configuration, share your chassis and processor part numbers with our technical team.

Q3: What does the 12-month warranty cover, and what is the replacement process?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, contact [email protected] with your order number and a description of the fault. TOPNLMS will arrange a replacement shipment. Physical damage caused by incorrect installation, overvoltage, or ESD mishandling is not covered.

Q4: How should I store a spare 1746SC-NO8I to maximize shelf life?
A: Store the module in its original ESD-protective bag inside a dry, temperature-controlled environment between 0°C and 40°C with relative humidity below 70% non-condensing. Avoid storing near sources of electromagnetic interference or vibration. Inspect the module annually for any signs of corrosion on the backplane connector pins. Properly stored, an original module can maintain full functional integrity for 5–10 years on the shelf.
