Allen-Bradley 1746SC-IN04VI Original Industrial Spare SLC 500

Product Overview

Allen-Bradley 1746SC-IN04VI Original Industrial Spare SLC 500 Compatible: System Stability & Maintenance Value

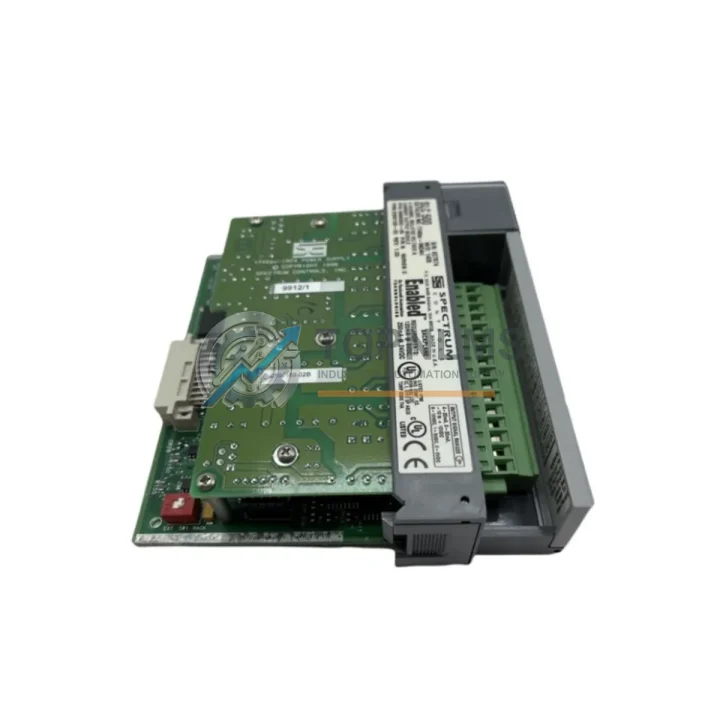

The Allen-Bradley 1746SC-IN04VI is a 4-channel isolated analog output module engineered for the SLC 500 control platform — one of the most widely deployed programmable logic controller families in discrete and process manufacturing environments worldwide. As facilities age and OEM support windows narrow, maintaining a verified stock of original spare modules like the 1746SC-IN04VI becomes a cornerstone of any credible preventive maintenance and business continuity strategy.

Each unit supplied by TOPNLMS is sourced from authorized industrial channels, subjected to functional verification prior to dispatch, and backed by a 12-month replacement warranty. Whether you are managing a single production line or coordinating spare parts across a multi-site facility, the 1746SC-IN04VI delivers the signal integrity, channel isolation, and rack compatibility that SLC 500 installations demand.

Critical Technical Specs

Preventive Maintenance Strategy

In any SLC 500-based control cabinet, the analog output subsystem is rarely a standalone concern. The 1746SC-IN04VI drives field devices — control valves, variable frequency drives, positioners, and proportional solenoids — whose performance depends on the entire signal chain remaining intact. A disciplined preventive maintenance program should treat the 1746SC-IN04VI as part of a broader inspection and replacement cycle.

During scheduled shutdowns, maintenance teams should simultaneously inspect the 1746-P4 or 1746-P7 power supply module, which provides regulated backplane power to all I/O modules including the analog output card. A degraded power supply is a leading cause of intermittent analog signal drift that is often misdiagnosed as a module fault. Alongside the power supply, the 1746-A10 or 1746-A13 chassis backplane should be checked for slot connector wear, particularly in high-vibration environments.

On the digital side, facilities running mixed analog and discrete control loops should verify the condition of co-installed 1746-OB16 or 1746-OW16 digital output modules, as shared backplane faults can manifest across both analog and digital I/O simultaneously. For process lines where the 1746SC-IN04VI drives 4–20 mA loops to field transmitters, it is equally important to inspect the 1746-NI4 or 1746-NI8 analog input modules that close the control loop — a failing input module will cause erratic PID behavior even when the output module is fully functional.

Communication integrity is another critical dimension. The 1747-SDN DeviceNet Scanner module or 1747-KE RS-232/DH-485 interface module, depending on your network topology, should be included in the inspection checklist. Loss of communication between the SLC 5/05 processor and upstream SCADA or DCS systems can mask analog output faults during normal operation, making them visible only during a full system audit.

Terminal block assemblies and field wiring connected to the 1746SC-IN04VI output terminals should be inspected for oxidation, loose ferrules, and insulation degradation — particularly in humid or chemically aggressive environments. Pairing the module replacement with a refresh of 1492-series terminal blocks and wiring duct is a cost-effective way to eliminate latent wiring faults. For installations where signal isolation is critical, adding a signal isolator or loop-powered isolator between the module output and the field device provides an additional layer of protection against ground loops and EMI-induced noise.

Finally, facilities managing aging SLC 500 installations should maintain a minimum buffer stock of the 1747-L553 or 1747-L552 SLC 5/05 processor module alongside the 1746SC-IN04VI. Processor and I/O module failures rarely occur in isolation during end-of-life system phases, and having both components available on-site reduces mean time to repair (MTTR) from days to hours.

Strategic Replacement Solutions

The 1746SC-IN04VI was designed as a drop-in replacement within the SLC 500 modular chassis ecosystem. It occupies a standard I/O slot, requires no hardware modification to the chassis or processor, and is configured via RSLogix 500 software using the existing I/O configuration file — making field replacement a straightforward procedure that a qualified maintenance technician can complete within a single shift.

For facilities transitioning from older 1746-series analog output modules, the 1746SC-IN04VI’s channel isolation architecture eliminates common-mode interference issues that affected earlier non-isolated designs. This makes it a preferred upgrade path for installations experiencing unexplained signal noise or ground loop problems without requiring a full system migration to the ControlLogix or CompactLogix platform.

In legacy system life-extension scenarios — where a full migration to a modern PLC platform is deferred due to capital constraints or production continuity requirements — stocking verified original modules like the 1746SC-IN04VI is the most operationally sound strategy. It preserves the existing software investment in RSLogix 500 programs, maintains compatibility with existing HMI configurations on PanelView 550 or PanelView 600 terminals, and avoids the engineering cost of I/O remapping that a platform migration would entail.

TOPNLMS maintains inventory of the 1746SC-IN04VI and related SLC 500 components to support rapid dispatch. Orders are processed within 1–2 business days, with international shipping available to most industrial regions. Each unit is individually tested for output accuracy across all four channels before shipment.
