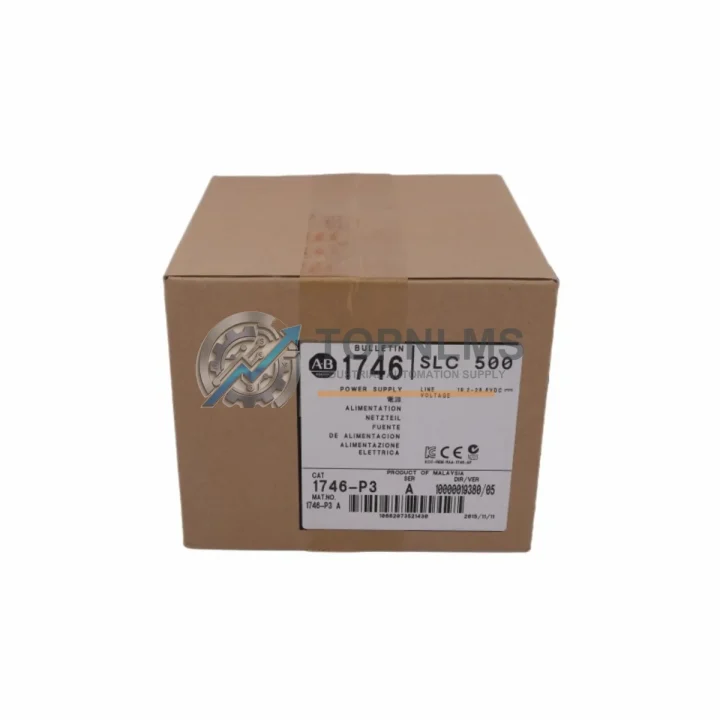

Allen-Bradley 1746-P3 Ruggedized Power Supply Module

Product Overview

Allen-Bradley 1746-P3 Ruggedized Power Supply Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1746-P3 is a high-capacity modular chassis power supply engineered for the SLC 500 programmable controller platform — one of the most widely deployed control architectures in global industrial automation. Designed to deliver stable, conditioned DC power to SLC 500 I/O chassis under continuous-duty conditions, the 1746-P3 sustains reliable operation in environments defined by high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference (EMI). Where lesser power supplies fail, the 1746-P3 maintains regulated output, protecting the integrity of every downstream module in the control rack.

In heavy industrial settings — oil refineries, gas compression stations, underground mining operations, steel mills, water treatment facilities, and high-voltage power distribution substations — a power supply failure can cascade into unplanned shutdowns across entire production lines, triggering safety interlocks, corrupting process data, and demanding costly emergency maintenance. The 1746-P3 addresses this risk with robust internal filtering, wide-range AC input tolerance, and thermal management designed to sustain output under full load even when ambient conditions approach the upper boundary of its rated operating range.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746-P3 delivers its full value when deployed as part of a complete SLC 500 control architecture. In a typical industrial control cabinet, it powers the 1747-L543 SLC 5/04 processor — a high-performance CPU handling complex ladder logic and peer-to-peer DH+ communications simultaneously. Discrete field signals are conditioned through 1746-IB16 24 VDC digital input modules and switched through 1746-OB16 transistor output modules, both of which depend on stable backplane power for accurate signal processing and reliable field device actuation.

For analog process control loops — temperature regulation, pressure management, and flow control — the 1746-NI4 analog input module and 1746-NO4I analog output module provide 4–20 mA and 0–10 VDC signal handling with the resolution required for closed-loop PID control. These modules are particularly sensitive to power supply noise; the 1746-P3’s regulated, low-ripple output ensures analog signal integrity is maintained even in electrically noisy environments adjacent to variable frequency drives, motor starters, and high-current switching equipment.

Network connectivity is typically provided by the 1747-SDN DeviceNet Scanner module, enabling the SLC 500 processor to communicate with distributed I/O blocks, smart sensors, and drives on the DeviceNet fieldbus. In facilities requiring Ethernet integration, the 1761-NET-ENI Serial-to-Ethernet interface bridges the SLC 500’s DH-485 or RS-232 port to the plant network, connecting SCADA systems and MES platforms without requiring a processor upgrade. Both communication modules draw backplane power from the 1746-P3, reinforcing the importance of a specification-compliant, stable power source at the chassis level.

For safety-critical applications, the SLC 500 platform is frequently paired with dedicated Allen-Bradley Guardmaster safety relay modules and hardwired emergency stop circuits that monitor PLC system status and enforce safe-state transitions. Industrial power conditioning — including 1606-XLP series 24 VDC power supplies for field device power rails and 1783-series managed Ethernet switches for network segmentation and redundancy — completes the protection architecture, ensuring both control and communication infrastructure remain operational under adverse conditions. The 1746-P3 is the foundational element that makes this entire ecosystem reliable and field-proven.

Application in Critical Infrastructure

The Allen-Bradley 1746-P3 has established a long service record across the most demanding sectors of critical industrial infrastructure. In oil and gas processing facilities, SLC 500 systems equipped with 1746-P3 power supplies control wellhead automation, pipeline pressure regulation, and gas compression station sequencing — applications where unplanned downtime carries both significant financial and safety consequences. The power supply’s wide AC input tolerance accommodates voltage fluctuations common in remote field installations served by diesel generators or unstable utility grid connections.

In underground mining operations, control systems must withstand extreme vibration from blasting and heavy equipment, high levels of airborne coal dust and silica particulate, and wide temperature swings between surface and underground environments. The 1746-P3’s compliance with IEC 68-2-6 vibration standards makes it a reliable choice for conveyor drive control, ventilation fan management, and dewatering pump automation in these environments, where control system failures carry direct safety implications for personnel.

Water and wastewater treatment facilities present high ambient humidity, corrosive chemical atmospheres, and the requirement for continuous 24/7 operation without scheduled maintenance windows. SLC 500 systems controlling aeration blowers, chemical dosing pumps, and clarifier drives rely on the 1746-P3 to maintain uninterrupted backplane power across multi-year operational cycles. In metallurgical and steel production environments, where radiated heat from furnaces and induction heating equipment creates extreme thermal loads, the 1746-P3’s 0–60 °C operating range and thermal protection circuitry provide the margin needed for reliable continuous operation without derating.

In electric power generation and distribution substations, SLC 500 platforms are used for protection relay coordination, transformer monitoring, and switchgear control. These environments are characterized by intense electromagnetic fields generated by high-voltage switching events. The 1746-P3’s EMI immunity, compliant with the IEC 61000-4 series, ensures that control system operation is not disrupted by the electrical transients inherent to high-voltage switching operations. For facilities operating under IEC 61511 functional safety requirements, the 1746-P3 supports architectures where SLC 500 processors work in conjunction with dedicated safety relay modules, emergency stop circuits, and hardwired interlock systems — ensuring safety-critical I/O modules monitoring pressure transmitters, temperature switches, and flame detectors receive stable, conditioned power at all times.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1746-P3?
Every 1746-P3 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. If the unit fails to perform to Allen-Bradley specifications within the warranty period due to manufacturing defects or component failure under normal operating conditions, TOPNLMS will provide a replacement unit or full refund. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: How does TOPNLMS verify authenticity and functionality before shipment?
All 1746-P3 units undergo a pre-shipment inspection protocol that includes visual inspection for physical damage, label verification against Allen-Bradley part number databases, and functional power-on testing to confirm output voltage regulation within specification. Units that do not pass inspection are quarantined and not offered for sale. TOPNLMS sources only from verified supply channels, ensuring every unit delivered is genuine and field-ready.

Q3: Is the 1746-P3 compatible with all SLC 500 chassis and can it replace other SLC 500 power supplies?
The 1746-P3 is compatible with all standard SLC 500 modular chassis, including the 1746-A4 (4-slot), 1746-A7 (7-slot), 1746-A10 (10-slot), and 1746-A13 (13-slot) configurations. It is a direct form-fit-function replacement for the 1746-P2 in applications where the higher output current capacity of the P3 is acceptable. Customers should verify chassis slot count and total I/O module current draw against the 1746-P3 output specifications before installation to ensure compatibility.

Q4: Can TOPNLMS support long-term supply continuity for facilities with multiple SLC 500 systems?
Yes. TOPNLMS maintains standing inventory of the 1746-P3 and other SLC 500 platform components to support facilities managing large installed bases of Allen-Bradley control systems. For customers requiring scheduled spare-parts replenishment, blanket purchase order arrangements, or priority allocation during periods of high demand, please contact our technical sales team directly at [email protected] or +86 18359293191 to discuss supply continuity agreements.
