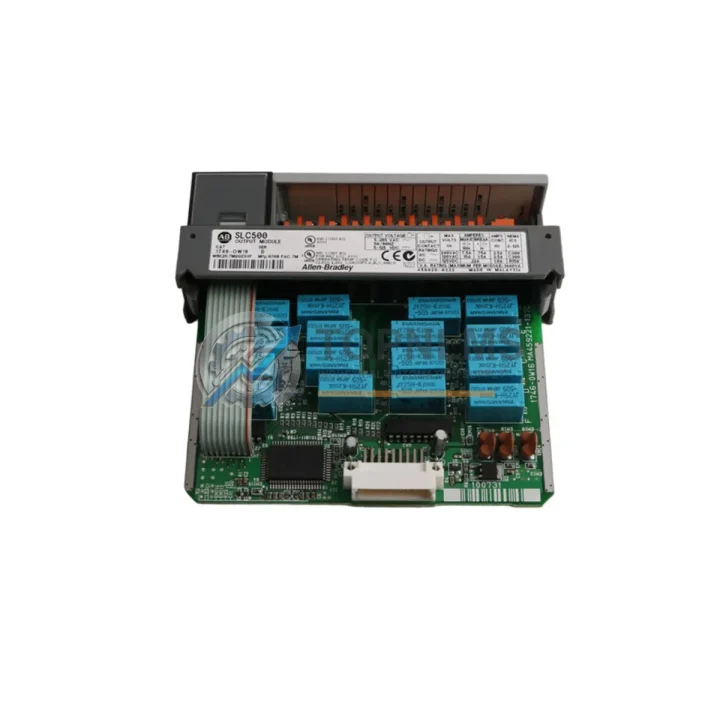

Allen-Bradley 1746-OW16 Ruggedized Relay Output Module

Product Overview

Allen-Bradley 1746-OW16 Ruggedized Relay Output Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1746-OW16 is a 16-point relay output module engineered for the SLC 500 programmable controller platform — one of Rockwell Automation’s most proven and widely deployed control architectures in global industrial facilities. Designed to deliver unwavering performance under the most demanding field conditions, the 1746-OW16 is the preferred relay output solution for engineers and procurement specialists operating in high-temperature, high-humidity, dust-laden, vibration-intensive, and electromagnetically noisy environments.

Unlike general-purpose I/O modules, the 1746-OW16 is built to sustain continuous operation across the full spectrum of industrial stress factors. Its relay contact outputs provide galvanic isolation between the control logic and field devices, making it inherently resistant to ground loops, voltage transients, and inductive kickback from motors, solenoids, and actuators. This isolation architecture is critical in heavy industrial settings where electrical noise from variable frequency drives (VFDs), large contactors, and high-current switching loads can corrupt signal integrity in lesser modules.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746-OW16 does not operate in isolation — it is a critical node within a broader SLC 500 control system architecture. In a typical industrial control cabinet, it works in concert with the 1746-IB16 DC input module, which handles field-side digital sensing, and the 1746-A13 modular chassis that physically houses and backplane-connects all I/O modules. Power integrity for the entire rack is maintained by the 1746-P4 power supply, which delivers regulated 24 VDC and 5 VDC rails even under fluctuating utility input conditions.

For applications requiring analog process control alongside discrete relay switching, the 1746-NI8 analog input module and 1746-NO4I analog output module are commonly deployed in the same chassis. Communication between the SLC 500 processor and supervisory SCADA systems is typically handled via the 1747-SDN DeviceNet scanner module or the 1747-KE DH-485 to RS-232 interface module, both of which share the same 1746 backplane.

In safety-critical zones, the 1746-OW16 is often paired with dedicated safety relay modules such as the MSR127RP safety relay from Rockwell’s Guard Master series, which monitors E-stop circuits and light curtain inputs before enabling the relay outputs to energize downstream actuators. For motor control applications, the relay outputs of the 1746-OW16 drive contactor coils and pilot relays, while PowerFlex 40 or PowerFlex 525 variable frequency drives handle the actual motor speed regulation — with the SLC 500 processor coordinating start/stop logic through the relay module’s isolated contacts.

Terminal block assemblies such as the 1492-CABLE series pre-wired interface cables and 1492-IFM interface modules simplify field wiring to the 1746-OW16, reducing installation time and wiring errors in dense control panels. This complete ecosystem ensures that every signal path — from field sensor through I/O module to actuator — is protected, documented, and maintainable.

Application in Critical Infrastructure

The Allen-Bradley 1746-OW16 has earned its place as a trusted relay output module across the most demanding sectors of global critical infrastructure. In oil and gas upstream operations, it controls wellhead safety valves, chemical injection pump solenoids, and flare ignition systems — environments where relay contact isolation is non-negotiable due to the presence of explosive atmospheres and high-voltage interference from submersible pump drives.

In coal and hard-rock mining, the module manages conveyor belt start/stop sequences, ventilation fan control, and dewatering pump automation in underground environments characterized by extreme dust ingress, mechanical vibration from blasting and heavy equipment, and wide temperature swings between surface and underground workings. The relay’s galvanic isolation prevents ground faults in long cable runs from propagating back into the SLC 500 processor.

At power generation and substation facilities, the 1746-OW16 interfaces with circuit breaker control circuits, transformer tap changers, and auxiliary relay panels. Its ability to switch both AC and DC loads across a wide voltage range (5–265 VAC / 5–125 VDC) makes it uniquely versatile for the mixed-voltage environments found in power plant control rooms. In water and wastewater treatment plants, it controls pump station motor starters, valve actuators, chemical dosing systems, and UV disinfection equipment — all within the corrosive, high-humidity enclosures typical of wet-process facilities.

In steel mills and aluminum smelters, the module operates within the intense electromagnetic interference generated by arc furnaces, induction heaters, and large rectifier banks. Its relay contact architecture provides the necessary noise immunity to maintain reliable discrete output control even when adjacent equipment generates kiloampere-level current transients. For automotive assembly lines and food and beverage processing, the 1746-OW16 delivers the cycle-for-cycle reliability required in 24/7 continuous production environments where unplanned downtime translates directly to lost revenue and safety incidents.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1746-OW16?
Every Allen-Bradley 1746-OW16 shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, we provide a replacement or full refund — no bureaucratic delays. Our warranty commitment reflects our confidence in the quality of every unit we stock and test before dispatch.

Q2: How is each module tested before shipment?
All 1746-OW16 modules undergo a pre-shipment functional verification process at our Xiamen facility. Each unit is powered up, backplane-connected, and subjected to output point actuation testing across all 16 relay channels. Modules that fail any test point are quarantined and not shipped. This process ensures that every unit arriving at your facility is operationally verified, not merely visually inspected.

Q3: Is the 1746-OW16 compatible with all SLC 500 chassis and processors?
Yes. The 1746-OW16 is fully compatible with all SLC 500 modular chassis (1746-A4, 1746-A7, 1746-A10, 1746-A13) and all SLC 500 processor families including the SLC 5/01, 5/02, 5/03, 5/04, and 5/05. It occupies one I/O slot and is recognized automatically by RSLogix 500 / Studio 5000 Logix Designer during chassis configuration. No firmware updates or special configuration files are required for standard relay output operation.

Q4: Can TOPNLMS support long-term and emergency replacement procurement?
Absolutely. TOPNLMS maintains dedicated safety stock of high-demand SLC 500 modules including the 1746-OW16 to support both planned maintenance schedules and emergency breakdown situations. We understand that production downtime in critical infrastructure is measured in thousands of dollars per hour. Our standard lead time is 1–3 business days for in-stock items, with expedited same-day dispatch available for urgent orders. Contact our technical team at [email protected] or +86 18359293191 to confirm current stock levels and arrange priority shipment.
