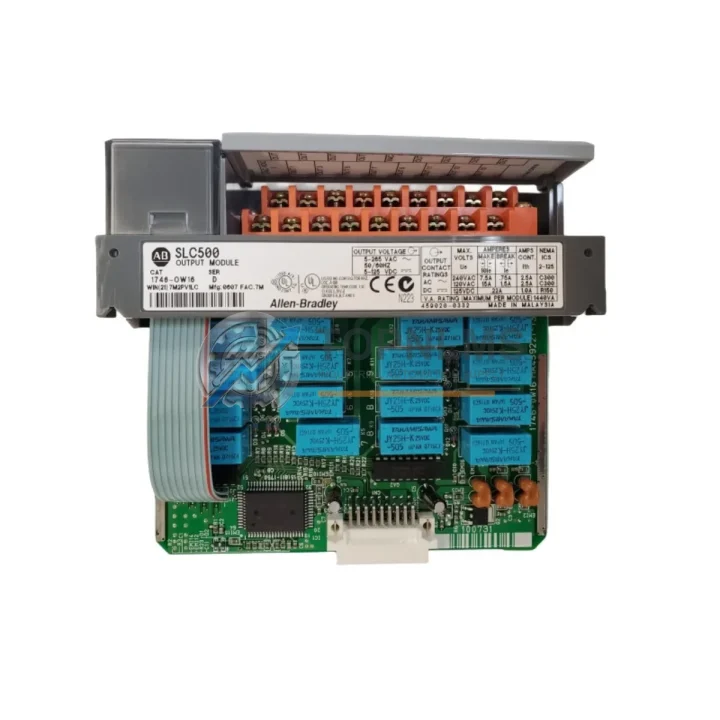

Allen-Bradley 1746-OW16/C Original SLC 500 Compatible

Product Overview

Allen-Bradley 1746-OW16/C Original SLC 500 Compatible: System Stability & Industrial Spare Maintenance Value

The Allen-Bradley 1746-OW16/C is a 16-point relay output module engineered for the SLC 500 programmable controller platform — one of the most widely deployed discrete control architectures in global manufacturing. Whether you are managing a planned shutdown, responding to an unscheduled fault, or building a strategic spare parts inventory, the 1746-OW16/C represents a critical line item in any SLC 500 maintenance program. Its relay-based output design provides galvanic isolation between the controller backplane and field devices, making it suitable for mixed-voltage load switching across AC and DC circuits without additional interface hardware.

In facilities where SLC 500 systems have been in continuous service for ten or more years, the relay output module is statistically among the first components to exhibit wear-related degradation. Relay contact fatigue, coil insulation breakdown, and output channel failure under high-cycle loads are the most common failure modes. Maintaining at least one verified spare 1746-OW16/C on-site eliminates the procurement lead time that would otherwise translate directly into extended production downtime. For multi-line plants operating SLC 5/03, SLC 5/04, or SLC 5/05 processors, a single failed output module can halt an entire production cell — the cost of a spare is negligible against that exposure.

Critical Technical Specs

Preventive Maintenance Strategy

A disciplined preventive maintenance program for any SLC 500 control cabinet extends well beyond the output module itself. When scheduling a planned inspection or responding to a relay output fault on the 1746-OW16/C, experienced maintenance engineers treat the event as an opportunity to audit the entire I/O chassis and associated field wiring. The relay output module shares a backplane with input modules such as the 1746-IB16 (16-point 24 VDC sink input) and 1746-IA16 (16-point 120 VAC input), both of which should be inspected for input channel integrity and terminal block condition during the same maintenance window.

The 1746-P4 power supply module is the backbone of the SLC 500 chassis and should be evaluated for output voltage stability, capacitor aging, and fan operation whenever an output module is replaced. A degraded power supply operating near its rated capacity is a common root cause of intermittent module faults that are incorrectly attributed to the I/O module itself. Similarly, the 1746-A10 or 1746-A13 chassis backplane should be visually inspected for corrosion, bent connector pins, and slot damage before inserting a replacement 1746-OW16/C.

For facilities using DeviceNet or DH-485 communications, the 1747-SDN DeviceNet scanner module and 1747-AIC isolated link coupler are components that warrant periodic inspection alongside output module replacements, as communication faults can mask or mimic I/O module failures during troubleshooting. If the SLC 500 system interfaces with a remote I/O network, the 1747-ASB remote I/O adapter should also be included in the inspection checklist.

Field wiring terminations at the 1746-OW16/C output terminals are a frequent source of intermittent faults in high-vibration environments. Inspecting and re-torquing terminal connections, replacing worn 1492-J series terminal blocks, and verifying the integrity of 1492-CABLE series pre-wired interface cables are low-cost steps that significantly extend the service life of the output module and reduce nuisance trips. Where output circuits drive inductive loads such as motor starters or solenoid valves, verifying that appropriate surge suppression devices are installed across the load coils will protect relay contacts and extend contact life well beyond the rated mechanical cycle count.

For plants managing aging SLC 500 installations alongside newer ControlLogix or CompactLogix systems, maintaining a cross-reference of equivalent output modules — including the 1769-OW16 CompactLogix relay output module — supports long-term migration planning without disrupting current production. Stocking both the 1746-OW16/C and its CompactLogix equivalent allows maintenance teams to support parallel systems from a unified spare parts strategy.

Strategic Replacement Solutions

The 1746-OW16/C is a direct replacement for earlier Series A and Series B revisions of the same part number. All series revisions are firmware-compatible and slot-interchangeable within the 1746 I/O chassis, requiring no processor program changes or I/O configuration updates upon installation. This backward compatibility is a significant operational advantage: maintenance personnel can install a Series C module in a chassis originally configured for a Series A unit without any engineering intervention, minimizing mean time to repair (MTTR) during unscheduled outages.

For facilities where the SLC 500 platform is being phased out in favor of the Allen-Bradley Micro800 or ControlLogix families, the 1746-OW16/C remains the correct spare for the transition period. Premature platform migration during active production carries substantial risk; maintaining a verified spare output module ensures that the legacy system can be kept operational on demand while migration engineering proceeds in parallel. This approach — sometimes called bridge stocking — is a recognized best practice in industrial lifecycle management and is particularly valuable for OEM machine builders supporting installed equipment in the field.

Each 1746-OW16/C unit supplied by TOPNLMS undergoes functional verification prior to shipment, including output channel continuity testing and backplane connector inspection. Units are shipped in anti-static packaging with original-style labeling. A 12-month warranty covers all supplied units against defects in materials and workmanship, with direct technical support available from our engineering team throughout the warranty period.

Support FAQ

Q1: Is the 1746-OW16/C compatible with all SLC 500 chassis sizes?
Yes. The 1746-OW16/C occupies a single slot and is compatible with all standard 1746 I/O chassis, including the 1746-A4 (4-slot), 1746-A7 (7-slot), 1746-A10 (10-slot), and 1746-A13 (13-slot). It is also compatible with all SLC 500 processor families from SLC 5/01 through SLC 5/05.

Q2: How many units should I stock as preventive inventory?
For a single SLC 500 system, one spare 1746-OW16/C is the minimum recommended holding. For multi-system plants or facilities with high output cycle rates (e.g., packaging, stamping, or assembly lines), two to three units per chassis type is a common industry practice. Given the age of the SLC 500 platform and the declining availability of new production units, early procurement is strongly advised.

Q3: What pre-shipment testing does TOPNLMS perform on the 1746-OW16/C?
Each unit undergoes output channel continuity verification, backplane connector pin inspection, and visual examination for physical damage or counterfeit indicators before shipment. Units that do not pass inspection are not shipped. A test report summary is available upon request for critical procurement applications.

Q4: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact TOPNLMS with the order reference number and a description of the fault. Our engineering team will assess the claim and arrange replacement or repair within the warranty period.
