Allen-Bradley 1746-OV32 Original Industrial Spare SLC 500 Compatible

Product Overview

Allen-Bradley 1746-OV32 Original Industrial Spare SLC 500 Compatible: Ensuring System Stability in Demanding Automation Environments

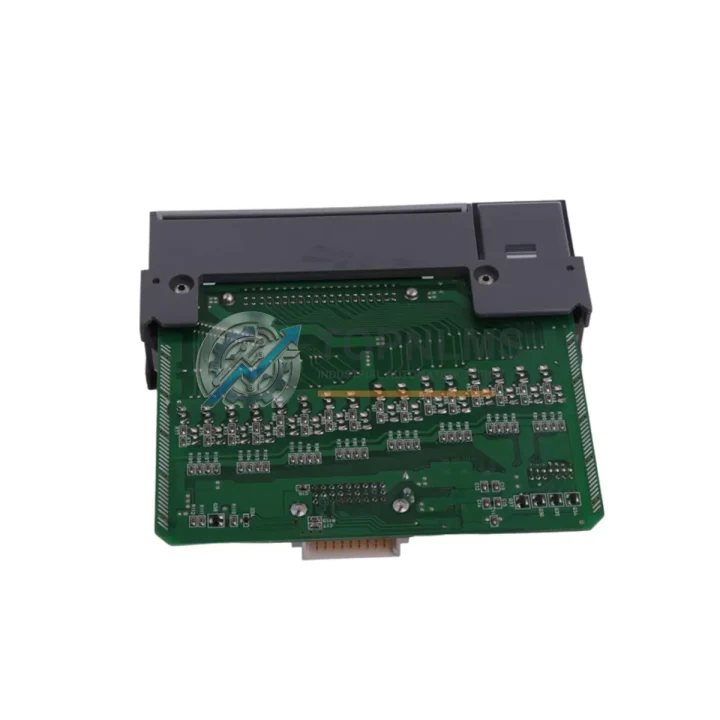

In modern manufacturing and process control environments, the reliability of discrete output modules is foundational to uninterrupted production. The Allen-Bradley 1746-OV32 is a 32-point NPN (sinking) DC output module designed specifically for the SLC 500 modular I/O system. As an original spare part, it delivers the precise electrical characteristics and firmware compatibility that field engineers and maintenance planners depend on when every minute of downtime carries a measurable cost.

Whether you are managing a high-throughput automotive assembly line, a food and beverage packaging system, or a water treatment facility running legacy SLC 500 racks, the 1746-OV32 provides the output density and signal integrity required to drive solenoids, relays, indicator lamps, and motor starters with confidence. Sourced as an original component — not a counterfeit or grey-market substitute — this module meets the full Allen-Bradley specification and integrates seamlessly into existing SLC 500 chassis without firmware reconfiguration or wiring modification.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled replacement of the 1746-OV32 should never be treated in isolation. In practice, output module degradation in an SLC 500 rack is frequently accompanied by wear or latent faults in adjacent components that share the same electrical environment. During any planned maintenance window or emergency shutdown, maintenance engineers are strongly advised to conduct a comprehensive inspection of the entire control cabinet.

Begin with the 1746-P4 or 1746-P7 power supply module, which provides regulated 5 VDC and 24 VDC backplane power. A power supply operating near its thermal limits will cause intermittent output faults that are often misdiagnosed as module failures. Verify output voltage stability under load before condemning the 1746-OV32.

Next, inspect the 1746-IB32 or 1746-IB16 DC input modules installed in the same chassis. Input and output modules in the same control loop are subject to the same field wiring faults — ground loops, voltage spikes from inductive loads, and loose terminal connections affect both sides of the I/O system simultaneously. Replacing the output module while leaving a degraded input module in service is a common cause of repeat failures within 90 days.

The 1747-L543 or 1747-L553 SLC 5/04 or 5/05 processor should also be evaluated during the same maintenance event. Processor firmware version, battery condition (1747-BA), and memory module integrity directly affect how output scan data is written to the 1746-OV32. A processor with a failing lithium battery or corrupted program memory can produce erratic output behavior that mimics a faulty output module.

For facilities using 1747-SDN DeviceNet Scanner modules or 1747-KE or 1747-KFC15 communication interface modules, verify that network communication is stable and that the scanner is not generating excessive backplane traffic that could delay output updates. In high-cycle applications — such as packaging lines running at 60+ cycles per minute — even a 10 ms output delay can cause downstream mechanical faults.

Do not overlook the removable terminal blocks (RTBs) and field wiring harnesses connected to the 1746-OV32. Corroded terminals, undersized conductors, and improperly torqued connections are responsible for a significant proportion of output module failures in humid or chemically aggressive environments. Replace RTBs as a matter of course when swapping the module, and verify conductor insulation integrity with a megohmmeter before reconnecting field devices.

Finally, review the condition of 1492-J fuse holders or 1492-GH fusible terminal blocks protecting the output field circuits. A blown fuse on a single output point can mask a wiring fault that will damage the replacement module if not corrected before commissioning. Fuse continuity testing across all 32 output circuits should be a mandatory step in the pre-commissioning checklist.

Strategic Replacement Solutions

The 1746-OV32 has been in production for over two decades, and many SLC 500 installations remain in active service well beyond their original design life. For facilities committed to maintaining these systems through their extended operational lifecycle, sourcing original spare modules — rather than attempting field repair of failed units — is the most cost-effective strategy when total downtime cost is factored in.

Original 1746-OV32 modules eliminate the compatibility risks associated with third-party replacements, including undocumented firmware differences, non-standard output switching characteristics, and the absence of Rockwell Automation’s factory burn-in and functional test procedures. When a line goes down, the ability to install a verified original module and restore production within minutes — rather than hours spent troubleshooting an incompatible substitute — directly protects revenue and customer commitments.

For facilities managing multiple SLC 500 racks across different production zones, a tiered spare parts inventory strategy is recommended: maintain at least one 1746-OV32 per active chassis as a hot spare, with additional units held in a central stores location for multi-rack facilities. This approach reduces mean time to repair (MTTR) to under 30 minutes for output module failures, which is the benchmark for world-class discrete manufacturing maintenance programs.

For plants considering a phased migration from SLC 500 to CompactLogix or ControlLogix platforms, the 1746-OV32 remains the correct spare for the interim period. Premature platform migration during active production seasons introduces unacceptable risk; maintaining original SLC 500 spares ensures that the legacy system can be kept operational on demand while the migration project proceeds on a controlled schedule.

Support FAQ

Q1: Is this a genuine original Allen-Bradley 1746-OV32, or a compatible replacement?
This is an original Allen-Bradley (Rockwell Automation) 1746-OV32 module, not a third-party compatible or remanufactured unit. Each module is sourced from authorized industrial supply channels and undergoes functional verification prior to shipment. Original modules ensure full compatibility with all SLC 500 chassis variants and processor firmware versions without modification.

Q2: What does the 12-month warranty cover, and how is it validated?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as defined in the Allen-Bradley 1746-OV32 product specification. Prior to shipment, each unit is tested for output switching function, backplane communication integrity, and optical isolation performance. Warranty claims are processed through our technical support team at [email protected] with a standard RMA procedure.

Q3: How do I verify compatibility with my existing SLC 500 chassis before installation?
The 1746-OV32 is compatible with all SLC 500 modular chassis: 1746-A4 (4-slot), 1746-A7 (7-slot), 1746-A10 (10-slot), and 1746-A13 (13-slot). It occupies a single I/O slot and requires no special configuration in RSLogix 500 beyond assigning the correct module type in the I/O configuration tree. Confirm that your chassis power supply (1746-P4 or 1746-P7) has sufficient 5 VDC backplane capacity to support the additional 185 mA draw before installation.

Q4: What is the recommended inventory strategy for facilities with multiple SLC 500 racks?
For facilities operating three or more SLC 500 racks, we recommend maintaining a minimum of one 1746-OV32 per rack as a dedicated hot spare, stored in the local control room in anti-static packaging. For central maintenance stores serving multiple production areas, a buffer of two to four units provides adequate coverage for simultaneous failures during peak production periods. Modules stored in original packaging in a climate-controlled environment maintain full functionality indefinitely; there is no shelf-life limitation for unused solid-state output modules.
