Allen-Bradley 1746-OG16 Replacement for SLC 500

Product Overview

Allen-Bradley 1746-OG16 Replacement for SLC 500: Seamless Transition & Legacy System Upgrade

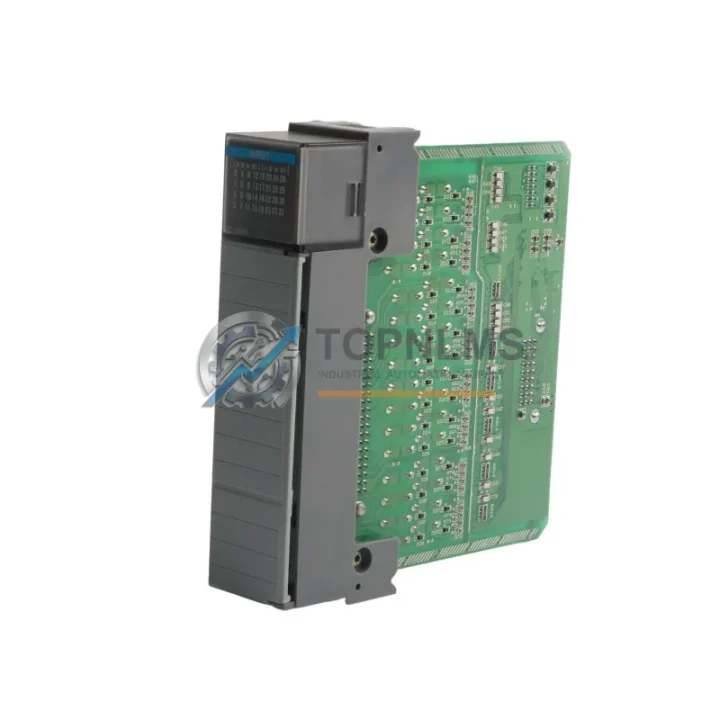

The Allen-Bradley 1746-OG16 is a 16-point TTL sinking output module designed for the SLC 500 modular I/O platform. As industrial facilities phase out aging SLC 500 control architectures or respond to discontinued-part advisories from Rockwell Automation, the 1746-OG16 remains one of the most sought-after replacement and upgrade components in the field. Whether you are maintaining an existing SLC 5/03, SLC 5/04, or SLC 5/05 processor-based system, or executing a phased migration toward a ControlLogix or CompactLogix platform, sourcing a verified, tested 1746-OG16 is a critical first step in minimizing unplanned downtime.

This module occupies a single slot in any standard 1746 series chassis — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 — and interfaces directly with the SLC 500 backplane without requiring any hardware modification. The 16 TTL-compatible sinking outputs are individually fused and rated for low-voltage digital control signals, making the 1746-OG16 a natural fit for encoder interfaces, proximity sensor outputs, and logic-level drive signals in legacy machine control panels.

For facilities running mixed I/O racks that include modules such as the 1746-IB16 (16-point 24VDC sinking input), 1746-OB16 (24VDC sourcing output), or 1746-OW16 (relay output), the 1746-OG16 slots in without disrupting the existing rack addressing scheme. SLC 500 I/O addressing is slot-based, so a direct module swap preserves your existing ladder logic program — no rung edits, no I/O remapping, and no processor download required in most cases. This dramatically reduces the engineering hours and risk associated with a hot-swap replacement during a scheduled maintenance window.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1746-OG16 replacement rarely happens in isolation. In practice, field engineers sourcing this module are often simultaneously addressing adjacent components in the same control cabinet. The 1746-PS13 or 1746-P4 power supply module is frequently inspected and replaced alongside output modules, since aging power supplies are a common root cause of intermittent I/O faults in SLC 500 racks. If the chassis itself shows signs of backplane wear or physical damage, a replacement 1746-A7 or 1746-A10 chassis may be required before the new output module can be installed.

On the communications side, many SLC 500 systems still rely on a 1747-SDN DeviceNet Scanner or a 1747-KE DH-485 to RS-232 interface module for SCADA connectivity and remote programming. These modules are also approaching end-of-life status and are commonly sourced together with I/O replacements during planned shutdowns. For facilities that have already migrated their processor to a 1769 CompactLogix L-series but retained legacy SLC 500 I/O racks, a 1747-AENTR EtherNet/IP adapter can bridge the existing 1746 I/O to the new Logix platform, preserving the investment in field wiring and termination blocks.

Wiring compatibility is another key consideration. The 1746-OG16 uses a removable 20-pin terminal block, and in many installations the field wiring is landed on a 1492-IFM (Interface Module) or equivalent breakout terminal assembly. Retaining the existing terminal block and IFM wiring during a module swap eliminates the need to re-terminate individual conductors — a significant time saving in dense control cabinets. If the panel also includes a PanelView 300 or PanelView 550 HMI communicating over DH-485, no HMI configuration changes are required following a like-for-like 1746-OG16 replacement, since the I/O data table addresses remain unchanged.

For customers executing a broader migration from SLC 500 to ControlLogix 1756 or CompactLogix 1769, the 1746-OG16 can serve as a bridge component during a phased cutover — keeping legacy machine sections operational while new control panels are commissioned in parallel. Signal isolators and marshalling panels may be required where voltage level differences exist between the TTL outputs of the 1746-OG16 and the 24VDC field devices wired to the new platform.

Retrofit Guidance FAQ

Q: Can I swap the 1746-OG16 without modifying my SLC 500 ladder logic program?
A: Yes. The SLC 500 uses slot-based I/O addressing. As long as the replacement module is installed in the same chassis slot, the output image table addresses (O:x.0 through O:x.1) remain identical. No program changes or processor downloads are required in a direct like-for-like replacement.

Q: Is the 1746-OG16 compatible with all SLC 500 processors?
A: Yes. The module is compatible with all SLC 500 fixed and modular processors, including the SLC 5/01, 5/02, 5/03, 5/04, and 5/05. It operates on the standard SLC 500 parallel backplane and does not require any processor firmware update.

Q: What is the output voltage and current rating of the 1746-OG16?
A: The 1746-OG16 provides TTL-compatible sinking outputs at 5VDC logic levels. This makes it suitable for encoder interfaces, TTL-level proximity sensors, and logic-level signal conditioning — not for direct 24VDC field device switching. If your application requires 24VDC sinking outputs, the 1746-OB16 is the appropriate alternative.

Q: Can the 1746-OG16 be installed in any slot of a 1746 chassis?
A: Yes. The module can be installed in any I/O slot of a 1746-A4, A7, A10, or A13 chassis. Slot assignment determines the I/O address; ensure the slot number matches your existing program configuration.

Q: What communication protocols does the SLC 500 system support?
A: The SLC 500 platform supports DH+ (Data Highway Plus), DH-485, and — via adapter modules — EtherNet/IP and DeviceNet. The 1746-OG16 itself communicates over the SLC 500 backplane; network protocol selection is determined by the processor and communication modules installed in the rack.

Q: How do I verify the module is functioning correctly after installation?
A: Use RSLogix 500 or Studio 5000 (for legacy compatibility mode) to go online with the processor and force individual output bits. Verify that the corresponding field signals respond correctly. Check the module status LED — a solid green indicates normal operation.

Warranty Assurance

Every 1746-OG16 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including backplane communication checks, output point actuation tests, and visual inspection for physical damage. Modules are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund — your choice. Our after-sales response target is within 24 business hours of a warranty claim submission. We maintain buffer stock of high-demand SLC 500 modules to support rapid replacement dispatch without extended lead times.

For urgent plant-down situations, expedited shipping options are available to most destinations. Our team is experienced in coordinating time-critical industrial spare parts logistics, including customs documentation for cross-border shipments to Southeast Asia, Europe, and the Americas.

To place an order, request a quotation, or discuss your specific retrofit requirements, contact our technical sales team directly.
