Allen-Bradley 1746-OB32 Original Industrial Spare SLC 500 Compatible

Product Overview

Allen-Bradley 1746-OB32 Original Industrial Spare SLC 500 Compatible: Ensuring System Stability in Demanding Industrial Environments

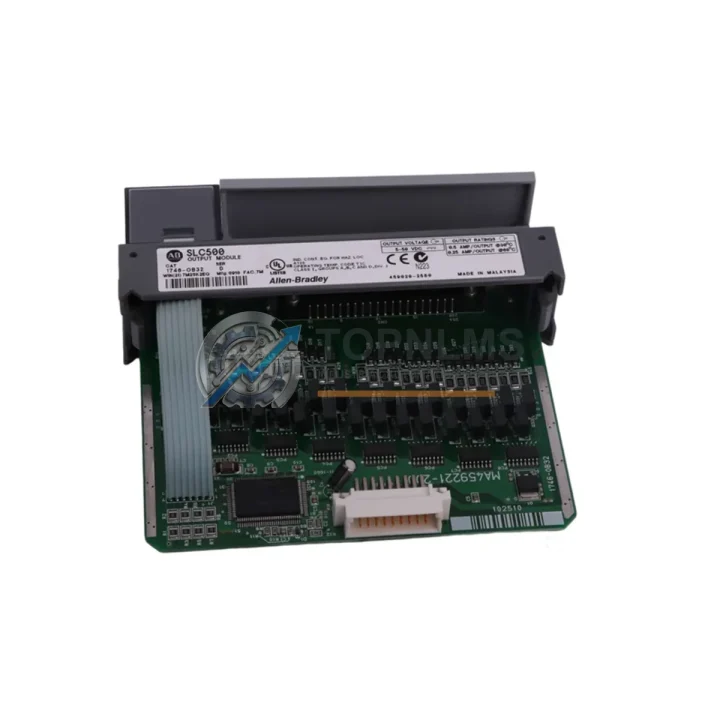

The Allen-Bradley 1746-OB32 is a 32-point sourcing DC output module engineered for the SLC 500 programmable controller platform — one of the most widely deployed control architectures in discrete manufacturing, material handling, automotive assembly, and process automation worldwide. As a genuine original spare part, the 1746-OB32 delivers the electrical performance, signal integrity, and long-term reliability that maintenance engineers depend on when every minute of unplanned downtime carries measurable production cost.

For facilities still operating SLC 500-based control systems, maintaining a verified stock of original output modules is not optional — it is a core element of any responsible preventive maintenance program. The 1746-OB32 slots directly into the 1746 I/O chassis without firmware reconfiguration, preserving your existing ladder logic, I/O addressing, and wiring infrastructure. This plug-and-replace compatibility dramatically reduces mean time to repair (MTTR) during emergency shutdowns and scheduled overhauls alike.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance approach for SLC 500 control panels goes well beyond replacing a single output module. When a 1746-OB32 shows signs of output failure — intermittent load switching, blown output fuses, or erratic field device behavior — experienced maintenance teams treat this as a trigger for a broader panel inspection. Output module degradation is frequently accompanied by stress on adjacent components sharing the same backplane power budget and field wiring circuit.

During a scheduled inspection or emergency replacement of the 1746-OB32, it is best practice to simultaneously verify the condition of the 1746-P4 or 1746-P7 power supply module, which provides regulated 5 VDC and 24 VDC backplane power. A marginal power supply operating near its thermal limit is a common root cause of output module failure. Alongside the power supply, inspect the 1746-IB32 32-point DC input module — the input counterpart to the OB32 — for signs of input filter degradation or optocoupler wear, particularly in high-cycle applications.

The 1746-A10 or 1746-A13 I/O chassis backplane connectors should be cleaned and inspected for oxidation or mechanical damage during any module swap. Corroded backplane contacts are a leading cause of intermittent communication faults that are often misdiagnosed as processor or network issues. While the chassis is open, verify the integrity of the 1747-L543 or 1747-L553 SLC 5/04 or 5/05 processor module — check battery voltage (1747-BA) and confirm no fault codes are latched in the processor status file.

Field wiring connected to the 1746-OB32 typically drives solenoid valves, motor starters, indicator lamps, and relay coils. Inspect the 1746-RT32 removable terminal block for loose terminations and insulation breakdown. For applications driving inductive loads, verify that suppression diodes or RC snubbers are installed at each load — missing suppression is a primary cause of premature output transistor failure. If the control panel includes 1492-J or 1492-W series terminal blocks for field wiring distribution, inspect for thermal discoloration indicating sustained overcurrent conditions.

For panels with DeviceNet or DH-485 communication, inspect the 1747-SDN DeviceNet scanner module or 1747-AIC isolated link coupler for firmware currency and connector integrity. Communication module faults can mask output module issues by preventing the processor from executing the output scan correctly. Finally, if the system includes analog I/O, verify calibration of any 1746-NI8 or 1746-NO4I analog modules — analog drift in process control loops can create abnormal output cycling that accelerates digital output module wear.

Strategic Replacement Solutions

The 1746-OB32 has been a production staple since the SLC 500 platform’s introduction, and many facilities continue to operate these systems well into their third decade of service. Rockwell Automation’s official end-of-life and limited availability notices for SLC 500 hardware make sourcing verified original spare parts increasingly critical for operations that cannot justify a full PLC migration in the near term.

Sourcing a genuine 1746-OB32 from a verified industrial spare parts supplier eliminates the compatibility risks associated with counterfeit or refurbished modules — risks that include incorrect output timing, reduced isolation voltage, and undisclosed firmware revisions that may conflict with existing processor scan cycles. Each unit supplied by TOPNLMS is tested for output continuity, isolation integrity, and backplane communication prior to shipment, ensuring the module performs to original Allen-Bradley specifications from the moment it is installed.

For facilities managing a planned migration from SLC 500 to CompactLogix or ControlLogix platforms, maintaining a buffer stock of 1746-OB32 modules provides operational continuity during the transition period — allowing production to continue on existing lines while new control panels are commissioned in parallel. This strategy avoids the forced emergency migration scenario, which typically carries three to five times the cost of a planned cutover.

TOPNLMS maintains ready stock of 1746-OB32 modules to support both emergency replacement and strategic inventory replenishment programs. Standard lead time is 1–3 business days for in-stock units, with express shipping available for critical downtime situations. All units ship with a 12-month warranty covering manufacturing defects and electrical performance.
