Allen-Bradley 1746-OB32/D Ruggedized Output Module

Product Overview

Allen-Bradley 1746-OB32/D Ruggedized Output Module: Industrial Resilience for Harsh Environments

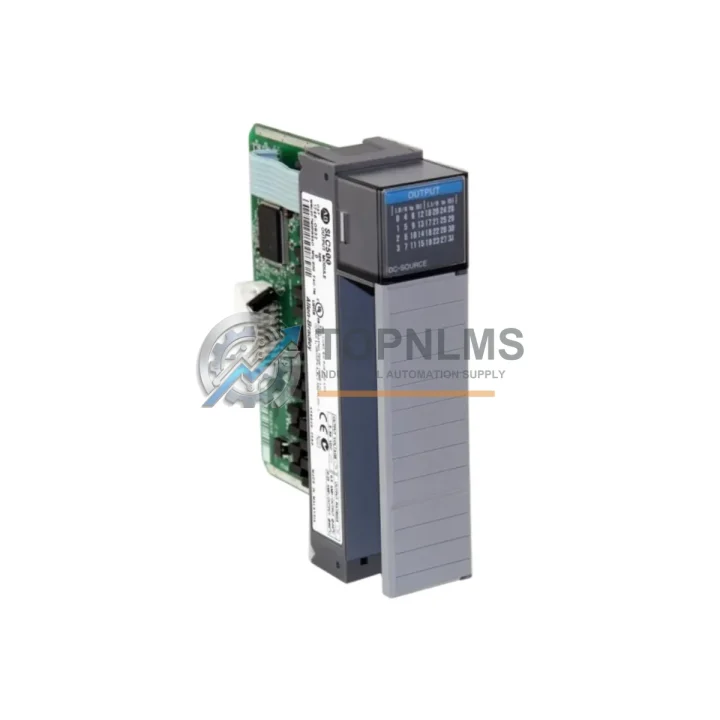

The Allen-Bradley 1746-OB32/D is a 32-point, 24VDC source output module engineered for the SLC 500 programmable controller platform — one of the most widely deployed modular PLC architectures in global industrial automation. Designed to deliver deterministic, high-density digital output control, this module is built to sustain continuous operation across the most demanding industrial environments, including high-temperature foundries, high-humidity water treatment facilities, vibration-intensive mining conveyors, dust-laden cement plants, and EMI-saturated power generation switchgear rooms.

Each of the 32 output channels is individually protected against short-circuit and overload conditions, ensuring that a single field-device fault does not cascade into a system-wide shutdown. The module’s solid-state output architecture eliminates mechanical wear, making it a preferred replacement for aging relay-based output racks in continuous production lines where unplanned downtime carries significant operational cost. With a proven track record across oil and gas wellhead control panels, automotive body-shop transfer lines, and municipal water pumping stations, the 1746-OB32/D represents a benchmark in rugged, high-cycle digital output performance.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated SLC 500 control system, the 1746-OB32/D operates as the final command executor — translating processor logic into real-world actuator signals. Its reliability is directly dependent on the integrity of the surrounding system architecture. The 1746-IB32 32-point 24VDC input module serves as the complementary input counterpart, feeding field sensor data back to the processor while the OB32/D drives solenoids, motor starters, and indicator lamps. Together, these modules form a high-density I/O pair that maximizes slot utilization in the 1746-A4, 1746-A7, or 1746-A13 modular chassis.

Processor selection is equally critical to system stability. The 1747-L553 SLC 5/05 processor, with its built-in Ethernet/IP port, enables remote monitoring and program upload/download without interrupting production — a key advantage in hazardous-area installations where physical access to the control panel is restricted. For installations requiring DeviceNet field-bus connectivity, the 1747-SDN Scanner Module integrates seamlessly into the same chassis, allowing the 1746-OB32/D to coordinate with distributed I/O nodes across the plant floor.

Power integrity is non-negotiable in harsh environments. The 1746-P4 power supply module provides regulated 5VDC and 24VDC backplane power with built-in overcurrent protection, ensuring that voltage transients from heavy motor loads or welding equipment do not propagate into the logic rack. In facilities with frequent power interruptions, pairing the system with a 1606-XLP72E industrial power supply adds an additional layer of ride-through capability.

For safety-critical applications — such as emergency stop circuits in press lines or burner management systems in boiler rooms — the 1791DS-IB12 GuardLogix safety I/O module can be deployed alongside the standard 1746-OB32/D to handle SIL 2-rated safety functions, while the OB32/D continues to manage standard process outputs. Communication integrity across the control network is maintained by the 1747-KFC15 ControlNet interface module, which provides deterministic, scheduled data transfer between the SLC 500 rack and upstream SCADA or DCS systems. In legacy installations where RS-232 or DH-485 communication is still in use, the 1747-PIC interface cable ensures reliable programming and diagnostics without requiring a full network infrastructure upgrade.

Application in Critical Infrastructure

The 1746-OB32/D has established a strong operational record across the most demanding sectors of critical infrastructure. In upstream oil and gas operations, it controls wellhead valve actuators and chemical injection pump solenoids in remote RTU panels, where ambient temperatures can swing from sub-zero winter conditions to +55°C summer heat inside unventilated enclosures. Its solid-state output design eliminates the contact bounce and arcing that would degrade mechanical relays under such thermal cycling.

In underground coal and metal mining, the module drives conveyor belt motor starters, ventilation fan contactors, and dewatering pump controls in environments saturated with coal dust, silica particulate, and high relative humidity. The absence of moving parts and the module’s compliance with IEC 68-2-6 vibration standards make it a reliable choice where shock loads from blasting operations are a routine operational reality.

Municipal water and wastewater treatment plants rely on the 1746-OB32/D to control chlorination dosing pumps, UV disinfection systems, and sludge transfer valves across multiple treatment stages. The module’s 32-point density allows a single slot to manage an entire pump station’s output requirements, reducing panel footprint and simplifying maintenance. In primary aluminum smelting and steel rolling mills, where electromagnetic interference from high-current bus bars and induction furnaces is pervasive, the module’s noise immunity characteristics ensure that output states remain stable and do not generate spurious actuator commands that could damage equipment or injure personnel.

Power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — deploy the 1746-OB32/D in balance-of-plant control systems managing cooling water pumps, lube oil systems, and auxiliary equipment. Its compatibility with the full SLC 500 processor family means that facilities with mixed-generation control infrastructure can standardize on a single I/O platform, simplifying spare parts inventory and technician training requirements.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All 1746-OB32/D modules supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects, functional failures under normal operating conditions, and premature component degradation. Warranty claims are processed with a straightforward RMA procedure — contact [email protected] with your order reference and a description of the fault. Replacement or repair is completed within an agreed lead time, and return shipping costs for confirmed warranty cases are covered by TOPNLMS.

Q2: How is each module tested before shipment?
Every 1746-OB32/D unit undergoes pre-shipment functional verification, including output channel continuity checks, backplane communication integrity tests, and visual inspection for physical damage, counterfeit indicators, and label authenticity. Modules sourced from authorized distribution channels are cross-referenced against Rockwell Automation’s genuine product identifiers. A test report is available upon request for customers with incoming inspection requirements.

Q3: Is the 1746-OB32/D compatible with all SLC 500 chassis and processors?
Yes. The 1746-OB32/D is compatible with all SLC 500 modular chassis (1746-A4, A7, A10, A13) and all SLC 500 processor families (SLC 5/01 through SLC 5/05). It is also backward-compatible with earlier /A, /B, and /C firmware revisions of the SLC 500 platform. Customers migrating from older 1746-OB32 revisions can install the /D revision as a direct drop-in replacement without requiring processor program modifications.

Q4: Can TOPNLMS support long-term or recurring supply requirements for this module?
Yes. TOPNLMS maintains dedicated stock of high-demand SLC 500 I/O modules, including the 1746-OB32/D, to support both emergency breakdown replacements and planned maintenance programs. For customers with annual MRO procurement schedules or multi-site rollout projects, blanket order arrangements and reserved stock agreements are available. Contact [email protected] or call +86 18359293191 to discuss volume pricing and supply continuity terms.
