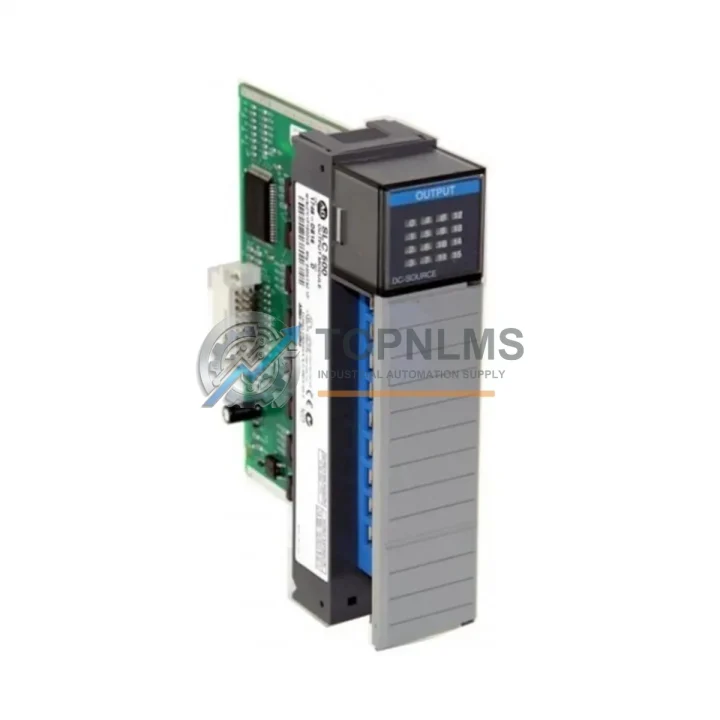

Allen-Bradley 1746-OB16E Ruggedized DC Output Module

Product Overview

Allen-Bradley 1746-OB16E Ruggedized DC Output Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1746-OB16E is a 16-point isolated sourcing DC output module engineered for the SLC 500 programmable controller platform — one of Rockwell Automation’s most proven and widely deployed control architectures in heavy industry. Designed to deliver reliable digital output switching in environments characterized by high temperature, elevated humidity, airborne particulate, mechanical vibration, and electromagnetic interference, the 1746-OB16E is a mission-critical component trusted across continuous production lines, process control panels, and safety-rated control cabinets worldwide.

Each output point is individually isolated, providing superior protection against ground loops, voltage transients, and cross-channel interference — a design feature that becomes indispensable in applications where field devices such as solenoid valves, motor starters, and relay coils share common power rails. The module’s solid-state output architecture eliminates mechanical wear, extending service life in high-cycle applications such as conveyor control, press automation, and batch processing systems.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746-OB16E does not operate in isolation — it is one node in a tightly integrated SLC 500 control system. In a typical control cabinet deployment, it works alongside the 1746-IB16 16-point DC input module to form a complete digital I/O pair, enabling bidirectional field signal management. The 1746-P4 power supply module provides the regulated backplane power that sustains both I/O modules and the 1747-L553 SLC 5/05 processor under full load, even in environments with unstable utility power.

For applications requiring analog process control — such as flow regulation, pressure monitoring, or temperature loop management — the 1746-NI8 analog input module and 1746-NO4I isolated analog output module integrate directly into the same SLC 500 chassis, sharing the same backplane and programming environment. This eliminates the need for external signal converters and reduces panel wiring complexity in space-constrained enclosures.

Communication integrity is maintained through the 1747-SDN DeviceNet scanner module, which connects the SLC 500 rack to distributed field devices — including variable frequency drives, smart sensors, and remote I/O adapters — over a noise-immune DeviceNet network. In facilities where legacy DH+ networks remain in service, the 1747-KE DH+/RS-232 interface module bridges the SLC 500 to upstream SCADA systems and HMI panels without requiring a full network migration.

Surge and transient protection at the field wiring level is provided by dedicated terminal block surge suppressors mounted on 1492-ACABLE series pre-wired cables, which connect directly to the 1746-OB16E’s field-side terminal strip. This wiring approach, combined with the module’s isolated output architecture, creates a multi-layer protection strategy that safeguards both the module and connected field devices from voltage spikes generated by inductive loads such as solenoids and motor contactors.

For safety-rated applications, the SLC 500 platform can be augmented with the 1791DS series safety I/O modules operating under a GuardLogix or Safety PLC supervisory layer, providing SIL 2-rated discrete safety functions — emergency stop monitoring, light curtain feedback, and safety gate interlocking — within the same control architecture.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1746-OB16E controls wellhead valve actuators, chemical injection pump solenoids, and flare ignition systems. Its isolated output design prevents ground potential differences between field instruments and the control panel from causing spurious output activations — a critical safety requirement in classified hazardous areas where the control cabinet is located in a safe zone but field devices are installed in Zone 1 or Zone 2 environments.

In mining and mineral processing, the module drives conveyor belt motor starters, crusher interlock relays, and dust suppression system solenoids. The SLC 500 platform’s proven reliability in high-vibration environments — where constant mechanical shock from blasting, heavy vehicle traffic, and rotating machinery is the norm — makes the 1746-OB16E a preferred choice for both new installations and direct replacement of aging control systems.

In power generation and electrical utilities, the module is deployed in auxiliary control panels for turbine governor systems, transformer cooling fan control, and switchgear interlocking. Its ability to source current to field devices at voltages up to 50 VDC makes it compatible with a wide range of relay coil voltages used in substation automation panels.

In water and wastewater treatment, the 1746-OB16E controls pump motor starters, valve actuators, and chemical dosing systems across lift stations, filtration plants, and distribution networks. The module’s resistance to high-humidity environments — common in wet well pump stations and chemical storage areas — ensures consistent operation without the corrosion-related failures that affect less ruggedized I/O hardware.

In metallurgy and steel production, the module operates within the extreme thermal and electromagnetic environment of electric arc furnaces, rolling mills, and continuous casting lines. Its solid-state output switching eliminates the contact bounce and arc erosion that would degrade mechanical relay outputs under the high-cycle, high-inductive-load conditions typical of these applications.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1746-OB16E?
All 1746-OB16E modules shipped by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional failures under normal operating conditions and includes technical support for installation and commissioning. Warranty claims are processed with priority turnaround to minimize production downtime.

Q2: How is each module tested before shipment?
Every 1746-OB16E unit undergoes pre-shipment functional verification, including backplane communication testing, output point activation testing across all 16 channels, and isolation integrity checks. Modules are inspected for physical condition, connector integrity, and firmware revision compatibility with current SLC 500 processor firmware versions.

Q3: Is the 1746-OB16E compatible with all SLC 500 chassis and processors?
Yes. The 1746-OB16E is compatible with all SLC 500 modular chassis (4-slot, 7-slot, 10-slot, and 13-slot configurations) and all SLC 500 processor families, including the SLC 5/01, 5/02, 5/03, 5/04, and 5/05. It is also compatible with the SLC 500 fixed hardware platform where chassis expansion is used. No firmware or configuration changes are required for drop-in replacement of existing 1746-OB16E modules.

Q4: Can TOPNLMS support long-term supply and emergency replacement requirements?
Yes. TOPNLMS maintains stock of the 1746-OB16E and related SLC 500 I/O modules to support both planned maintenance schedules and emergency breakdown replacement scenarios. Orders placed before the daily cutoff are processed for same-day or next-business-day dispatch. For customers with critical infrastructure dependencies, we offer reserved stock arrangements and priority fulfillment agreements. Contact our technical sales team to discuss your specific supply continuity requirements.
