Allen-Bradley 1746-OA8 Replacement for SLC 500 Series

Product Overview

Allen-Bradley 1746-OA8 Replacement for SLC 500 Series: Smooth Transition from Legacy AC Output Systems

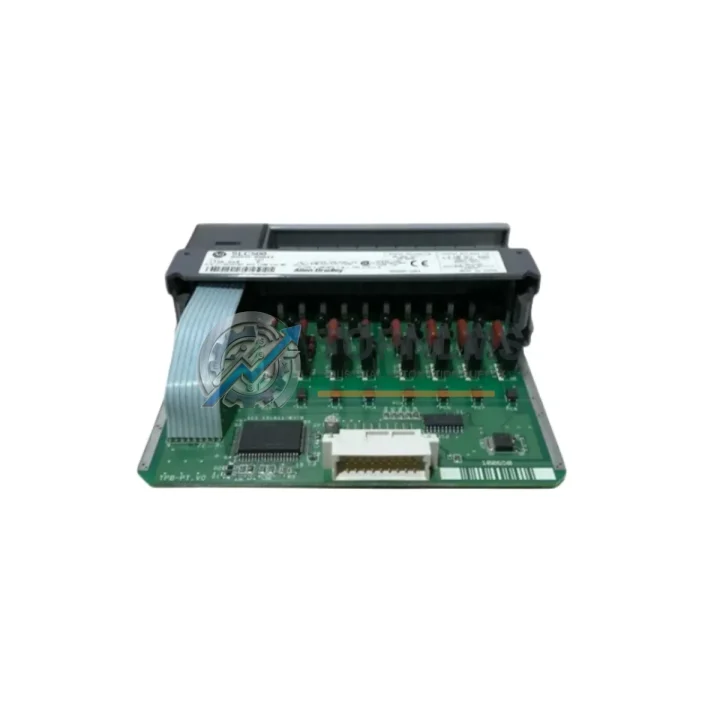

The Allen-Bradley 1746-OA8 is an 8-point, 120/240V AC discrete output module designed for the SLC 500 modular chassis platform. As Rockwell Automation progressively phases out legacy SLC 500 components, many facilities running 1746-series I/O racks face urgent decisions: source a verified replacement unit, or risk extended downtime waiting on obsolete stock. TOPNLMS maintains ready inventory of the 1746-OA8 to support exactly this scenario — whether you need a direct swap for a failed module, a tested spare for a critical line, or a bridge unit while planning a full ControlLogix migration.

The 1746-OA8 slots directly into any SLC 500 modular chassis — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 rack sizes — without chassis modification. Each output point is individually fused and rated for 2A continuous at 120V AC or 240V AC, making it suitable for driving solenoid valves, motor starters, pilot lights, and relay coils in process and discrete manufacturing environments. The module communicates over the SLC 500 backplane using the standard I/O data table structure, meaning your existing RSLogix 500 ladder logic programs require no modification — output file O:x.0 through O:x.7 map identically to the replacement unit.

For facilities still operating SLC 5/03, SLC 5/04, or SLC 5/05 processors alongside mixed 1746-series I/O, the 1746-OA8 integrates without any firmware update or configuration change. The module’s LED status indicators per output point allow field technicians to verify output state during commissioning without a programming terminal, reducing retrofit time on the panel floor. If your control cabinet also houses a 1746-IB16 DC input module, a 1746-OW16 relay output module, or a 1746-NI4 analog input module in adjacent slots, the 1746-OA8 replacement will not disturb their addressing or operation — the SLC 500 backplane handles slot-based I/O mapping independently.

Many upgrade projects involve replacing the 1746-OA8 alongside other aging components in the same rack. Common co-replacement items include the 1746-P2 or 1746-P4 power supply modules, which may show capacitor degradation after 10–15 years of continuous operation. If your project also involves migrating communications from DH-485 to EtherNet/IP, the 1746-BAS or a 1761-NET-ENI Ethernet interface adapter can be added to the existing SLC 500 chassis without replacing the I/O layer, preserving your 1746-OA8 investment during a phased migration. For sites planning a longer-term transition to the ControlLogix or CompactLogix platform, the 1746-OA8 can serve as a reliable interim output module while the new 1769-OA8 CompactLogix equivalent is being commissioned in parallel.

Physical installation follows standard SLC 500 module insertion procedures: power down the chassis, align the module with the backplane connector, seat firmly, and secure the locking tab. Wiring connects to the removable 20-pin terminal block — the same pinout as the original 1746-OA8 — so existing field wiring can be transferred directly without re-termination. Output common (COM) terminals are grouped in pairs, consistent with the original module wiring diagram. If your panel uses a 1746-HSCE high-speed counter module or a 1746-QS stepper output module in the same chassis, those modules are unaffected by the 1746-OA8 swap.

For DCS migration projects where a legacy Honeywell, Yokogawa, or ABB distributed control system is being partially replaced with SLC 500 or ControlLogix islands, the 1746-OA8 is frequently used as the discrete output interface for valve actuators and motor control center (MCC) starters. Its 120/240V AC rating matches the control voltage levels common in DCS marshalling cabinets, simplifying the signal interface without requiring interposing relays in most cases.

TOPNLMS ships the 1746-OA8 with full functional test documentation. Each unit is bench-tested for output switching, LED indication, and backplane communication before dispatch. Units are packed in anti-static foam with original-style labeling. Standard lead time from our Xiamen warehouse is 1–3 business days for in-stock units, with DHL Express and FedEx International Priority available for urgent requirements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SLC 500 output module replacement rarely happens in isolation. During the same maintenance window, engineering teams commonly address adjacent components that share the same chassis, power budget, or field wiring trough. The 1746-P2 and 1746-P4 power supply modules are frequent co-replacements — after a decade of continuous duty, their output voltage regulation may drift outside the ±1% tolerance required for reliable I/O operation. Replacing the power supply alongside the 1746-OA8 eliminates a second unplanned outage within months.

If the chassis also contains a 1746-IB16 24V DC input module handling proximity sensor or pushbutton inputs, its terminal block wiring can be documented and transferred during the same shutdown. Similarly, a 1746-OW16 relay output module used for high-inrush loads such as motor starters or heating elements can be inspected and replaced in the same slot-by-slot sequence. For analog signal chains, the 1746-NI4 or 1746-NO4I analog I/O modules should be verified for calibration drift if the chassis has been in service for more than five years.

Communication upgrades are often bundled with I/O replacements. If the SLC 5/05 processor’s built-in EtherNet/IP port is already in use but additional remote I/O nodes are needed, a 1747-AENTR EtherNet/IP adapter can extend the I/O network without replacing the processor. For legacy DH+ networks still connecting SLC processors to PanelView HMI terminals, a 1761-NET-AIC Advanced Interface Converter maintains DH+ connectivity while the migration plan is finalized. Programming cable access via a 1747-UIC USB-to-DH485 interface adapter allows RSLogix 500 online edits during commissioning without disrupting the running program.

Panel builders integrating the replacement 1746-OA8 into a new or refurbished control cabinet should also consider 24V DC power distribution via a 1606-XLP power supply for auxiliary circuits, and signal isolation via DIN-rail-mounted signal isolators where field wiring runs exceed 50 meters or cross electrical noise sources such as VFD output cables.

Retrofit Guidance FAQ

Q: Will my existing RSLogix 500 program work without modification?
A: Yes. The 1746-OA8 uses the standard SLC 500 output data table (O:x.0–O:x.7). No rung edits, address remapping, or I/O configuration changes are required. Simply go online after module insertion to verify output status.

Q: Can I reuse the existing field wiring?
A: Yes. The replacement 1746-OA8 uses the same 20-pin removable terminal block with identical pinout. Disconnect the terminal block from the failed module, transfer it to the replacement unit, and reconnect — no re-termination needed.

Q: Is the module compatible with 240V AC field devices?
A: Yes. Each output point is rated for 120V or 240V AC operation. The module automatically handles both voltage levels; no jumper or DIP switch configuration is required.

Q: What chassis sizes are supported?
A: The 1746-OA8 is compatible with all SLC 500 modular chassis: 1746-A4 (4-slot), 1746-A7 (7-slot), 1746-A10 (10-slot), and 1746-A13 (13-slot). It occupies one slot and does not require an adjacent empty slot.

Q: How do I verify the module is functioning after installation?
A: Each output point has a dedicated green LED indicator. Force the output ON in RSLogix 500 (with key switch in REM position) and verify the corresponding LED illuminates and the field device activates. This can be done without a full program run.

Q: Can this module be used during a phased migration to ControlLogix?
A: Yes. The 1746-OA8 can remain in service in the SLC 500 chassis while a parallel ControlLogix system is commissioned. Once the new system is validated, the SLC 500 chassis can be decommissioned without affecting the ControlLogix I/O layer.

Q: What communications protocols does the SLC 500 platform support with this module installed?
A: The 1746-OA8 is a local I/O module and does not independently handle communications. The SLC 5/03 supports DH-485 and RS-232; the SLC 5/04 adds DH+; the SLC 5/05 adds EtherNet/IP. The output module operates identically across all processor variants.

Warranty Assurance

Every 1746-OA8 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment test procedure includes backplane communication verification, per-point output switching test at rated voltage, LED indicator check, and terminal block continuity test. Units that do not pass all test criteria are not shipped.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement dispatch within 2 business days of fault confirmation. Our technical support team is reachable by email at [email protected] or by phone at +86 18359293191 to assist with installation questions, compatibility verification, or warranty claims.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Export packing is available for international freight. Payment terms and volume pricing are available on request for MRO and OEM customers.

TOPNLMS maintains stock of the 1746-OA8 and related SLC 500 components to support both emergency replacement and planned maintenance programs. We understand that unplanned downtime in a production environment carries costs that far exceed the price of a spare module — our inventory and logistics model is built around that reality.
