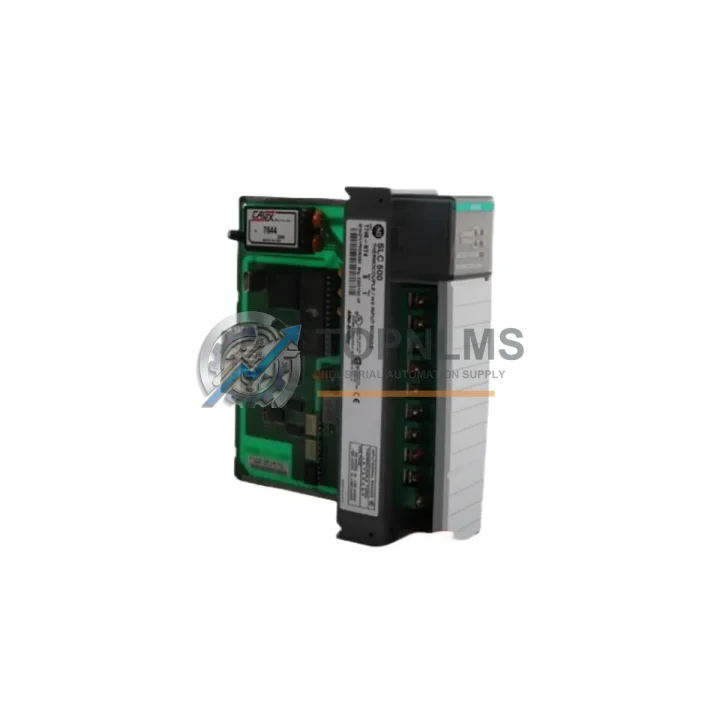

Allen-Bradley 1746-NT4 Ruggedized Thermocouple Input Module

Product Overview

Allen-Bradley 1746-NT4 Ruggedized Thermocouple Input Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1746-NT4 is a four-channel thermocouple input module engineered for the SLC 500 programmable controller platform — one of Rockwell Automation’s most enduring and field-proven control architectures. Designed to operate reliably in the most demanding industrial conditions, the 1746-NT4 delivers accurate temperature measurement and signal integrity even in environments characterized by extreme heat, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference. Whether deployed on a continuous steel rolling line, inside a petrochemical processing unit, or within a water treatment facility’s control cabinet, this module maintains the measurement precision and communication stability that safety-critical operations demand.

The 1746-NT4 accepts inputs from J, K, E, T, R, S, B, and N type thermocouples, providing broad compatibility across industrial temperature sensing applications. Its onboard cold-junction compensation and open-thermocouple detection circuitry ensure that even in the event of a sensor fault, the SLC 500 CPU — such as the 1747-L543 or 1747-L553 — receives a diagnostic flag rather than a silent erroneous reading. This fail-safe behavior is fundamental to process safety in industries where temperature excursions can trigger equipment damage, product loss, or personnel hazards.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746-NT4 does not operate in isolation — it is one critical node within a broader SLC 500 control system architecture that must function cohesively under harsh field conditions. In a typical control cabinet deployment, the module shares a 1746-A10 chassis with digital I/O modules such as the 1746-IB16 (16-channel DC input) and 1746-OB16 (16-channel DC output), which handle discrete field signals from limit switches, solenoid valves, and motor starters. The SLC 500 CPU — commonly a 1747-L543 with 16K words of user memory — orchestrates all I/O scanning and ladder logic execution, while the 1746-P4 power supply provides regulated 5 VDC and 24 VDC backplane power with built-in short-circuit protection.

For applications requiring analog process variable control alongside temperature measurement, the 1746-NI4 (4-channel analog current/voltage input) or 1746-NO4I (4-channel analog current output) modules are frequently installed in adjacent slots, enabling closed-loop PID control of flow, pressure, and level in the same chassis as the 1746-NT4. In facilities where communication with SCADA systems or distributed control networks is required, the 1747-SDN DeviceNet Scanner or 1747-KE RS-232/DH-485 Interface Module provides the protocol bridge between the SLC 500 backplane and plant-wide communication infrastructure.

Surge and transient protection at the field wiring terminals is equally important. Industrial-grade terminal blocks and surge suppressors — such as those from the 1492 wiring system — protect the 1746-NT4’s sensitive analog front-end from voltage spikes induced by nearby variable frequency drives, large motor contactors, or lightning events on long cable runs. In safety-instrumented system (SIS) architectures, the 1746-NT4 may work alongside dedicated safety relay modules and emergency stop circuits to provide temperature-based process shutdown triggers, ensuring compliance with IEC 61511 functional safety requirements.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 1746-NT4 is deployed to monitor wellhead temperatures, heat exchanger outlet conditions, and pipeline fluid temperatures across remote pump stations. Its ability to accept multiple thermocouple types in a single module reduces cabinet footprint and simplifies wiring in explosion-proof enclosures where space is at a premium. The module’s open-thermocouple detection ensures that a broken sensor wire triggers an immediate alarm in the SLC 500 program rather than allowing a false low-temperature reading to mask a developing process hazard.

In electric power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — the 1746-NT4 monitors bearing temperatures, winding temperatures, and cooling water temperatures on rotating machinery. Continuous, accurate temperature data fed into the SLC 500 control program enables predictive maintenance algorithms that schedule bearing replacements before catastrophic failure, reducing unplanned downtime on generation assets that must maintain high availability factors.

Mining and mineral processing operations subject control equipment to extreme dust loading, vibration from blasting and crushing operations, and wide ambient temperature swings between surface and underground environments. The 1746-NT4’s robust construction and sealed module housing allow it to maintain calibration accuracy in these conditions, providing reliable kiln temperature, dryer temperature, and conveyor motor temperature data to the SLC 500 system managing the processing line. In water and wastewater treatment plants, the module monitors digester temperatures, UV disinfection system temperatures, and chemical dosing reactor temperatures, supporting the precise process control required for regulatory compliance.

Metallurgical and steel production environments represent perhaps the most demanding application context for any control system component. Radiant heat from furnaces, electromagnetic interference from arc furnaces and induction heaters, and mechanical shock from rolling mill operations all challenge the long-term reliability of installed hardware. The 1746-NT4, when properly installed in a thermally managed control cabinet with adequate ventilation and EMI shielding, consistently delivers the measurement accuracy and system uptime that continuous casting and hot rolling operations require.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1746-NT4?
Every 1746-NT4 shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost to the customer. Our warranty commitment reflects our confidence in the quality of every unit we stock and ship.

Q2: How is each 1746-NT4 tested before shipment?
Prior to dispatch, each 1746-NT4 undergoes functional verification including backplane communication checks, channel input response testing across the supported thermocouple type range, and open-thermocouple detection confirmation. Modules that do not pass all functional checkpoints are quarantined and not offered for sale. A test record is maintained for each unit, and customers may request test documentation upon order confirmation.

Q3: Is the 1746-NT4 compatible with all SLC 500 chassis and CPU versions?
Yes. The 1746-NT4 is compatible with all SLC 500 modular chassis (1746-A4, A7, A10, A13) and all SLC 500 CPU variants including the 1747-L20, L30, L40, L541, L542, L543, and L553. It is also compatible with the MicroLogix 1500 (1764 series) when used with the appropriate expansion chassis. No firmware upgrade to the CPU is required for standard thermocouple input operation.

Q4: Can TOPNLMS support long-term or repeat procurement of the 1746-NT4?
Yes. TOPNLMS maintains dedicated stock of SLC 500 series modules including the 1746-NT4 to support both emergency replacement and planned maintenance procurement programs. We understand that industrial facilities often require multiple units over the lifecycle of an installed SLC 500 system, and we work with customers to establish supply agreements that ensure consistent availability, stable pricing, and priority fulfillment for repeat orders. Contact our team to discuss volume pricing and scheduled delivery arrangements.
