Allen-Bradley 1746-NR8 Ruggedized RTD/TC Input Module

Product Overview

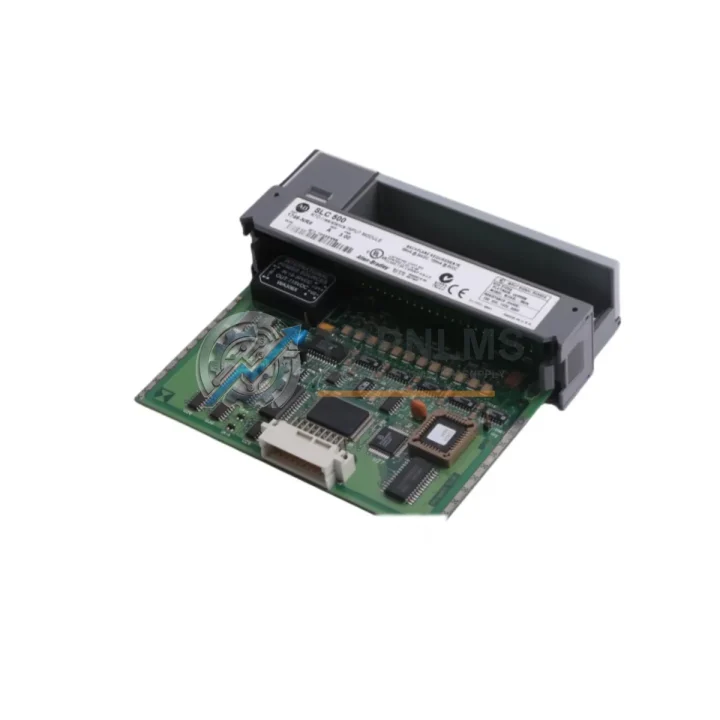

Allen-Bradley 1746-NR8 Ruggedized RTD/TC Analog Input Module for Harsh Industrial Environments

The Allen-Bradley 1746-NR8 is an 8-channel RTD and thermocouple analog input module engineered for the SLC 500 programmable controller platform. Designed to operate reliably in the most demanding industrial conditions — including high-temperature process lines, high-humidity coastal facilities, dust-laden mining environments, and electrically noisy heavy manufacturing floors — the 1746-NR8 delivers precise temperature measurement and signal integrity where it matters most. Whether deployed in continuous production lines or safety-critical infrastructure, this module is built to sustain performance without compromise.

The 1746-NR8 accepts a wide range of RTD types (PT100, PT1000, Ni120, Cu10) and thermocouple types (J, K, E, T, R, S, B), making it a versatile front-end acquisition module for temperature-intensive processes. Its 16-bit resolution and on-board cold junction compensation ensure measurement accuracy even under fluctuating ambient conditions. The module communicates over the SLC 500 backplane with full compatibility with the 1746 I/O chassis family, integrating seamlessly into existing Allen-Bradley SLC 5/03, SLC 5/04, and SLC 5/05 processor-based control architectures.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746-NR8 is rarely deployed in isolation. In a fully integrated SLC 500 control cabinet, it works in concert with a range of complementary Allen-Bradley components to deliver a complete, fault-tolerant automation solution. The SLC 5/05 processor module (1747-L553) provides the CPU backbone, executing ladder logic and managing I/O communication across the backplane. Discrete I/O is typically handled by modules such as the 1746-IB16 (16-channel DC input) and 1746-OB16 (16-channel DC output), which manage field device signals alongside the analog inputs from the 1746-NR8.

For analog output control — closing the loop on temperature regulation or valve positioning — the 1746-NO4I analog output module provides four isolated current output channels. Power integrity across the chassis is maintained by the 1746-P4 power supply module, which delivers regulated 5 VDC and 24 VDC rails with built-in overload protection. In environments with significant electromagnetic interference, such as arc furnace facilities or variable frequency drive (VFD) rooms, the 1746-NR8’s differential input architecture suppresses common-mode noise, while proper grounding of the 1746 chassis and use of shielded thermocouple extension cables further enhances signal fidelity.

Communication-intensive installations may pair the SLC 500 system with a 1747-SDN DeviceNet Scanner module or a 1747-KE RS-232/DH-485 interface module, enabling the 1746-NR8’s temperature data to be transmitted upstream to SCADA systems or MES platforms. Safety-critical zones may additionally incorporate a 1746-OBP16 relay output module or an external safety relay module to enforce protective shutdown logic based on over-temperature thresholds detected by the 1746-NR8. Terminal block assemblies and wiring duct within the control cabinet complete the installation, ensuring organized, maintainable field wiring for all eight thermocouple or RTD channels.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1746-NR8 is deployed in wellhead control panels and compressor station automation systems, where accurate temperature monitoring of gas streams, bearing surfaces, and heat exchangers is essential for both operational efficiency and safety compliance. Its tolerance for wide ambient temperature swings and resistance to vibration from rotating machinery make it a dependable choice in these environments.

In coal-fired and gas-fired power generation plants, the module monitors furnace temperatures, steam line conditions, and turbine bearing temperatures, feeding real-time data to SLC 500 processors that govern burner management and load-following control. Water treatment facilities rely on the 1746-NR8 for monitoring chemical dosing reactor temperatures and UV disinfection system thermal profiles, where measurement drift could compromise water quality compliance.

In metallurgical and steel mill applications, the module withstands the intense radiant heat and electromagnetic interference generated by induction furnaces and rolling mill drives. Mining operations — particularly underground coal and hard-rock metal mines — benefit from the module’s robust construction in environments characterized by dust ingress, mechanical shock, and fluctuating power quality. Chemical processing plants use the 1746-NR8 in reactor temperature control loops, where precise thermocouple input is critical to maintaining reaction selectivity and preventing runaway conditions.

Across all these sectors, the 1746-NR8’s proven field reliability, long production history, and wide availability as a spare part make it a preferred choice for both new installations and maintenance replacement programs. TOPNLMS maintains stock of the 1746-NR8 specifically to support the ongoing operational needs of facilities running legacy SLC 500 infrastructure, where minimizing downtime during module replacement is a primary procurement concern.

Security & Quality FAQ

Q1: Does the 1746-NR8 come with a warranty?
Yes. Every 1746-NR8 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. If the module fails under normal operating conditions within this period, we provide a replacement or full refund. Our warranty reflects our confidence in the quality of every unit we stock and test before dispatch.

Q2: How is each unit tested before shipment?
All 1746-NR8 modules undergo pre-shipment functional inspection, including visual examination for physical damage, connector integrity checks, and where applicable, power-on verification. Units sourced from certified supply chains are cross-referenced against manufacturer documentation to confirm authenticity and revision compatibility before being added to our inventory.

Q3: Is the 1746-NR8 compatible with my existing SLC 500 chassis and processor?
The 1746-NR8 is compatible with all standard 1746 I/O chassis configurations (4, 7, 10, and 13-slot) and is supported by SLC 5/03, SLC 5/04, and SLC 5/05 processors running RSLogix 500 software. If you are unsure about revision compatibility or have a specific chassis configuration, contact our technical team before ordering — we are happy to confirm compatibility at no charge.

Q4: Can TOPNLMS support long-term or recurring supply of the 1746-NR8?
Yes. TOPNLMS specializes in the sustained supply of industrial automation components, including legacy and hard-to-source Allen-Bradley SLC 500 series modules. We maintain buffer stock of high-demand items like the 1746-NR8 to support planned maintenance schedules, emergency replacements, and multi-unit project requirements. Contact us to discuss blanket order arrangements or priority allocation for your facility.
