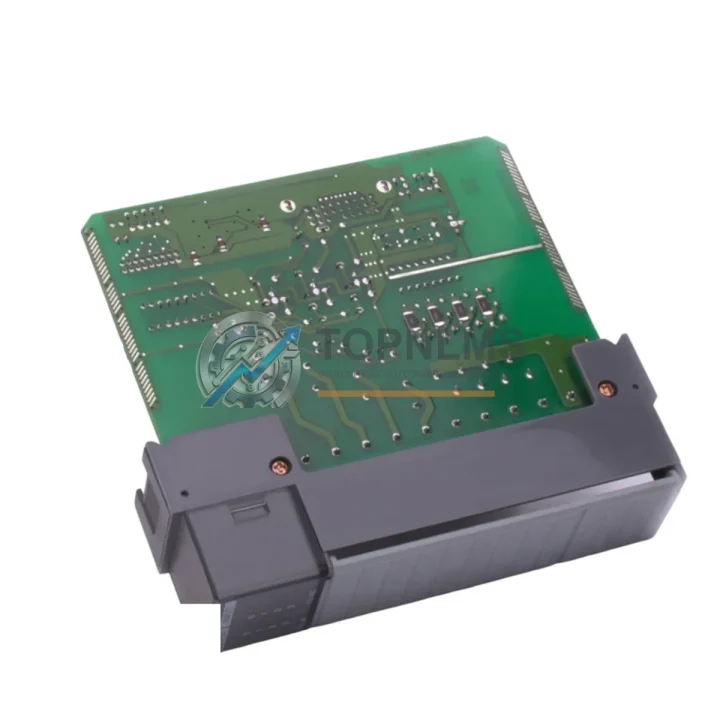

Allen-Bradley 1746-NOI4I Ruggedized Analog Output Module

Product Overview

Allen-Bradley 1746-NOI4I Ruggedized Isolated Analog Output Module for Harsh Industrial Environments

The Allen-Bradley 1746-NOI4I is a 4-channel isolated analog output module engineered for the SLC 500 programmable controller platform. Designed to meet the demanding requirements of continuous industrial operations, this module delivers stable, precision analog signal output in environments characterized by high temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference. Its channel-to-channel isolation architecture ensures that signal integrity is maintained even when individual field devices experience ground faults or transient voltage spikes — a critical requirement in oil & gas, mining, power generation, and heavy manufacturing facilities.

In process control applications where a single point of failure can trigger costly production shutdowns, the 1746-NOI4I provides the reliability that plant engineers and maintenance teams depend on. Each of its four output channels independently drives 4–20 mA current loops or ±10 V voltage signals to field instruments such as control valves, variable frequency drives, and electro-pneumatic positioners. The module slots directly into any SLC 500 fixed or modular chassis — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 — and is fully recognized by RSLogix 500 and Studio 5000 Logix Designer for seamless configuration and diagnostics.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746-NOI4I is rarely deployed in isolation. In a fully integrated SLC 500 control cabinet, it operates alongside complementary modules that together form a robust, fault-tolerant automation architecture. On the input side, the Allen-Bradley 1746-NI4 4-channel analog input module acquires process variables — temperature, pressure, flow — and feeds them to the SLC 500 processor, while the 1746-NOI4I closes the loop by issuing corrective output commands to field actuators. For discrete I/O expansion, the 1746-OB16 16-point 24 V DC output module and 1746-IB16 input module handle on/off control of solenoids, motor starters, and pilot lights within the same chassis.

Power integrity is foundational to analog accuracy. The 1746-P4 SLC 500 power supply provides regulated 5 V and 24 V DC rails to the chassis backplane, ensuring that the 1746-NOI4I’s digital-to-analog conversion circuitry operates free from power-line noise. In facilities where the control panel is exposed to high-voltage switching transients — common in motor control centers and variable frequency drive enclosures — supplementary surge protection devices on the 24 V DC bus further safeguard signal quality.

For communication-intensive architectures, the 1747-SDN DeviceNet scanner module and 1747-KE DH-485 to RS-232C interface module extend the SLC 500’s connectivity to field networks and SCADA systems, enabling the analog output data generated by the 1746-NOI4I to be monitored and adjusted remotely. In safety-critical zones, the system is often complemented by a Guardmaster 440C-CR30 configurable safety relay or a dedicated safety I/O module to enforce SIL 2 protective functions independently of the standard control path. Terminal blocks from the 1492-W series provide reliable field wiring termination points, reducing the risk of loose connections that could introduce signal drift in the analog output loop.

Application in Critical Infrastructure

Across critical infrastructure sectors, the 1746-NOI4I has established a long service record in applications where unplanned downtime carries severe operational and safety consequences. In oil and gas processing facilities, the module drives control valve positioners on separator vessels and heat exchangers, maintaining precise flow ratios in hydrocarbon separation trains. Its channel isolation prevents ground loops that are endemic in large-scale piping systems with multiple earthing points.

In mining and mineral processing operations, the module controls variable-speed conveyor drives and slurry pump VFDs in environments saturated with conductive dust and subject to continuous mechanical vibration from crushers and ball mills. The SLC 500 platform’s proven tolerance for such conditions — combined with the 1746-NOI4I’s robust output circuitry — makes it a preferred choice for brownfield upgrades where replacing the entire control system is not economically viable.

Water and wastewater treatment plants rely on the module to regulate chemical dosing pumps and aeration blower drives, where precise 4–20 mA output directly governs the concentration of treatment chemicals entering the process stream. Any signal interruption or drift can result in regulatory non-compliance, making the module’s isolation and accuracy specifications operationally critical.

In power generation and substation automation, the 1746-NOI4I interfaces with excitation control systems and automatic voltage regulators, providing the stable analog reference signals required for grid-synchronization operations. Metallurgical and steel production facilities use the module in rolling mill tension control and furnace temperature regulation loops, where the combination of high ambient temperatures and electromagnetic noise from induction heating equipment tests the limits of standard analog hardware — conditions the 1746-NOI4I is specifically rated to withstand.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will arrange a replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Modules are inspected upon return, and replacements are typically dispatched within 3–5 business days.

Q2: How is each unit tested before shipment?
Every 1746-NOI4I unit in TOPNLMS inventory undergoes a pre-shipment functional verification that includes power-on self-test, channel output accuracy check across the full 4–20 mA and ±10 V ranges, and isolation integrity verification. Units that do not meet Allen-Bradley’s published specifications are quarantined and not offered for sale. A test report is available upon request for customers with documented quality assurance requirements.

Q3: Is this module compatible with newer Rockwell Automation platforms such as ControlLogix or CompactLogix?
The 1746-NOI4I is designed exclusively for the SLC 500 chassis backplane and is not directly compatible with ControlLogix (1756 series) or CompactLogix (1769 series) platforms. For customers migrating to newer architectures, TOPNLMS can advise on equivalent analog output modules — such as the 1756-OF8 for ControlLogix or the 1769-OF4 for CompactLogix — and can supply both legacy and current-generation hardware to support phased migration strategies.

Q4: Can long-term supply continuity be guaranteed for this legacy module?
TOPNLMS maintains dedicated stock of SLC 500 series modules, including the 1746-NOI4I, to support customers operating legacy systems with extended service life requirements. We source from verified distribution channels and can provide advance purchase agreements for customers requiring guaranteed availability over multi-year maintenance contracts. For large-quantity or scheduled procurement inquiries, contact our technical sales team directly.
