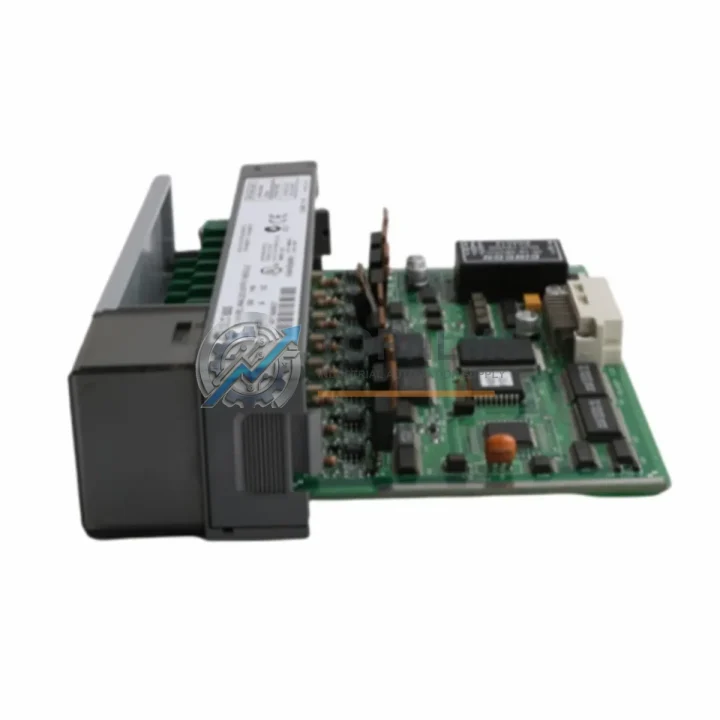

Allen-Bradley 1746-NO8I Ruggedized Analog Output Module for Harsh Environments

Product Overview

Allen-Bradley 1746-NO8I Ruggedized Analog Output Module for Harsh Environments

The Allen-Bradley 1746-NO8I is an 8-channel isolated analog output module engineered for the SLC 500 programmable controller platform. Designed to deliver precision signal conditioning and robust electrical isolation across every channel, this module is purpose-built to sustain continuous, fault-free operation in the most demanding industrial environments — including high-temperature foundries, high-humidity water treatment facilities, dust-laden mining galleries, vibration-intensive heavy press lines, and electromagnetically noisy power generation switchgear rooms. Where process continuity is non-negotiable, the 1746-NO8I provides the signal integrity and mechanical resilience that mission-critical control architectures demand.

Each of the eight output channels supports both current (4–20 mA) and voltage (0–10 V / ±10 V) output modes, selectable per channel via jumper configuration. Full channel-to-channel and channel-to-backplane isolation eliminates ground loops and prevents fault propagation across the control loop — a decisive advantage in multi-drive systems where variable frequency drives, servo amplifiers, and proportional valve controllers share a common cabinet. The module slots directly into any SLC 500 fixed or modular chassis, including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 chassis families, and is fully compatible with SLC 5/01, 5/02, 5/03, 5/04, and 5/05 processors.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated SLC 500 control cabinet, the 1746-NO8I analog output module operates as the precision signal backbone connecting the processor to field actuators. The SLC 5/04 processor (1747-L541) manages ladder logic execution and communicates output data to the 1746-NO8I via the SLC 500 backplane at scan-cycle speeds that support tight closed-loop control. Alongside the analog output module, the 1746-NI8 8-channel analog input module provides the feedback signals — temperature, pressure, flow — that complete the control loop, while the 1746-IB16 and 1746-OB16 digital I/O modules handle discrete interlocks and safety permissives.

Power integrity is maintained by the 1746-P4 power supply, which delivers regulated 5 VDC and 24 VDC backplane power with sufficient headroom for fully populated chassis configurations. In installations where the SLC 500 system must communicate upstream to a supervisory SCADA or DCS layer, the 1747-SDN DeviceNet Scanner module or the 1747-KE DH-485 to RS-232 interface module provides the protocol bridge without disrupting analog output performance. For applications requiring functional safety compliance, the 1791DS-IB8XOBV4 GuardI/O safety module can be integrated into the same control cabinet to manage emergency stop circuits and safety-rated interlocks independently of the standard I/O rack.

In variable-speed drive applications — common in pump stations, compressor skids, and conveyor systems — the 1746-NO8I provides the 4–20 mA speed reference signal to PowerFlex 40 and PowerFlex 70 variable frequency drives, ensuring smooth acceleration ramps and precise speed regulation even under fluctuating load conditions. The full channel isolation prevents drive-generated switching noise from coupling back into the SLC 500 backplane, protecting processor integrity and eliminating nuisance faults. Surge protection terminal blocks and shielded instrumentation cable further reinforce signal quality across long cable runs in large industrial facilities.

Application in Critical Infrastructure

In upstream oil and gas production facilities, the 1746-NO8I controls the valve positioners on wellhead choke manifolds and separator pressure control loops, where signal accuracy directly affects production yield and process safety. The module’s per-channel isolation is essential in these environments, where cathodic protection systems and high-voltage electrical infrastructure create persistent ground potential differences across the field instrument network.

In coal and hard-rock mining operations, the 1746-NO8I drives the speed references for conveyor belt variable frequency drives and controls the proportional hydraulic valves on longwall shearer cutting drums. The module’s rated operating temperature range and vibration compliance ensure reliable performance in underground galleries where ambient temperatures fluctuate and mechanical vibration from blasting and heavy equipment is continuous.

In thermal and hydroelectric power generation plants, the 1746-NO8I provides the analog setpoint signals for turbine governor control loops and boiler feedwater flow control valves. In these applications, the module operates within SLC 500 racks installed in high-voltage switchgear rooms, where electromagnetic interference from bus bars and transformer switching is severe. The module’s EMI immunity rating and backplane isolation architecture maintain signal fidelity without requiring additional signal conditioning hardware.

In municipal water treatment and wastewater facilities, the 1746-NO8I controls chemical dosing pump speeds, aeration blower variable frequency drives, and UV disinfection intensity setpoints. The module’s 4–20 mA current output mode is preferred in these installations for its inherent immunity to voltage drop across long cable runs between the control room and remote pump stations.

In steel mills and aluminum smelters, the 1746-NO8I operates in control cabinets exposed to radiant heat from furnaces and induction heating equipment. The module’s 0–60 °C operating range and UL/CE certifications support continuous duty in these thermally demanding environments, where unplanned downtime carries significant production cost penalties.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the failure mode. Replacement units are dispatched after fault verification, typically within 3–5 business days.

Q2: How is each 1746-NO8I module tested before shipment?
Every 1746-NO8I unit undergoes pre-shipment functional verification including backplane communication check, per-channel analog output accuracy test across the full 4–20 mA and 0–10 V ranges, isolation integrity verification, and visual inspection for physical damage. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for customers with incoming inspection requirements.

Q3: Is the 1746-NO8I compatible with my existing SLC 500 chassis and processor firmware?
The 1746-NO8I is compatible with all SLC 500 modular chassis (1746-A4 through 1746-A13) and all SLC 5/01 through SLC 5/05 processors. No firmware upgrade is required for standard analog output operation. For systems running RSLogix 500 revision 7.x or later, the module is recognized automatically during I/O configuration. If you are integrating into an older SLC 5/01 or 5/02 system, contact our technical team to confirm chassis slot addressing compatibility before ordering.

Q4: Can TOPNLMS support long-term supply for ongoing maintenance and spare parts programs?
Yes. TOPNLMS maintains dedicated inventory of the 1746-NO8I and related SLC 500 I/O modules to support planned maintenance shutdowns, emergency breakdowns, and multi-year spare parts programs. We can provide scheduled delivery agreements, reserved stock allocations, and consolidated shipments for customers managing large installed bases of SLC 500 systems. Contact [email protected] or call +86 18359293191 to discuss your supply program requirements.
