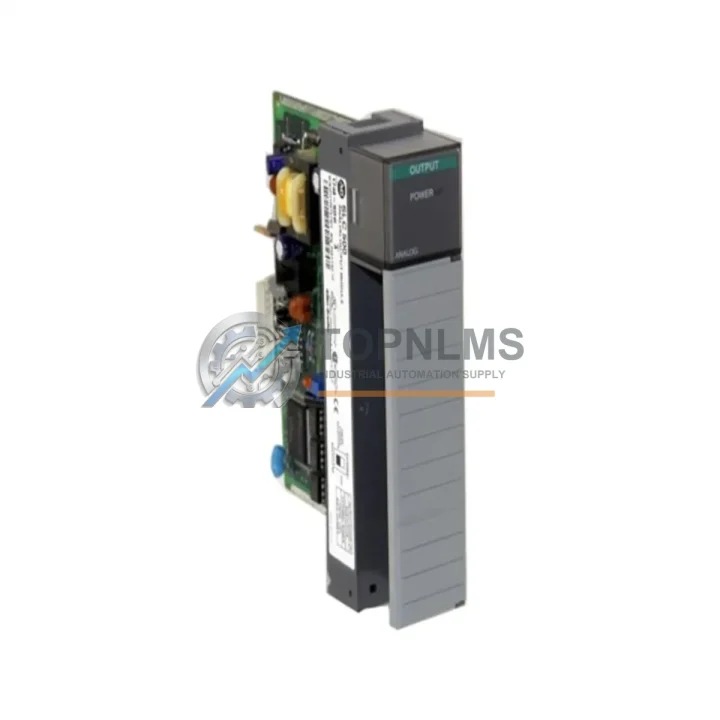

Allen-Bradley 1746-NIO4I Ruggedized Analog I/O Module for Harsh Environments

Product Overview

Allen-Bradley 1746-NIO4I Ruggedized Analog I/O Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1746-NIO4I is a 4-channel isolated analog combination input/output module engineered for the SLC 500 programmable controller platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process lines, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing floors — the 1746-NIO4I delivers the signal integrity and electrical isolation that mission-critical automation systems require.

Each of the four channels is individually isolated, providing robust protection against ground loops, common-mode voltage transients, and electromagnetic interference (EMI) that are endemic to industrial power environments. Whether deployed in a petrochemical control cabinet alongside variable frequency drives, or integrated into a water treatment SCADA loop with multiple field transmitters, the 1746-NIO4I maintains measurement accuracy and output fidelity without compromise.

TOPNLMS stocks the 1746-NIO4I as a verified, tested spare and replacement module. Every unit undergoes functional inspection prior to dispatch, and is covered by our 12-Month Quality Warranty. Orders are processed and shipped within 1–3 business days from our Xiamen warehouse, with global logistics support for customers across Southeast Asia, the Middle East, Europe, and the Americas.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746-NIO4I is most effective when deployed as part of a fully coordinated SLC 500 control architecture. In a typical modular chassis, it operates alongside the 1746-IB16 digital input module and the 1746-OB16 digital output module, collectively handling both discrete and analog field signals within a single rack. The SLC 5/04 or SLC 5/05 processor — such as the 1747-L541 or 1747-L553 — orchestrates all I/O scanning and ladder logic execution, while the 1746-P4 power supply module provides stable, regulated backplane power even under fluctuating utility conditions.

For applications requiring network connectivity, the 1747-SDN DeviceNet scanner module or the 1747-AENTR EtherNet/IP adapter can be installed in the same chassis, enabling seamless integration with supervisory SCADA systems or higher-level DCS platforms. In hazardous-area installations where intrinsic safety barriers are required between field instruments and the control cabinet, the 1746-NIO4I’s channel isolation significantly simplifies barrier selection and grounding design.

When the control cabinet also houses variable frequency drives (VFDs) for motor speed regulation, the isolated analog outputs of the 1746-NIO4I provide clean 4–20 mA speed reference signals without ground-loop interference — a common failure mode in non-isolated analog modules. Similarly, when paired with safety relay modules or safety PLCs in a functional safety architecture, the module’s signal integrity supports reliable process interlocking and emergency shutdown (ESD) logic.

Terminal block wiring to field transmitters — pressure, temperature, flow, and level — is simplified by the module’s standard 1746 form factor, and replacement with a spare 1746-NIO4I requires no chassis modification, making it an ideal stocked spare for maintenance teams operating under tight production uptime requirements.

Application in Critical Infrastructure

The Allen-Bradley 1746-NIO4I has established a strong track record across critical infrastructure sectors where continuous, uninterrupted operation is non-negotiable.

Oil & Gas: In upstream wellhead automation and midstream pipeline compression stations, the module monitors analog signals from pressure transmitters and flow meters while simultaneously issuing 4–20 mA control outputs to electro-pneumatic valve positioners. Its channel isolation prevents ground faults from propagating across the control loop — a critical safety requirement in classified hazardous areas.

Mining & Minerals Processing: Conveyor belt tension monitoring, crusher load feedback, and flotation cell level control all rely on accurate, noise-immune analog I/O. The 1746-NIO4I’s EMI tolerance makes it well-suited for environments with large variable-speed drives and high-power switchgear in close proximity.

Power Generation & Utilities: Turbine inlet temperature monitoring, boiler drum level control, and generator excitation feedback loops demand analog modules with high resolution and long-term calibration stability. The 12-bit resolution of the 1746-NIO4I meets these requirements across the full operating temperature range.

Water & Wastewater Treatment: Dosing pump control, pH and dissolved oxygen monitoring, and effluent flow regulation are typical applications. The module’s resistance to humidity and condensation — rated to 95% RH non-condensing — ensures reliable operation in wet process environments.

Metallurgy & Steel: In continuous casting lines and rolling mill automation, where electromagnetic noise from induction furnaces and large AC drives is severe, the isolated architecture of the 1746-NIO4I provides the signal fidelity required for precise temperature and tension control.

Security & Quality FAQ

Q1: What does the 12-Month Warranty cover?
All 1746-NIO4I units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with Allen-Bradley’s published specifications. In the event of a confirmed defect, TOPNLMS will arrange replacement or refund. Contact [email protected] to initiate a warranty claim.

Q2: How is each unit tested before shipment?
Every 1746-NIO4I module undergoes a pre-shipment functional inspection that includes visual examination for physical damage, connector integrity verification, and where test equipment is available, basic I/O channel continuity checks. Units that do not pass inspection are quarantined and not dispatched. A quality inspection report can be provided upon request for critical procurement orders.

Q3: Is the 1746-NIO4I compatible with all SLC 500 chassis and processors?
Yes. The 1746-NIO4I is compatible with all standard SLC 500 modular chassis (1746-A4, 1746-A7, 1746-A10, 1746-A13) and all SLC 500 processor families (SLC 5/01 through SLC 5/05). It is configured via RSLogix 500 software using standard analog I/O configuration blocks. No special firmware or hardware modification is required.

Q4: Can TOPNLMS support long-term or repeat supply of the 1746-NIO4I?
Yes. TOPNLMS maintains ongoing stock of the 1746-NIO4I and related SLC 500 components to support customers with planned maintenance programs, capital spares strategies, and emergency replacement requirements. For volume pricing, scheduled delivery agreements, or consignment stock arrangements, please contact our sales team directly at [email protected] or +86 18359293191.
