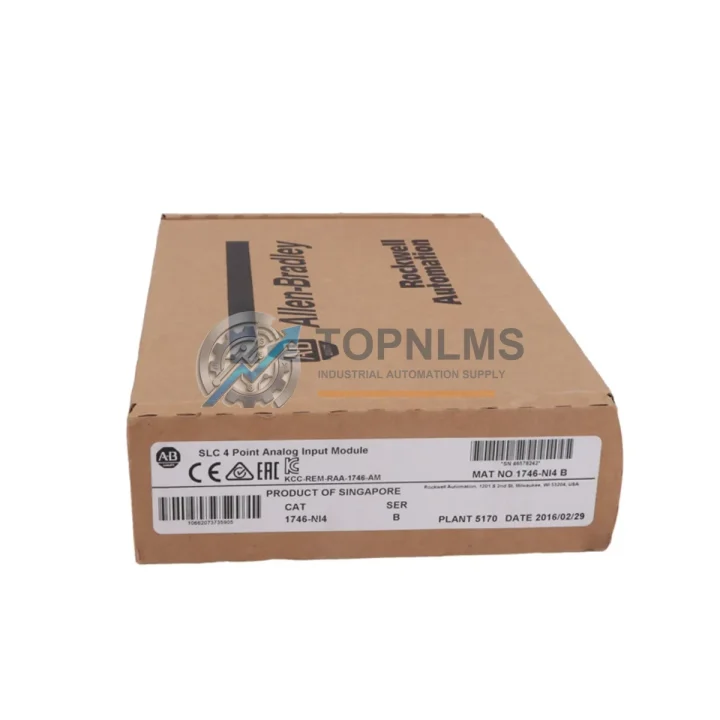

Allen-Bradley 1746-NI4 Replacement/Upgrade for SLC 500

Product Overview

Allen-Bradley 1746-NI4 Replacement/Upgrade Solution for SLC 500: Seamless Migration from Legacy Analog Input Systems

The Allen-Bradley 1746-NI4 is a 4-channel analog input module designed for the SLC 500 modular chassis platform. As Rockwell Automation has progressively moved the SLC 500 product family toward end-of-life status, many facilities running legacy control architectures face an urgent need to source verified replacement units or plan a structured migration to a supported platform. TOPNLMS supplies the 1746-NI4 as a direct drop-in replacement for failed or aging modules, and also supports customers planning a phased upgrade to the Allen-Bradley MicroLogix 1100 or CompactLogix L-series platforms.

The 1746-NI4 accepts four individually configurable analog input channels supporting voltage (±10 V, 0–10 V) and current (4–20 mA, 0–20 mA) signal types. Each channel is software-selectable via RSLogix 500 programming software, eliminating the need for hardware jumper changes during reconfiguration. The module occupies one slot in any SLC 500 modular chassis — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 rack sizes — and communicates with the SLC 5/03, SLC 5/04, and SLC 5/05 processors over the SLC backplane bus. No additional communication modules or protocol converters are required for standard SLC 500 installations.

For sites where the SLC 5/04 or SLC 5/05 processor is connected to a DH+ or Ethernet/IP network, the 1746-NI4 integrates transparently within the existing network topology. Engineers migrating from older fixed-I/O SLC 500 systems — such as the SLC 5/01 or SLC 5/02 — will find that the 1746-NI4’s channel addressing maps directly to the existing input file (I:e.0 through I:e.3), minimizing RSLogix 500 program modifications. In most cases, only the slot number reference in the program file requires updating, not the scaling or PID loop parameters.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SLC 500 analog input migration rarely involves a single module swap. In practice, field engineers must evaluate the entire control cabinet ecosystem before committing to a replacement strategy. When sourcing the 1746-NI4 as a direct replacement, it is common to simultaneously audit adjacent modules in the same chassis. The 1746-OB16 digital output module and 1746-IB16 digital input module are frequently found in the same rack and may also be approaching end-of-life. Replacing these alongside the 1746-NI4 during a planned maintenance window reduces future unplanned downtime.

For sites planning a longer-term migration to the CompactLogix platform, the 1769-IF4 analog input module is the functional successor within the Compact I/O family. The 1769-IF4 supports the same 4–20 mA and voltage input ranges and integrates with the 1769-L30ER or 1769-L33ER CompactLogix processors over the Compact I/O backplane. Customers making this transition typically also replace the 1746-P2 SLC 500 power supply with a 1769-PA2 CompactLogix power supply, and migrate their HMI from a legacy 2711-T10C8 PanelView to a 2711P-T10C21D8S PanelView Plus 7 terminal.

Communication infrastructure is another key consideration. Sites using the 1747-SDN DeviceNet scanner module for field device integration will need to evaluate whether DeviceNet remains viable in the upgraded architecture, or whether migration to EtherNet/IP using a 1734-AENT POINT I/O Ethernet adapter is more appropriate. For installations where the SLC 5/05 communicates over Ethernet/IP to a SCADA system, the existing network topology is typically preserved without modification when replacing only the 1746-NI4 analog input module.

Wiring compatibility is straightforward: the 1746-NI4 uses a standard removable screw-terminal block with the same pinout as previous-generation SLC 500 analog modules. Field wiring from transmitters, pressure sensors, flow meters, and temperature transmitters can be reconnected to the replacement module without re-labeling or re-routing cables. Signal isolators — such as those in the 1492-AIFM analog interface module family — remain fully compatible and do not require reconfiguration.

Retrofit Guidance FAQ

Q: Can I replace the 1746-NI4 without modifying my RSLogix 500 program?
A: Yes, in most cases. If the replacement module is installed in the same chassis slot as the original, the I/O address file references (I:e.0 through I:e.3) remain unchanged. No rung edits or scaling modifications are required. Simply power down the chassis, swap the module, reconnect the terminal block, and power up. The processor will recognize the module automatically on the next scan cycle.

Q: Is the wiring pinout identical to the original 1746-NI4?
A: Yes. The removable screw-terminal block uses the same channel-to-terminal mapping as all 1746-NI4 units regardless of firmware revision. Field wiring does not need to be changed.

Q: What communication protocols does the 1746-NI4 support?
A: The 1746-NI4 communicates exclusively over the SLC 500 backplane bus. It does not have an independent Ethernet/IP, DH+, or DeviceNet port. Network connectivity is handled by the SLC processor (e.g., SLC 5/05 for Ethernet/IP, SLC 5/04 for DH+).

Q: Will the 1746-NI4 fit in my existing chassis without mechanical modification?
A: Yes. The module occupies exactly one slot in any SLC 500 modular chassis (1746-A4, A7, A10, or A13). No bracket modifications, DIN rail adapters, or panel cutout changes are required.

Q: Can I use the 1746-NI4 with a CompactLogix or ControlLogix processor?
A: No. The 1746-NI4 is designed exclusively for the SLC 500 backplane and is not compatible with CompactLogix (1769 series) or ControlLogix (1756 series) chassis. For CompactLogix migration, the equivalent module is the 1769-IF4.

Q: How do I configure the input type (voltage vs. current) for each channel?
A: Channel configuration is performed entirely in software via RSLogix 500. Navigate to the I/O Configuration tree, select the 1746-NI4 module, and set each channel’s input type, filter frequency, and data format. No hardware jumpers are involved.

Q: What is the lead time and shipping origin for this unit?
A: Units are stocked and ship from Xiamen, China. Standard international express delivery (DHL/FedEx) typically reaches most destinations within 3–7 business days. Contact [email protected] for urgent same-day dispatch requests.

Warranty Assurance

Every Allen-Bradley 1746-NI4 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional pre-shipment inspection that verifies backplane connector integrity, terminal block condition, channel response, and firmware version. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Customers are not required to return the defective unit before a replacement is dispatched for critical downtime situations — contact our team to arrange priority exchange. Warranty coverage includes manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) units confirmed within 30 days of receipt.

Our after-sales team is reachable via email at [email protected] or by phone at +86 18359293191 during business hours (UTC+8). We support customers through installation verification, RSLogix 500 configuration questions, and compatibility confirmation for adjacent modules in the same chassis.

For bulk procurement, OEM integrators, and MRO stocking programs, volume pricing and extended warranty options are available upon request. TOPNLMS maintains inventory buffers specifically for SLC 500 end-of-life modules to support customers with long-term maintenance contracts on legacy systems.
