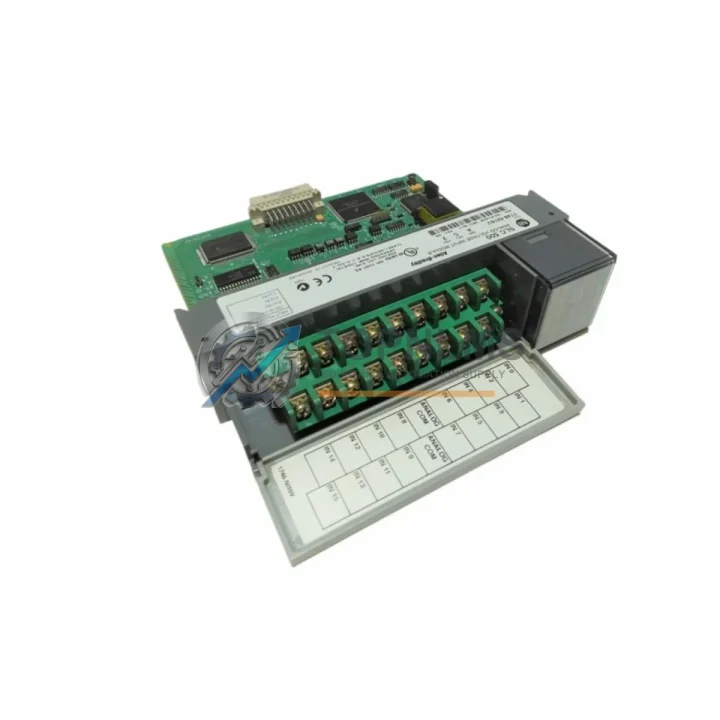

Allen-Bradley 1746-NI16V Ruggedized Analog Input Module

Product Overview

Allen-Bradley 1746-NI16V Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1746-NI16V is a 16-channel analog voltage input module engineered for the SLC 500 programmable controller platform — one of Rockwell Automation’s most widely deployed control architectures in continuous process and discrete manufacturing environments. Designed to operate reliably under the demanding conditions found in heavy industry, this module delivers precision analog signal acquisition even where temperature extremes, humidity, vibration, electromagnetic interference, and airborne particulates would compromise lesser components.

In facilities where uptime is non-negotiable — oil and gas processing plants, mineral extraction sites, power generation stations, water treatment infrastructure, and metallurgical operations — the 1746-NI16V provides the signal integrity and environmental resilience that mission-critical control systems demand. Its rugged construction and proven compatibility within the SLC 500 rack system make it a trusted choice for both original installations and field replacement scenarios where maintaining system continuity is paramount.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746-NI16V does not operate in isolation — it is one component within a tightly integrated SLC 500 control architecture. In a typical industrial control cabinet, this analog input module works in concert with the 1746-A13 13-slot SLC 500 chassis and the 1747-L553 SLC 5/05 CPU processor module, which handles ladder logic execution and Ethernet/IP communications. Discrete I/O is typically managed by companion modules such as the 1746-IB32 digital input module and the 1746-OB32 digital output module, which together handle on/off field device signals while the NI16V manages continuous analog measurements.

For analog output control — closing the loop on process variables such as valve position or variable-speed drive setpoints — the 1746-NO4V analog voltage output module is the natural counterpart to the NI16V within the same rack. Power distribution to the SLC 500 system is handled by the 1746-P4 power supply module, which provides regulated 5 VDC and 24 VDC backplane power with sufficient headroom for fully populated chassis configurations in high-demand environments.

Where communication with upstream SCADA systems or distributed control networks is required, the 1747-SDN DeviceNet Scanner module and the 1747-KE RS-232/DH-485 interface module extend the SLC 500’s connectivity to field devices and supervisory systems. In safety-critical zones, the NI16V is often deployed alongside Allen-Bradley GuardLogix safety controllers or dedicated safety relay modules that provide SIL-rated protection layers, ensuring that analog process data feeds into both standard control and safety instrumented system (SIS) logic simultaneously.

For installations requiring terminal block connectivity and field wiring management, the 1492-AIFM16-F-5 analog interface module provides a pre-wired, DIN-rail-mounted termination solution that simplifies field wiring to the 1746-NI16V and reduces installation time in dense control cabinet environments.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 1746-NI16V is deployed to monitor analog process variables including wellhead pressure, separator level, flow meter outputs, and temperature transmitter signals. Its ability to accept ±10 VDC and 0–10 VDC signals from a wide range of field transmitters makes it compatible with the diverse instrumentation found across production facilities. The module’s tolerance for the temperature swings and vibration inherent to compressor stations and pump skids ensures continuous data acquisition without signal dropout or module failure.

In power generation and electrical substation environments, where electromagnetic interference from high-voltage switching equipment poses a persistent threat to signal integrity, the 1746-NI16V’s industrial EMC design provides the noise immunity required for accurate analog measurement. Turbine inlet temperature monitoring, generator excitation feedback, and transformer load monitoring are typical applications where this module’s 12-bit resolution and stable input impedance deliver the measurement accuracy that grid operators require.

In water and wastewater treatment plants, the module handles analog inputs from pH sensors, dissolved oxygen probes, turbidity meters, and flow transmitters across multiple treatment stages. Its wide operating humidity range — up to 95% non-condensing — makes it suitable for the damp, chemically active atmospheres found in pump houses and chemical dosing areas. Continuous production lines in metallurgical and steel processing facilities rely on the NI16V for temperature profiling in furnace zones, tension measurement in rolling mills, and position feedback from hydraulic actuators, where the module’s rugged construction withstands the intense vibration and thermal radiation of heavy industrial machinery.

In mining and mineral processing operations, the 1746-NI16V supports analog signal acquisition from conveyor load cells, crusher motor current transducers, and flotation cell level sensors. Its proven reliability in dusty, high-vibration environments — where module replacement requires costly production shutdowns — makes maintaining qualified spare stock a standard practice for maintenance engineers responsible for SLC 500-based control systems.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1746-NI16V?
Every 1746-NI16V supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty program reflects our confidence in the quality of every unit we ship and provides procurement teams with the assurance needed for long-term maintenance planning.

Q2: How is each unit tested before shipment?
All 1746-NI16V modules undergo pre-shipment functional verification, including backplane communication checks, channel-level analog signal testing across the full input voltage range, and visual inspection for physical integrity. Units that do not meet our quality benchmarks are quarantined and not offered for sale, ensuring that every module dispatched is field-ready.

Q3: Is the 1746-NI16V compatible with all SLC 500 chassis and CPU versions?
Yes. The 1746-NI16V is compatible with all standard SLC 500 modular chassis (1746-A4, A7, A10, A13) and operates with all SLC 500 CPU variants including the SLC 5/01, 5/02, 5/03, 5/04, and 5/05 processors. Configuration is performed via RSLogix 500 software. For specific firmware revision compatibility or chassis slot restrictions, our technical team can provide guidance prior to purchase.

Q4: Can TOPNLMS support long-term or repeat supply requirements for this module?
Yes. TOPNLMS maintains dedicated inventory of Allen-Bradley SLC 500 series modules to support both immediate replacement needs and planned maintenance programs. We work with industrial facilities, MRO procurement teams, and system integrators requiring consistent, reliable access to legacy and current-generation Rockwell Automation components. Contact our team to discuss volume pricing, lead times, and scheduled supply agreements.
