Allen-Bradley 1746-NI16I Original Industrial Spare SLC 500 Compatible

Product Overview

Allen-Bradley 1746-NI16I Original Industrial Spare SLC 500 Compatible: Ensuring System Stability in Demanding Automation Environments

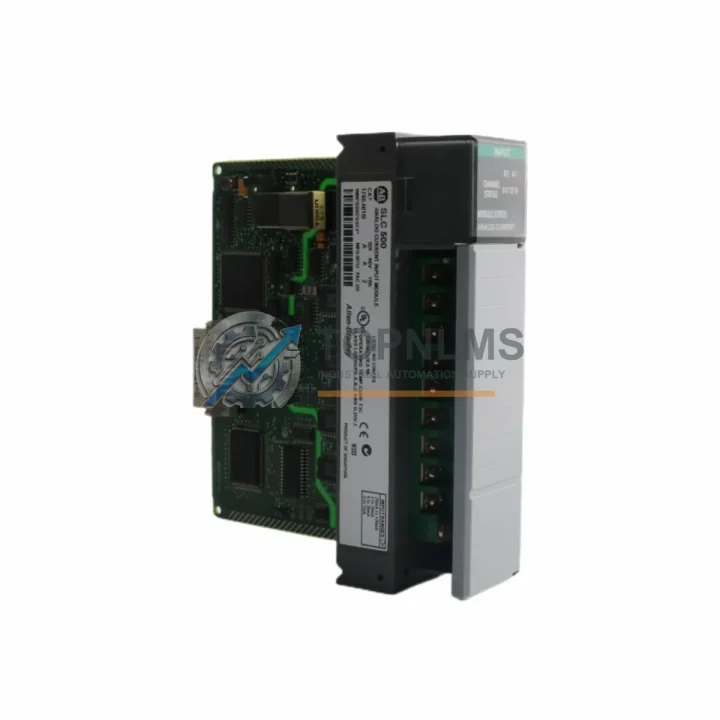

The Allen-Bradley 1746-NI16I is a 16-channel analog input module engineered for the SLC 500 modular I/O platform — one of the most widely deployed programmable controller families in discrete and process manufacturing worldwide. Whether you are managing a high-throughput production line, maintaining aging control infrastructure, or building a strategic spare parts inventory, the 1746-NI16I represents a critical node in your plant’s signal acquisition architecture. Its ability to accept current (4–20 mA) and voltage (±10 V, 0–5 V, 1–5 V) inputs across 16 independent channels makes it indispensable for temperature, pressure, flow, and level monitoring applications where signal fidelity directly impacts process quality and uptime.

Sourced as an original Allen-Bradley component, this module is fully compatible with SLC 5/01, 5/02, 5/03, 5/04, and 5/05 processors. It slots directly into any SLC 500 modular chassis — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 — without firmware modification or re-engineering. For maintenance engineers tasked with keeping legacy systems operational, this plug-and-play compatibility is the single most important factor in minimizing mean time to repair (MTTR) during unplanned shutdowns.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled maintenance visit to a control cabinet housing an SLC 500 system should never be limited to a single module swap. The 1746-NI16I operates within an interconnected ecosystem of hardware, and the failure of one component is frequently a leading indicator of stress across adjacent modules. A disciplined preventive maintenance (PM) program treats the entire I/O rack as a system, not a collection of isolated parts.

When inspecting or replacing a 1746-NI16I, maintenance technicians should simultaneously audit the 1746-OB16 or 1746-OW16 digital output modules in the same chassis — output modules share the backplane power budget and thermal environment, and degraded output switching can introduce noise that corrupts analog readings. The 1746-P4 or 1746-P7 power supply module deserves particular attention: an aging power supply with marginal voltage regulation is one of the most common root causes of intermittent analog input errors and should be tested under full load before the 1746-NI16I is declared faulty.

Signal wiring integrity is equally critical. The 1492-AIFM16-F-3 analog interface module (or equivalent terminal block assembly) that terminates field wiring to the 1746-NI16I should be inspected for loose terminations, corrosion, and insulation breakdown — particularly in high-humidity or chemically aggressive environments. Replacing worn terminal blocks during a planned shutdown costs a fraction of the downtime caused by a field wiring fault that develops mid-production.

For systems where the SLC 500 communicates with supervisory SCADA or DCS layers, the 1747-SDN DeviceNet Scanner module or 1747-KE DH-485/RS-232 Interface module should be checked for firmware currency and connector integrity. Communication module failures can mask analog data loss at the SCADA level, making faults appear as network issues rather than I/O hardware problems. Similarly, the 1747-L553 SLC 5/05 processor (or whichever processor variant is installed) should have its battery status verified — a low-memory backup battery can cause program corruption that mimics analog module failure.

Where signal isolation is required between field instruments and the SLC 500 backplane, signal isolators and loop-powered signal conditioners (such as those in the Phoenix Contact MINI Analog series or equivalent) should be included in the PM checklist. These devices protect the 1746-NI16I from ground loops and transient overvoltages that accelerate module aging. Pairing the analog input module with properly rated fuse terminal blocks on each channel further reduces the risk of catastrophic input damage from field wiring faults.

Finally, for facilities managing multiple SLC 500 racks, maintaining a minimum stock of one 1746-NI16I per production line — alongside a spare 1746-A7 chassis and a set of the most common I/O modules — is the most cost-effective insurance against extended unplanned downtime. The carrying cost of a spare module is negligible compared to the production loss from a 24–72 hour emergency procurement cycle.

Strategic Replacement Solutions

The SLC 500 platform, while mature, remains active in thousands of manufacturing facilities globally. Rockwell Automation has transitioned its primary development focus to the ControlLogix and CompactLogix families, which means new 1746-NI16I units are increasingly sourced through authorized distributors and specialist industrial spare parts suppliers rather than direct OEM channels. This supply dynamic makes early procurement planning essential.

The 1746-NI16I can directly replace any previously installed unit of the same part number without processor reprogramming, provided the channel configuration in the SLC 500 program (I/O configuration table) matches the replacement module’s jumper or software settings. For facilities migrating from older 1746-NI4 or 1746-NI8 modules, the 1746-NI16I offers a channel-density upgrade that can consolidate two legacy modules into one slot, freeing chassis space and reducing backplane current draw per analog point.

For plants considering a longer-term migration path toward ControlLogix or CompactLogix, the 1746-NI16I serves as a bridge component — maintaining production continuity while capital planning for a full platform upgrade proceeds. This approach avoids the risk of a forced emergency migration triggered by an unplanned hardware failure, allowing engineering teams to execute the transition on a controlled schedule with proper testing and operator training.

All units supplied by TOPNLMS are tested prior to shipment using functional verification procedures that confirm channel-by-channel analog accuracy, backplane communication integrity, and LED status indicator operation. Each module is shipped in anti-static packaging with inspection documentation. The 12-month warranty covers return and replacement for any module that fails under normal operating conditions within the warranty period.
