Allen-Bradley 1746-ITB16 Original Industrial Spare SLC 500 Compatible

Product Overview

Allen-Bradley 1746-ITB16 Original Industrial Spare SLC 500 Compatible: Ensuring System Stability in Demanding Automation Environments

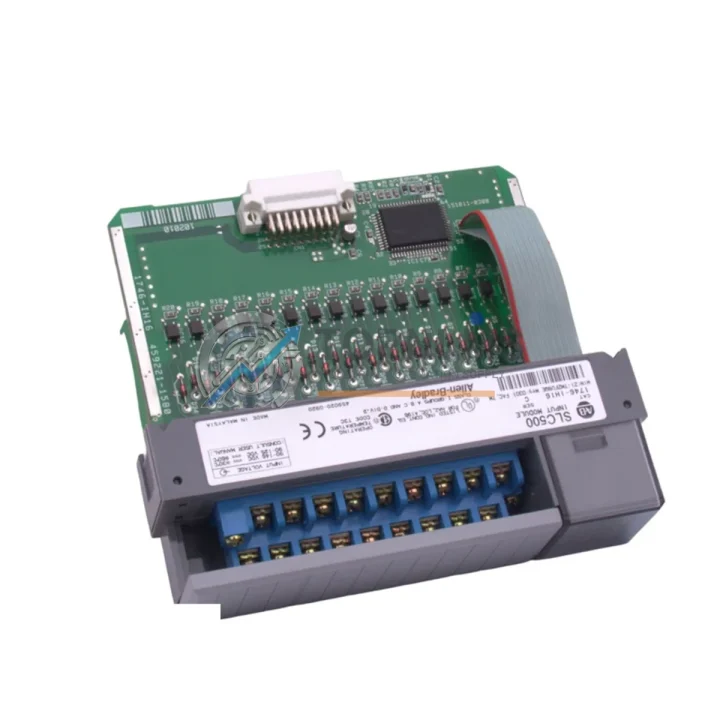

The Allen-Bradley 1746-ITB16 is a 16-channel fast-response DC sinking input module engineered for the SLC 500 programmable controller platform. In industrial facilities where production continuity is non-negotiable, having a verified original spare of the 1746-ITB16 on hand is a cornerstone of any responsible maintenance strategy. Whether you are managing a high-speed packaging line, a discrete manufacturing cell, or a legacy process control system built around the SLC 500 rack architecture, this module delivers the signal acquisition speed and electrical reliability that field engineers depend on during both planned shutdowns and emergency interventions.

The 1746-ITB16 is specifically designed for applications requiring fast input response times — typically under 0.1 ms — making it the preferred choice for encoder feedback, proximity sensor arrays, and high-frequency digital signal capture. Its 16-channel sinking configuration integrates directly into the 1746 I/O chassis without additional adapters, preserving the original wiring topology and minimizing replacement time during unplanned outages.

Critical Technical Specs

Preventive Maintenance Strategy

A disciplined preventive maintenance program for any SLC 500-based control system extends well beyond replacing a single I/O module. When scheduling a planned inspection or responding to an unplanned fault involving the 1746-ITB16, experienced maintenance engineers treat the event as an opportunity to audit the entire control cabinet for latent wear and impending failures.

Begin with the power supply rail. The 1746-P4 or 1746-P7 power supply modules are common companions to the 1746-ITB16 in the same chassis. Voltage ripple or marginal output from an aging power supply can cause intermittent input faults that are frequently misdiagnosed as module failures. Verify output voltages under load before condemning any I/O card.

Next, inspect the I/O wiring and terminal blocks. Loose or corroded field wiring at the 1746-HSTP1 or standard screw-terminal wiring arms is a leading cause of spurious input signals on fast-response modules. Torque all terminals to specification and look for signs of insulation degradation, particularly in high-vibration or high-temperature zones of the cabinet.

The processor module itself warrants attention during any I/O-related fault investigation. If the facility runs a SLC 5/04 or SLC 5/05 processor, confirm that the firmware revision is current and that the battery — typically a 1747-BA lithium cell — is within its service life. A low-battery condition can corrupt program memory and produce erratic I/O behavior that mimics hardware faults.

Communication integrity is equally important. If the SLC 500 system communicates over a 1747-SDN DeviceNet scanner or a 1747-KE DH-485 interface module, inspect the network cabling, termination resistors, and node addresses. Communication faults at the network layer can mask genuine I/O module issues or generate false diagnostics.

For facilities managing multiple SLC 500 racks, the 1746-BAS BASIC module or any installed 1746-NI4 analog input modules in adjacent slots should be checked for proper seating and connector integrity. Vibration over time can cause partial ejection of modules from the backplane, resulting in intermittent faults that are difficult to reproduce during static bench testing.

Finally, review the condition of the chassis backplane itself. Repeated module insertions and removals — common in high-turnover maintenance environments — can wear the backplane connector pins. If the 1746 chassis shows signs of pin damage or discoloration from heat, plan for chassis replacement during the next scheduled outage rather than waiting for a catastrophic failure that forces an emergency shutdown.

Stocking a curated set of critical spares — including the 1746-ITB16, a spare processor, at least one power supply, and representative analog and digital I/O modules — is the most cost-effective insurance against extended downtime in facilities where the SLC 500 platform remains the backbone of production control.

Strategic Replacement Solutions

The Allen-Bradley SLC 500 platform, while no longer in active development, remains deeply embedded in manufacturing infrastructure worldwide. Many facilities operate SLC 500 systems that were commissioned in the 1990s and early 2000s, and the economics of full migration to a ControlLogix or CompactLogix architecture are prohibitive in the near term. For these sites, sourcing original spare modules such as the 1746-ITB16 is the most pragmatic path to maintaining system availability without incurring the engineering cost and production risk of a platform migration.

The 1746-ITB16 is a direct drop-in replacement for any failed or degraded unit of the same part number. No software changes, address remapping, or I/O configuration edits are required in RSLogix 500 — the replacement module assumes the same slot address and I/O map as the original, allowing the maintenance technician to restore production within minutes of physical installation.

For facilities that have already begun a phased migration toward the CompactLogix 5370 or 1769 Compact I/O platform, the 1746-ITB16 serves as a bridge component — keeping legacy lines operational while newer systems are commissioned in parallel. This hybrid approach reduces migration risk and allows engineering teams to validate new control logic against live production data before full cutover.

Every 1746-ITB16 unit shipped from TOPNLMS undergoes a full functional test prior to dispatch. Units are verified for correct channel response, optical isolation integrity, and backplane communication before packaging. This pre-shipment protocol ensures that the module arriving on your dock is ready for immediate installation, eliminating the risk of receiving a defective spare during a time-critical outage.
