Allen-Bradley 1746-IO12DC Replacement for SLC 500

Product Overview

Allen-Bradley 1746-IO12DC Replacement for SLC 500: Smooth Migration & Legacy System Upgrade

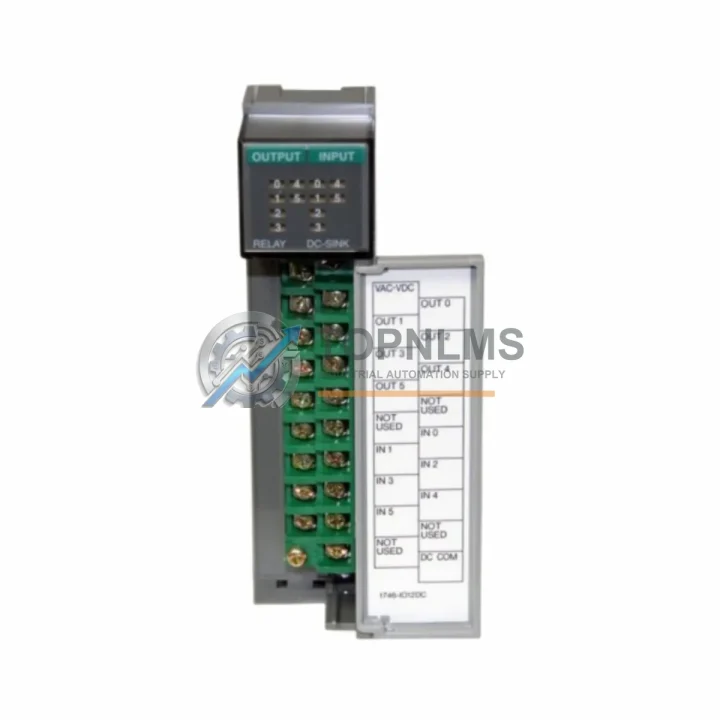

The Allen-Bradley 1746-IO12DC is a 12-point combination DC input/output module designed for the SLC 500 programmable controller platform. As Rockwell Automation progressively phases out legacy SLC 500 hardware, many facilities running 1746-series racks face an urgent need to source verified replacement units or plan a structured migration to a modern control architecture. TOPNLMS supplies tested, shelf-ready 1746-IO12DC modules to support both immediate drop-in replacement and phased system modernization — minimizing unplanned downtime and protecting your existing capital investment in SLC 500 infrastructure.

The 1746-IO12DC provides 6 DC inputs (24 VDC sink/source) and 6 DC outputs (24 VDC source) in a single slot, making it one of the most space-efficient combination I/O modules in the SLC 500 family. Its compact footprint fits standard 1746-series modular chassis — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 — without any chassis modification or backplane adapter. Wiring terminations follow the standard 1746 removable terminal block convention, so field wiring from the original module can be transferred directly to the replacement unit with no re-labeling or re-routing required. This plug-and-play wiring compatibility is critical for maintenance teams working under tight shutdown windows.

From a programming perspective, the 1746-IO12DC is fully recognized by RSLogix 500 and Studio 5000 Logix Designer (when used in an SLC 500 chassis). The I/O image table mapping — input file I:x and output file O:x — remains identical to the original module, meaning no ladder logic modifications are required for a direct replacement. For facilities migrating from an older SLC 5/03 or SLC 5/04 processor to a SLC 5/05 with Ethernet/IP capability, the 1746-IO12DC continues to operate transparently within the same chassis, preserving all existing program logic and HMI tag references.

Communication protocol compatibility is a key consideration in any SLC 500 retrofit. The 1746-IO12DC communicates over the SLC 500 backplane using the native DH-485 and DF1 protocol stack managed by the SLC processor. No additional communication module is required for the I/O module itself. However, facilities integrating the SLC 500 rack into a broader EtherNet/IP or DeviceNet network will typically pair the chassis with a 1761-NET-ENI Ethernet interface or a 1747-SDN DeviceNet scanner module — both of which remain fully compatible with a chassis containing the 1746-IO12DC.

Power supply compatibility is another area where the 1746-IO12DC simplifies migration. The module draws its logic power from the SLC 500 backplane, supplied by the installed 1746-P1, 1746-P2, or 1746-P4 power supply module. Field-side I/O power (24 VDC) is supplied externally through the terminal block, consistent with all 1746-series DC I/O modules. No power supply upgrade is required when replacing a failed 1746-IO12DC with a new unit, provided the existing power supply is within its rated capacity for the chassis slot count.

For facilities planning a longer-term migration from SLC 500 to CompactLogix or ControlLogix platforms, the 1746-IO12DC serves as a reliable bridge module during the transition period. A common migration strategy involves replacing failed SLC 500 I/O modules with verified units — such as the 1746-IO12DC — to stabilize production while the migration project is engineered and scheduled. This approach avoids emergency shutdowns driven by I/O failures and allows the migration to proceed on a planned timeline. During the migration, field wiring documentation developed for the 1746-IO12DC terminal assignments can be directly referenced when mapping signals to 1769-IQ16 or 1769-OB16 CompactLogix I/O modules, as the 24 VDC signal levels and sink/source conventions are consistent across both platforms.

Physical installation in the control cabinet requires a single SLC 500 chassis slot. The module’s standard 1746 form factor ensures compatibility with all SLC 500 modular chassis sizes. DIN rail or panel-mounted chassis installations are both supported. The module’s operating temperature range (0–60 °C) and vibration ratings are consistent with standard industrial cabinet environments, making it suitable for machine tool, material handling, water treatment, and process control applications where SLC 500 systems remain in service.

TOPNLMS maintains stock of the 1746-IO12DC alongside complementary SLC 500 components including the 1746-IB16 DC input module, 1746-OB16 DC output module, 1746-NI4 analog input module, and 1746-NO4I analog output module — enabling customers to source multiple I/O modules from a single supplier for a complete rack rebuild or partial slot replacement. For processor-level replacements, the SLC 5/04 1747-L541 and SLC 5/05 1747-L551 processors are also available, supporting full CPU swap scenarios where the I/O chassis and wiring are retained.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1746-IO12DC replacement or SLC 500 migration typically involves more than a single module swap. Depending on the scope of the retrofit, the following components are commonly required alongside the 1746-IO12DC:

For facilities rebuilding a full I/O rack, the 1746-IB16 (16-point 24 VDC DC input module) and 1746-OB16 (16-point 24 VDC DC output module) provide expanded discrete I/O capacity in adjacent chassis slots, allowing the combination module to be supplemented or replaced with dedicated input and output modules where higher point counts are needed. Where analog signal acquisition is required — for temperature, pressure, or flow transmitters — the 1746-NI4 analog input module (4-channel, 4–20 mA / 0–10 V) integrates directly into the same chassis without additional configuration.

Communication expansion is frequently required when integrating an SLC 500 rack into a modern SCADA or DCS network. The 1761-NET-ENI serial-to-Ethernet interface module enables EtherNet/IP connectivity for SLC processors that lack a native Ethernet port, while the 1747-SDN DeviceNet scanner module supports legacy DeviceNet field device networks. For facilities using PanelView HMI terminals connected via DH-485, the existing communication wiring and HMI program remain fully compatible with the replacement 1746-IO12DC chassis.

Programming cable access is essential during commissioning and troubleshooting. The 1747-UIC USB-to-DH-485 interface cable provides a direct connection between a laptop running RSLogix 500 and the SLC processor’s DH-485 port, enabling online monitoring of I/O status immediately after module installation — a critical step for verifying correct wiring and signal mapping before returning the system to production.

For control cabinet power distribution, the 1746-P2 power supply module (24 VDC input, 5 VDC / 2 A backplane output) is the most common power supply paired with mid-size SLC 500 chassis. If the existing power supply is approaching end of life or showing voltage regulation issues, replacing it concurrently with the I/O module eliminates a secondary failure risk during the same maintenance window.

Retrofit Guidance FAQ

Q: Can I replace the 1746-IO12DC without modifying my ladder logic program?
A: Yes. The 1746-IO12DC is a direct drop-in replacement. The I/O image table addresses (I:x.0 / O:x.0) remain identical, so no changes to the RSLogix 500 program are required. Simply install the replacement module, transfer the terminal block wiring, and perform an online verify in RSLogix 500 to confirm the module is recognized by the processor.

Q: Is the wiring terminal block interchangeable between old and new units?
A: Yes. The 1746-IO12DC uses the standard 1746-series removable screw terminal block. The terminal block from the failed module can be transferred directly to the replacement unit, preserving all field wiring connections and eliminating the risk of wiring errors during the swap.

Q: What communication protocols does the 1746-IO12DC support?
A: The module communicates over the SLC 500 backplane using the native DH-485 and DF1 protocol managed by the SLC processor. No additional configuration is required for the I/O module itself. Network-level protocols (EtherNet/IP, DeviceNet, DH+) are managed by the processor or dedicated communication modules in the chassis.

Q: Will the 1746-IO12DC fit in my existing chassis without modification?
A: Yes. The module occupies a single standard 1746-series chassis slot. It is compatible with all SLC 500 modular chassis (1746-A4, A7, A10, A13). No mechanical modification, adapter plate, or backplane bridge is required.

Q: How do I verify the replacement module is functioning correctly after installation?
A: Connect a laptop running RSLogix 500 via a 1747-UIC USB-to-DH-485 cable. Go online with the processor and navigate to the I/O configuration. The 1746-IO12DC should appear as a recognized module. Force individual input and output bits to verify field wiring continuity before returning the system to automatic mode.

Q: Can this module be used during a migration from SLC 500 to CompactLogix?
A: Yes. The 1746-IO12DC is an effective bridge module during phased migrations. It stabilizes the existing SLC 500 system while the CompactLogix migration is planned and executed. Field wiring documentation for the 1746-IO12DC terminal assignments can be directly referenced when mapping signals to CompactLogix 1769-series I/O modules.

Warranty Assurance

Every 1746-IO12DC supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including backplane communication check, input signal response test, and output switching test under rated load conditions. Modules that do not pass all verification checks are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial assessment and 72 hours for replacement dispatch. Warranty coverage includes manufacturing defects, functional failures under normal operating conditions, and DOA (dead on arrival) units confirmed within 7 days of receipt.

Purchasing from TOPNLMS includes: pre-shipment functional test report available on request, secure anti-static packaging with humidity indicator, tracking number provided within 24 hours of order confirmation, and export documentation (commercial invoice, packing list, certificate of origin) for international shipments. Stock is maintained in Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available depending on order volume and urgency.

For bulk orders (5+ units), TOPNLMS offers priority allocation, consolidated shipment, and extended payment terms for qualified B2B customers. Contact our team to discuss your project requirements and lead time expectations.
