Allen-Bradley 1746-INT4 Ruggedized Thermocouple Module for Harsh Environments

Product Overview

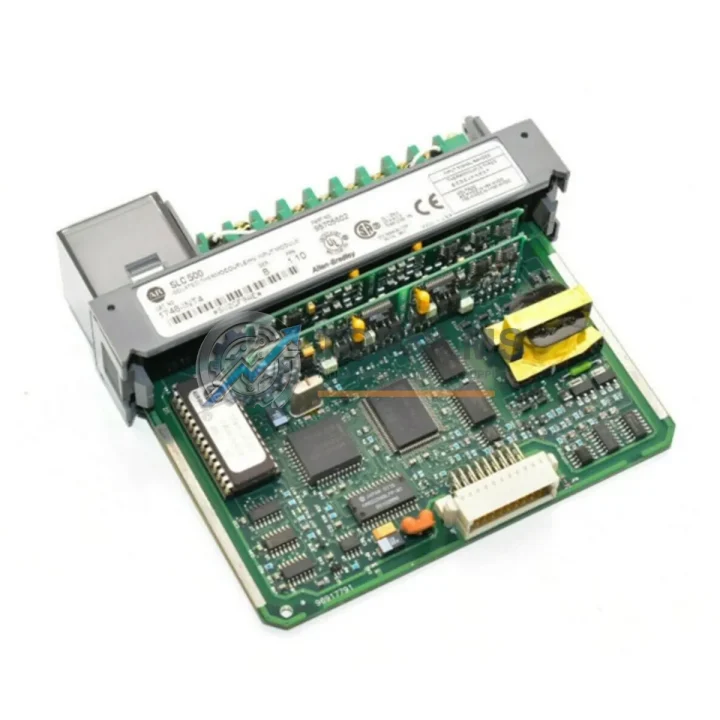

Allen-Bradley 1746-INT4 Ruggedized Thermocouple Input Module for Harsh Environments

The Allen-Bradley 1746-INT4 is a 4-channel thermocouple input module engineered for the SLC 500 programmable controller platform — one of Rockwell Automation’s most widely deployed control architectures in heavy industry. Designed to operate reliably in the most demanding industrial environments, the 1746-INT4 delivers precise temperature measurement and signal conditioning in applications where failure is not an option. Whether deployed in a steel mill, offshore platform, chemical processing plant, or municipal water treatment facility, this module maintains measurement integrity under conditions of extreme heat, persistent vibration, electromagnetic interference, and corrosive atmospheres.

At TOPNLMS, we stock the 1746-INT4 as a verified, tested spare part for industrial facilities that depend on SLC 500 systems for continuous production. Every unit undergoes pre-shipment functional verification to confirm channel accuracy, backplane communication integrity, and terminal block condition — giving procurement engineers and maintenance teams the confidence they need when sourcing critical replacement components.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746-INT4 does not operate in isolation — it is one component within a tightly integrated SLC 500 control architecture. In a typical industrial control cabinet, it works alongside the 1746-OW16 relay output module to translate temperature readings into discrete switching actions for alarms, interlocks, or process shutdowns. The 1746-IB16 DC input module handles field-level digital signals from proximity sensors and limit switches, while the 1746-OB16E electronically fused output module drives actuators and solenoids with built-in short-circuit protection — a critical feature in wet or chemically aggressive environments.

For power conditioning, the 1746-P4 power supply provides stable 5 VDC and 24 VDC rails to the SLC 500 chassis, ensuring that analog measurement modules like the 1746-INT4 receive clean, regulated power free from the voltage transients common in heavy industrial facilities. In applications where process variables beyond temperature must be monitored, the 1746-NI4 analog input module complements the 1746-INT4 by accepting 4–20 mA and 0–10 VDC signals from pressure transmitters, flow meters, and level sensors.

Communication integrity is maintained through the 1747-SDN DeviceNet Scanner module, which connects the SLC 500 processor to distributed field devices including variable frequency drives, smart motor controllers, and remote I/O adapters. Where Ethernet connectivity is required, the 1761-NET-ENI Ethernet Interface bridges the SLC 5/05 processor to plant-level SCADA and MES systems. Safety-critical applications may also incorporate the 1746-HSTP1 stepper controller module or dedicated safety relay modules to enforce machine guarding and emergency stop logic in compliance with IEC 62061 and ISO 13849 standards.

Terminal wiring is managed through 1492-CABLE thermocouple wiring accessories and pre-wired interface cables that reduce installation time and eliminate field wiring errors — a common source of measurement drift in high-noise environments. Together, these components form a complete, validated control solution that the 1746-INT4 anchors at the temperature sensing layer.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1746-INT4 is deployed in wellhead control panels and separator skids where thermocouple-based temperature monitoring of process fluids, heat exchangers, and compressor discharge lines is mandatory for safe operation. Its channel-to-backplane isolation prevents ground loops from corrupting measurement data in environments where multiple grounded thermocouples share a common process vessel.

In coal-fired and gas-fired power generation, the module monitors boiler tube skin temperatures, turbine bearing temperatures, and flue gas temperatures — data streams that feed directly into distributed control system (DCS) supervisory loops. Where legacy SLC 500 systems remain in service alongside newer ControlLogix or CompactLogix platforms, the 1746-INT4 continues to provide reliable thermocouple input capability without requiring a full system migration.

In mining and mineral processing, the module withstands the persistent mechanical vibration of crushers, conveyors, and ball mills. Its robust backplane connector and conformal-coated PCB (on select production runs) resist the conductive dust and humidity that characterize underground and open-pit mining environments. Maintenance teams value the module’s hot-swap compatibility within powered SLC 500 chassis, enabling channel replacement during scheduled maintenance windows without full system shutdown.

In water and wastewater treatment, the 1746-INT4 monitors temperature across aeration basins, digester tanks, and UV disinfection systems. Its software-selectable thermocouple type allows a single module to serve multiple measurement points with different sensor types — reducing spare parts inventory complexity for facility maintenance departments.

In metallurgical and steel production, the module operates in the vicinity of induction furnaces and arc furnaces where electromagnetic interference levels far exceed those found in standard manufacturing environments. Its differential input architecture and high common-mode rejection ratio ensure that temperature readings remain accurate even when high-current bus bars and variable speed drives are operating in close proximity to the control cabinet.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1746-INT4?
All 1746-INT4 modules supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with Rockwell Automation’s published specifications. Warranty claims are processed with priority turnaround to minimize production downtime for our industrial customers.

Q2: How is each unit tested before shipment?
Every 1746-INT4 undergoes a pre-shipment inspection protocol that includes visual inspection of the PCB, terminal block, and backplane connector; functional verification of all four thermocouple input channels; and communication handshake testing with an SLC 500 processor. Units that do not pass all test criteria are quarantined and not offered for sale. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 1746-INT4 compatible with all SLC 500 chassis and processors?
Yes. The 1746-INT4 is compatible with all SLC 500 modular chassis (1746-A4 through 1746-A13) and all SLC 500 modular processors including the SLC 5/03, SLC 5/04, and SLC 5/05. Configuration is performed via RSLogix 500 software. Channel-level thermocouple type selection, filter frequency, and data format are all software-configurable without hardware modification.

Q4: Can TOPNLMS support long-term supply continuity for the 1746-INT4?
Yes. TOPNLMS maintains standing inventory of the 1746-INT4 and related SLC 500 I/O modules to support facilities with long equipment lifecycles. We understand that industrial control systems often remain in service for 15–25 years, and we are committed to providing verified spare parts, technical documentation, and replacement support throughout the operational life of your SLC 500 installation. For volume procurement, blanket order arrangements and reserved stock agreements are available — contact our team to discuss your facility’s requirements.
