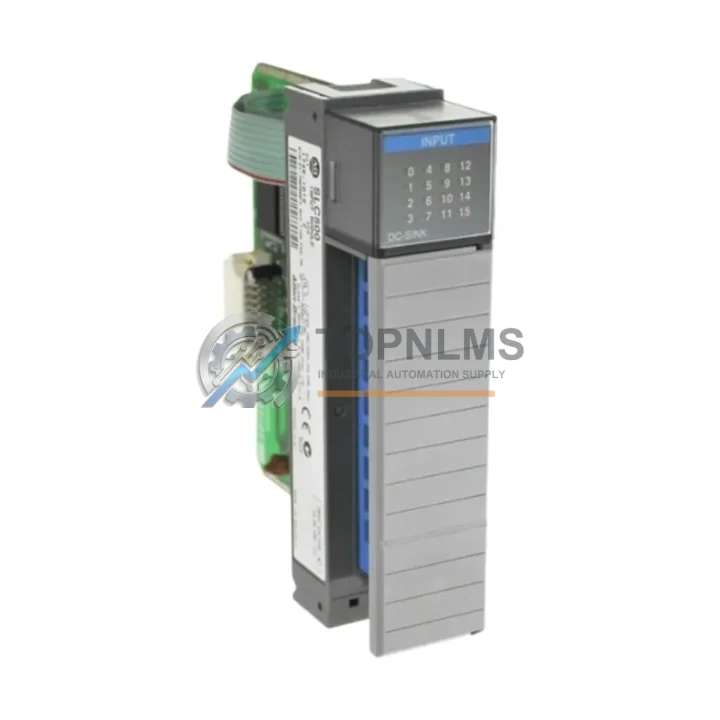

Allen-Bradley 1746-IN16 Ruggedized Discrete Input Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1746-IN16 is a 16-point, 24V AC/DC discrete input module engineered for the SLC 500 programmable logic controller platform — one of the most widely deployed control architectures in global industrial automation. Designed to operate reliably under the demanding conditions found in continuous production lines, heavy manufacturing, and process-critical facilities, the 1746-IN16 delivers consistent signal acquisition even in environments characterized by high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and electromagnetic interference (EMI).

At TOPNLMS, every 1746-IN16 unit is sourced through verified supply channels, individually inspected, and function-tested prior to dispatch. We maintain ready stock to support urgent maintenance requirements, planned shutdowns, and long-term spare parts programs for facilities that depend on SLC 500 infrastructure.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746-IN16 does not operate in isolation — it is a critical node within a broader SLC 500 control system architecture. In a typical industrial control cabinet, this input module works in concert with the 1746-OW16 output module to form a complete I/O layer, receiving field signals from sensors, limit switches, and proximity detectors while the output module drives actuators, solenoids, and motor starters. The 1746-P4 power supply provides the regulated backplane power that sustains both modules under fluctuating load conditions common in heavy-duty environments.

For applications requiring analog signal processing alongside discrete I/O, the 1746-NI4 analog input module and 1746-NO4I analog output module integrate seamlessly within the same SLC 500 chassis, enabling unified control of both digital and analog field devices. In facilities where communication with SCADA systems, HMIs, or distributed control networks is required, the 1747-SDN DeviceNet Scanner module and 1747-KE DH-485/RS-232C Interface module extend the SLC 500’s connectivity without compromising the rugged, deterministic control that the platform is known for.

Safety-critical installations often pair the 1746-IN16 with dedicated safety relay modules and emergency stop circuits to ensure that discrete input signals from safety-rated field devices are processed with the appropriate response times and fail-safe logic. In high-vibration environments such as mining conveyors or steel rolling mills, the entire SLC 500 chassis — including the 1746-IN16 — benefits from vibration-dampening DIN rail mounting hardware and properly torqued terminal connections on the 1746-RT25 wiring arm or equivalent field wiring accessories.

For facilities managing multiple SLC 500 racks across a plant floor, the 1747-SN Remote I/O Scanner enables the 1746-IN16 to function as part of a distributed I/O network, extending control reach without requiring a separate processor at each location. This architecture is particularly valuable in large-footprint operations such as water treatment plants, power substations, and petrochemical processing units where field devices are spread across significant distances.

Application in Critical Infrastructure

The Allen-Bradley 1746-IN16 has established a long service record across some of the most demanding industrial sectors in the world. In oil and gas upstream and midstream operations, this module monitors discrete signals from wellhead sensors, pipeline pressure switches, and emergency shutdown (ESD) systems, where signal integrity under extreme temperature swings and hydrocarbon-laden atmospheres is non-negotiable. Its optical isolation barrier ensures that ground faults and voltage transients in the field wiring do not propagate to the SLC 500 backplane, protecting the entire control system from cascading failures.

In mining and mineral processing environments, the 1746-IN16 is routinely deployed in conveyor control panels, crusher monitoring systems, and ventilation control cabinets. The module’s tolerance for high-vibration and high-dust conditions — when installed in appropriately rated enclosures — makes it a preferred choice for maintenance engineers who need a reliable, proven component with a well-understood replacement cycle.

Power generation facilities, including coal-fired, gas turbine, and hydroelectric plants, rely on SLC 500 systems for auxiliary control functions such as cooling water pump monitoring, valve position feedback, and alarm annunciation. The 1746-IN16’s 16-point density allows a single module to consolidate a large number of discrete field signals, reducing cabinet footprint and simplifying wiring in space-constrained switchgear rooms.

In municipal water and wastewater treatment plants, where continuous 24/7 operation is mandatory and unplanned downtime carries regulatory consequences, the 1746-IN16 serves as a dependable input interface for level switches, flow confirmation contacts, and pump run-status signals. Facilities that maintain a stocked spare of this module can restore a failed I/O slot within minutes, avoiding the extended lead times associated with sourcing legacy components through standard distribution channels.

Metallurgical and steel production environments present some of the harshest conditions for electronic control equipment — intense radiated heat from furnaces, heavy electromagnetic interference from large motor drives and arc furnaces, and constant mechanical vibration from rolling mills and presses. The 1746-IN16’s robust optical isolation and its compatibility with shielded field wiring practices make it well-suited for these applications, particularly when installed in thermally managed control enclosures with appropriate cooling provisions.
