Allen-Bradley 1746-IM8 Ruggedized Discrete Input Module

Product Overview

Allen-Bradley 1746-IM8 Ruggedized Discrete Input Module: Industrial Resilience for Harsh Environments

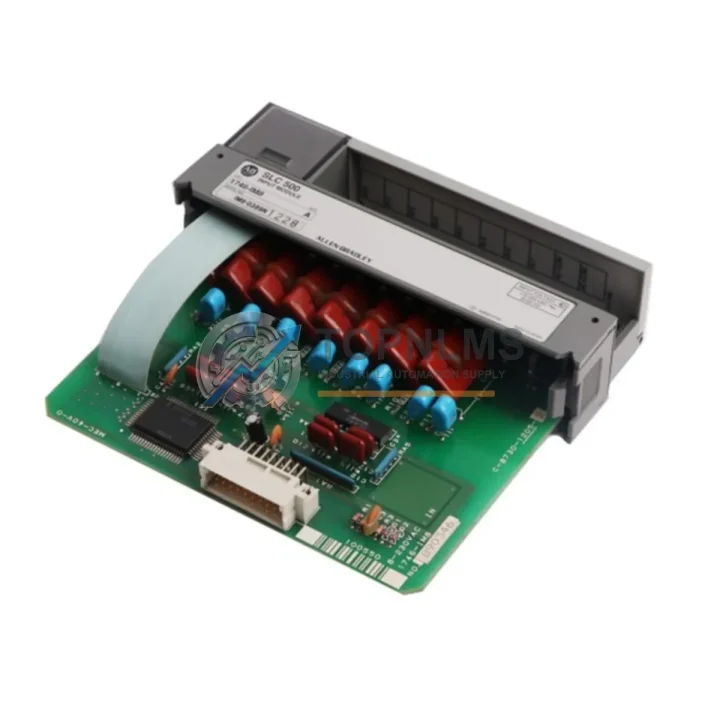

The Allen-Bradley 1746-IM8 is an 8-point AC discrete input module engineered for the SLC 500 programmable controller platform — one of the most widely deployed and field-proven control architectures in industrial automation. Designed to operate reliably in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the 1746-IM8 delivers the signal integrity and operational continuity that mission-critical production lines demand.

In heavy industrial settings — from continuous process plants to discrete manufacturing cells — the ability of an input module to accurately capture field-level signals without dropout or false triggering is non-negotiable. The 1746-IM8 achieves this through robust optical isolation on each input channel, ensuring that transient voltage spikes, ground loops, and high-frequency EMI common in motor-drive environments do not corrupt the data reaching the SLC 500 processor. Whether installed adjacent to variable-frequency drives, large contactors, or high-current bus bars, the module maintains signal fidelity that operators and safety engineers can depend on.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746-IM8 is rarely deployed in isolation — it functions as an integral node within a broader SLC 500 control system architecture. In a typical control cabinet, it operates alongside the 1746-OW16 output module, which handles relay-switched AC loads such as solenoid valves and motor starters, while the 1746-IM8 captures the corresponding feedback signals from limit switches, proximity sensors, and pushbutton stations. The 1746-P4 power supply provides the regulated backplane voltage that sustains both modules under full I/O load, even during line voltage fluctuations common in heavy industrial facilities.

For applications requiring analog process variable monitoring alongside discrete control — such as pressure, temperature, or flow measurement — the 1746-NI8 analog input module complements the 1746-IM8 within the same chassis, enabling a unified SLC 500 rack to handle both signal types. Communication to supervisory SCADA systems or distributed HMI panels is typically managed through the 1747-SDN DeviceNet Scanner or the 1747-KE DH-485 to RS-232 interface module, both of which share the same SLC 500 backplane and benefit from the same rugged chassis environment.

In safety-critical zones, the 1746-IM8 is often paired with dedicated safety relay modules such as the Allen-Bradley MSR127RP safety relay for emergency-stop and light-curtain monitoring circuits, ensuring that the discrete input layer and the safety layer operate in coordinated fashion. Terminal block assemblies — including the 1492-CABLE series pre-wired cables — simplify field wiring to the 1746-IM8’s screw-terminal connector, reducing installation time and wiring errors in dense control panels. For facilities standardizing on ControlLogix or CompactLogix as a migration path, the 1746-IM8 continues to serve as a reliable interim solution, often running in parallel with 1769-IQ16 CompactLogix discrete input modules during phased system upgrades.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 1746-IM8 monitors discrete field signals from wellhead sensors, pipeline valve position switches, and emergency shutdown (ESD) pushbuttons. Its optical isolation and AC input design make it well-suited for environments where long cable runs introduce significant electrical noise, and where a single missed or false input signal could trigger an unplanned shutdown or, worse, a safety incident. The module’s per-channel LED indicators allow field technicians to verify signal status without connecting diagnostic equipment, accelerating fault isolation during unplanned outages.

In mining and mineral processing, where conveyor systems, crushers, and ball mills generate sustained mechanical vibration and heavy electrical transients, the 1746-IM8 has demonstrated long service life when properly installed in sealed, climate-controlled enclosures. Its compatibility with the full SLC 500 processor family means that aging SLC 5/03 and SLC 5/04 systems — still common in legacy mining infrastructure — can be maintained and expanded without requiring a full platform migration.

In power generation and electrical utilities, the module is used to monitor breaker status, transformer tap positions, and auxiliary relay contacts within substation automation panels. Its ability to accept 120 VAC signals directly from field devices eliminates the need for intermediate signal converters, simplifying panel design and reducing potential failure points. Water treatment facilities rely on the 1746-IM8 to track pump run/fault status, valve open/closed feedback, and level switch states across distributed pump stations, where reliable discrete input acquisition is essential for regulatory compliance and process safety.

In metallurgy and steel production, where furnace environments push ambient temperatures to the upper limits of industrial equipment ratings, the 1746-IM8’s 0–60°C operating range and robust construction allow it to function reliably when installed in properly ventilated control rooms adjacent to the process. Continuous casting lines and rolling mills depend on accurate discrete input data to coordinate interlocked sequences that protect both equipment and personnel.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every 1746-IM8 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes functional verification testing — including backplane communication checks and per-channel input signal validation — to confirm it meets Allen-Bradley factory specifications. If a warranty claim arises, we provide direct replacement support with expedited logistics to minimize your downtime.

Q2: How do you verify compatibility with my existing SLC 500 chassis and processor?
The 1746-IM8 is compatible with all SLC 500 modular chassis (1746-A4, A7, A10, A13) and all SLC 500 processor variants (5/01 through 5/05). It requires no special configuration — the processor automatically identifies the module type via the backplane. If you are integrating into a mixed-slot chassis alongside analog modules, communication modules, or specialty I/O, our technical team can review your rack configuration and confirm slot compatibility before shipment.

Q3: What pre-shipment testing and inspection procedures are applied?
Each unit is inspected for physical integrity (connector condition, PCB cleanliness, label legibility) and subjected to powered functional testing on an SLC 500 test bench. Modules that do not pass all test criteria are quarantined and not offered for sale. Test records are retained and available upon request for quality-sensitive procurement processes.

Q4: Can you support long-term or recurring supply of the 1746-IM8 for maintenance programs?
Yes. TOPNLMS maintains standing inventory of high-demand SLC 500 I/O modules to support planned maintenance, emergency spares programs, and multi-site standardization initiatives. We can accommodate blanket purchase orders, scheduled release orders, and priority reservation arrangements for customers with ongoing replacement requirements. Contact our team to discuss volume pricing and supply continuity agreements.
