Allen-Bradley 1746-IH16 Replacement/Upgrade for SLC 500

Product Overview

Allen-Bradley 1746-IH16 Replacement/Upgrade for SLC 500: Seamless Migration & System Compatibility

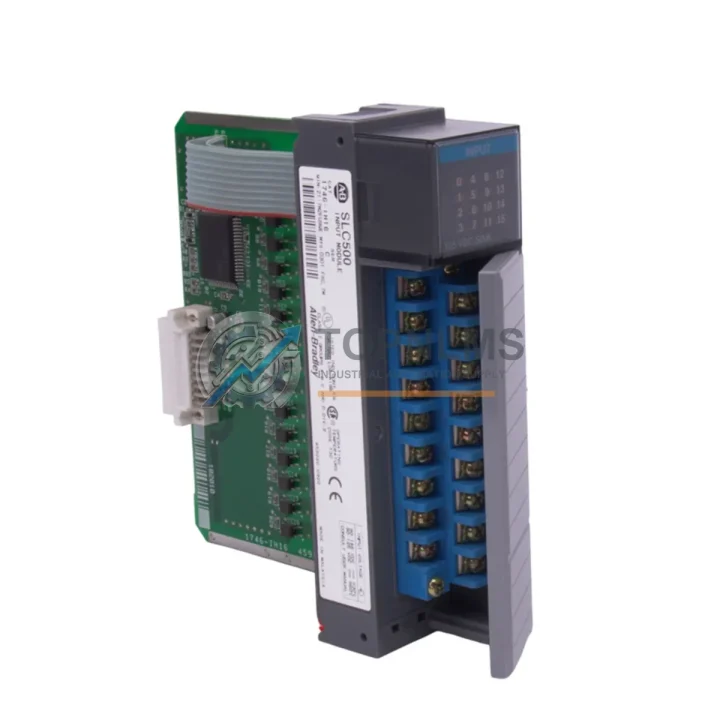

The Allen-Bradley 1746-IH16 is a 16-channel DC sinking input module designed for the SLC 500 modular I/O platform. As Rockwell Automation has progressively phased out legacy SLC 500 hardware, sourcing a reliable 1746-IH16 replacement or upgrade has become a critical priority for plant engineers and maintenance teams managing aging control systems. Whether you are executing a like-for-like spare replacement to minimize downtime, or planning a structured migration from SLC 500 to a ControlLogix or CompactLogix architecture, TOPNLMS supplies tested, quality-verified 1746-IH16 modules with a 12-month warranty and rapid international dispatch from Xiamen, China.

The 1746-IH16 accepts 16 discrete DC sinking (NPN) input signals and mounts directly into any SLC 500 modular chassis — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 rack sizes. Its field wiring connects via the standard 1746-RT25 or 1746-RT32 removable terminal block, meaning that in a direct replacement scenario, existing field cables can be re-terminated without re-labelling or re-routing. This wiring compatibility is one of the most significant factors in reducing planned maintenance windows and unplanned outage duration.

For facilities running mixed SLC 500 I/O racks alongside a 1747-L553 or 1747-L552 processor, the 1746-IH16 integrates transparently into the existing I/O map. No program changes are required for a slot-for-slot swap, provided the replacement module occupies the same chassis slot as the original. The SLC 500 processor reads the module’s input data table automatically upon power-up, eliminating the need for offline programming sessions during emergency replacements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SLC 500 modernization project rarely involves a single module in isolation. In practice, replacing or upgrading the 1746-IH16 is one step within a broader I/O and controller refresh. During the migration assessment phase, engineers typically audit the full rack population — identifying companion modules such as the 1746-OB16 16-channel DC sourcing output module and the 1746-IA16 16-channel AC input module, both of which share the same 1746 chassis and terminal block form factor as the IH16. Replacing these modules simultaneously reduces the number of separate maintenance windows and ensures the entire I/O tier is refreshed to a consistent hardware revision.

Power integrity is equally important. The 1746-P4 power supply module, rated at 10A for the SLC 500 rack, should be inspected and replaced if it is approaching end-of-life, since a degraded power supply can cause intermittent input faults that are difficult to distinguish from field wiring problems. Similarly, the 1747-SN remote I/O scanner module is commonly found in distributed SLC 500 architectures where remote racks communicate over the 1747 Remote I/O network; verifying its firmware revision and cable integrity is a prerequisite before commissioning a replacement IH16 in a remote rack.

For sites planning a phased migration toward EtherNet/IP-based control, the 1747-AENTR EtherNet/IP adapter allows existing SLC 500 I/O racks — including racks populated with 1746-IH16 modules — to be connected to a ControlLogix or CompactLogix controller without immediately replacing the I/O hardware. This adapter-based bridge strategy is widely used to extend the service life of installed SLC 500 I/O while the control layer is modernized. The 1756-EN2T EtherNet/IP communication module in the ControlLogix chassis serves as the corresponding network interface on the controller side.

Where the migration scope extends to the operator interface, the 2711P-T7C22D9P PanelView Plus 7 Standard HMI is a common upgrade target from older PanelView 550 or PanelView 900 terminals. Its native EtherNet/IP connectivity and Studio 5000 View Designer integration align well with a ControlLogix migration endpoint. Finally, for applications requiring signal conditioning between legacy field devices and new I/O modules, 1492-IFM20F interface modules and DIN-rail-mounted signal isolators are frequently specified to protect the new I/O hardware from field-side transients during the cutover period.

Retrofit Guidance FAQ

Q: Can I replace the 1746-IH16 without modifying my RSLogix 500 program?
A: Yes, for a direct slot-for-slot replacement within the same SLC 500 chassis. The processor’s I/O configuration references the slot address, not the module serial number. As long as the replacement module occupies the same slot, the input data table mapping remains unchanged and no program edits are required.

Q: Is the field wiring compatible between an original and a replacement 1746-IH16?
A: Yes. The 1746-IH16 uses the standard 1746-RT25 or 1746-RT32 removable terminal block. The terminal block can be unplugged from the original module and plugged directly into the replacement, preserving all field wiring connections and eliminating re-termination work.

Q: What communication protocol does the 1746-IH16 use?
A: The module communicates over the SLC 500 backplane bus. It does not have an independent network interface. The SLC 500 processor (e.g., 1747-L553) handles all upstream communication via DH-485, DH+, or EtherNet/IP depending on the communication module installed in the rack.

Q: Will the 1746-IH16 fit in all SLC 500 chassis sizes?
A: Yes. The module occupies a single I/O slot and is physically compatible with all SLC 500 modular chassis: 1746-A4 (4-slot), 1746-A7 (7-slot), 1746-A10 (10-slot), and 1746-A13 (13-slot). Ensure the chassis power supply (e.g., 1746-P4) has sufficient current capacity for the total module load.

Q: How do I verify the module is functioning correctly after installation?
A: Use RSLogix 500 or RSLogix Micro to go online with the processor and monitor the input data file (I:x.0 word) for the slot. Toggle each field input device and confirm the corresponding bit changes state. The module’s per-channel LED indicators also provide a visual confirmation of input status during commissioning.

Q: What is the input signal type accepted by the 1746-IH16?
A: The module accepts DC sinking (NPN) input signals in the 10–30 VDC range. It is not compatible with sourcing (PNP) field devices without an interposing relay or signal converter. If your field devices are PNP, consider the 1746-IB16 (DC sourcing input) as an alternative.

Warranty Assurance

Every 1746-IH16 module dispatched by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification test to confirm input channel integrity, backplane communication, and LED indicator operation. Modules that do not pass the pre-shipment test are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement-first policy: a verified replacement unit is dispatched before the defective module is returned, minimizing the impact on your production schedule. Our after-sales response target is one business day for warranty inquiries received via email or phone. Replacement logistics are coordinated directly with the buyer to accommodate site-specific receiving requirements.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Export from Xiamen, China is available via DHL Express, FedEx International Priority, or sea freight consolidation depending on order volume and delivery urgency. Lead time for in-stock modules is typically 3–5 business days to most international destinations.

To place an order or request a quotation, contact our sales team directly:

📧 [email protected] | 📞 +86 18359293191
