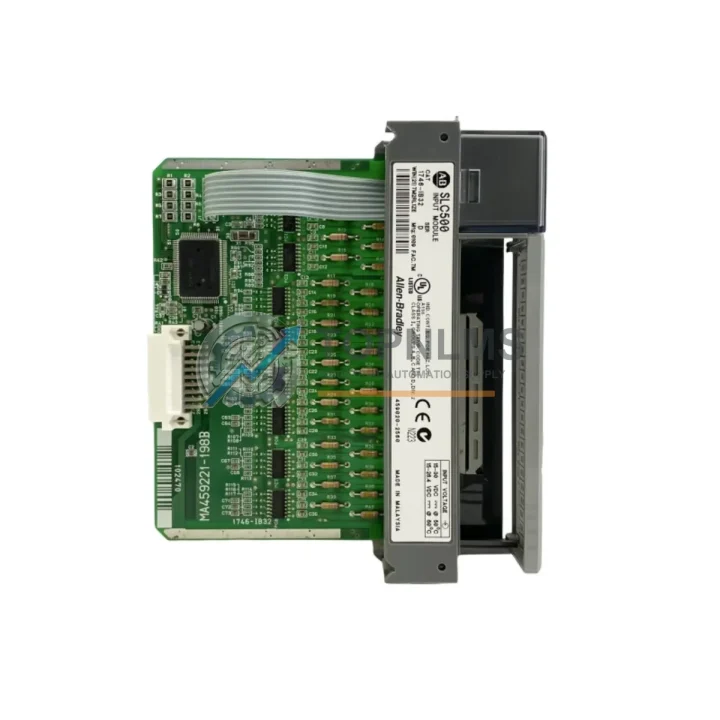

Allen-Bradley 1746-IB32/D Replacement for SLC 500

Product Overview

Allen-Bradley 1746-IB32/D Replacement for SLC 500: Seamless Transition & Upgrade Solution

The Allen-Bradley 1746-IB32/D is a 32-point, 24VDC DC sink input module designed for the SLC 500 modular chassis platform. As Rockwell Automation progressively phases out legacy SLC 500 components, facilities running 1746-series I/O racks face increasing pressure to source verified replacement units or plan a structured migration path. TOPNLMS supplies the 1746-IB32/D as a direct drop-in replacement, fully tested and backed by a 12-month warranty, enabling your maintenance team to restore system availability with minimal disruption.

Whether your plant is replacing a failed module on an emergency basis or executing a phased modernization from SLC 500 to a ControlLogix or CompactLogix architecture, this module fits directly into any 1746 modular chassis — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 rack sizes — without mechanical modification. The 32 discrete sink inputs accept 24VDC field signals and interface directly with existing field wiring through the original 1746-series wiring arm, eliminating rewiring costs and reducing installation time to minutes.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SLC 500 migration or emergency replacement rarely involves a single module in isolation. In practice, the 1746-IB32/D operates alongside a broader ecosystem of 1746-series components that must be evaluated together to ensure system continuity.

On the power supply side, the 1746-P4 and 1746-P7 power supply modules are the most common companions in larger SLC 500 racks. If your rack power supply is also aging, replacing it concurrently with the I/O module prevents a secondary failure from interrupting production shortly after the I/O swap. For CPU-level concerns, the 1747-L543 and 1747-L553 SLC 5/05 processors — which support Ethernet/IP communication — are frequently the last SLC 500 components to be retired, and they remain fully compatible with the 1746-IB32/D in any shared chassis.

When the migration scope expands to output control, the 1746-OB32 32-point 24VDC source output module is the natural pairing for the IB32/D, maintaining a consistent I/O density and simplifying rack slot planning. For analog signal acquisition alongside discrete inputs, the 1746-NI8 analog input module integrates into the same chassis without protocol conflicts.

Communication infrastructure is equally critical during a migration window. If your SLC 500 system communicates over DH+ or DH-485, the 1747-SDN DeviceNet scanner or a 1761-NET-ENI Ethernet interface module may already be present in your control cabinet. These modules continue to function alongside the 1746-IB32/D without firmware changes. For facilities transitioning to EtherNet/IP as part of a broader ControlLogix migration, the 1756-EN2T Ethernet communication module in the new ControlLogix chassis can be configured to mirror the existing SLC 500 I/O map, reducing the scope of PLC program modifications.

HMI continuity is another consideration. PanelView terminals connected to the SLC 500 via DH+ — such as the 2711-T10C8 or similar legacy PanelView 550/900 series — can continue operating during a phased migration, as the SLC 500 backplane and CPU remain active until the final cutover. This allows your team to validate the new I/O module behavior under live conditions before committing to a full platform change.

For field-side signal conditioning, if your process involves sensors with marginal signal levels or long cable runs, a 1492-IFM40F interface module or equivalent signal isolator mounted in the control cabinet can protect the 1746-IB32/D inputs from noise-induced false triggering — a common issue in older installations where cable shielding has degraded.

Retrofit Guidance FAQ

Q: Can I replace the 1746-IB32/D without modifying my RSLogix 500 program?
A: Yes. A like-for-like replacement of the 1746-IB32/D requires no program changes. The module occupies the same chassis slot, uses the same I/O address map, and the SLC 500 CPU will recognize it automatically on the next power cycle. No forcing or re-downloading of the program is required.

Q: Is the existing field wiring compatible?
A: Yes. The 1746-IB32/D uses the standard 1746-series wiring arm (removable terminal block). Your existing field wiring connected to the original wiring arm can be transferred directly to the replacement module without any rewiring. Verify terminal torque specifications per the original installation documentation.

Q: What communication protocols does this module support?
A: The 1746-IB32/D communicates exclusively over the SLC 500 proprietary backplane. It does not have an independent network interface. All network communication (DH+, DH-485, EtherNet/IP) is handled by the SLC 500 CPU module in the same chassis.

Q: Will this module fit in my existing 1746 rack without mechanical modification?
A: Yes. All 1746-series I/O modules share the same mechanical form factor and slide into any slot of any 1746-series modular chassis (A4, A7, A10, A13). No tools, adapters, or bracket modifications are required.

Q: What if I am migrating from SLC 500 to ControlLogix?
A: During a phased migration, the 1746-IB32/D can remain in service in the legacy SLC 500 rack while the new ControlLogix system is commissioned in parallel. Once the ControlLogix platform is validated, the equivalent replacement is the 1756-IB32 for a ControlLogix chassis or the 1769-IQ32 for a CompactLogix system. I/O address remapping in Studio 5000 will be required at that stage.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, power up the chassis and use RSLogix 500 online monitoring to verify that all 32 input bits respond correctly to field signals. Force individual inputs in a safe test mode to confirm wiring continuity before returning the system to automatic operation.

Warranty Assurance

Every 1746-IB32/D unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including backplane communication check, input channel continuity test, and visual inspection for physical damage. Units that do not pass our outgoing quality check are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are dispatched with priority shipping to minimize your downtime exposure.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices upon request. Bulk orders for MRO stocking programs are supported with lead-time commitments and reserved inventory arrangements.

Stock is maintained in Xiamen, China, with global shipping via DHL, FedEx, and UPS Express. Typical transit time to North America and Europe is 3–5 business days. Same-day dispatch is available for orders confirmed before 14:00 CST.
