Allen-Bradley 1746-IB16 Replacement for SLC 500: Seamless Transition & Compatible Upgrade

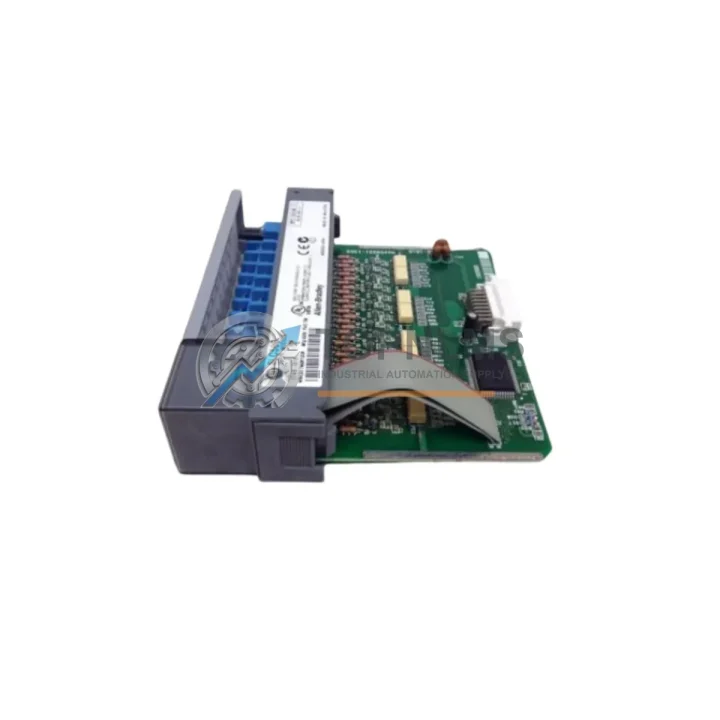

The Allen-Bradley 1746-IB16 is a 16-point, 24VDC sinking DC input module designed for the SLC 500 modular I/O system. As legacy SLC 500 installations age and original spare parts become increasingly difficult to source, plant engineers and maintenance teams face mounting pressure to secure reliable replacement modules without disrupting production. TOPNLMS maintains verified stock of the 1746-IB16 to support both emergency breakdown replacements and planned system upgrades, ensuring your SLC 500 rack continues to operate without costly reengineering.

The 1746-IB16 slots directly into any SLC 500 modular chassis — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 rack sizes — and communicates natively over the SLC 500 backplane. No firmware changes, no address remapping, and no PLC program modifications are required when performing a like-for-like swap. Each of the 16 input channels accepts 24VDC sinking field signals, making it fully compatible with standard proximity sensors, pushbuttons, limit switches, and photoelectric sensors already wired in your control cabinet.

For facilities running mixed Allen-Bradley architectures, the 1746-IB16 integrates seamlessly alongside other SLC 500 I/O modules such as the 1746-OB16 DC output module, the 1746-IB32 high-density input module, and the 1746-OW16 relay output module. Power is supplied through the SLC 500 chassis backplane via a compatible power supply such as the 1746-P2 or 1746-P4, eliminating the need for any additional field wiring changes during replacement.

Many customers upgrading from older fixed SLC 5/01 or SLC 5/02 processors to a modular SLC 5/03 or SLC 5/04 CPU find that the 1746-IB16 provides a straightforward I/O migration path. The module’s standard 1746 form factor means it occupies the same physical slot width and depth as predecessor modules, preserving control cabinet space and DIN rail layout. Communication between the processor and I/O modules remains on the native SLC 500 backplane protocol, so no additional communication bridges or protocol converters are needed.

For sites considering a longer-term migration toward ControlLogix or CompactLogix platforms, the 1746-IB16 can serve as an interim solution while the broader system architecture is redesigned. During this transition period, the existing SLC 500 rack — including the 1746-IB16, associated output modules, and the SLC 5/05 processor with its built-in EtherNet/IP port — can continue to operate in parallel with newer Logix-based controllers via a 1747-AENTR EtherNet/IP adapter, allowing phased migration without full production shutdown.

Field installation requires no special tools beyond a standard flathead screwdriver for the module latch. Wiring connections are made via the removable 1746-RT25 or 1746-RT34 wiring arm, which can be pre-wired and transferred directly from the failed module to the replacement unit — a critical advantage in time-sensitive breakdown scenarios. This plug-and-play wiring architecture dramatically reduces mean time to repair (MTTR) and minimizes the risk of wiring errors during emergency maintenance.

Programming compatibility is fully maintained. RSLogix 500 and RSLogix Micro project files require no modification when replacing a 1746-IB16 with an identical module. I/O addressing, rung logic, and data file references remain unchanged. For sites using a 1747-UIC USB-to-DH-485 programming cable or a 1747-CP3 serial cable to connect a laptop to the SLC processor, the replacement procedure can be completed and verified online within minutes.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete SLC 500 system retrofit typically involves more than a single I/O module. When replacing the 1746-IB16, maintenance engineers frequently need to address adjacent components in the same rack or control cabinet. The 1746-OB16 DC output module is the most common companion replacement, providing 16-point 24VDC sourcing outputs to drive solenoids, contactors, and indicator lights. For applications requiring relay isolation between the PLC and field devices, the 1746-OW16 relay output module offers a direct drop-in alternative within the same chassis.

Power supply integrity is equally critical during a module swap. The 1746-P2 (2A) and 1746-P4 (4A) power supplies are the standard units for SLC 500 modular racks and should be inspected or replaced concurrently to prevent nuisance faults after the I/O module is restored. For high-density I/O requirements, the 1746-IB32 32-point input module can consolidate two 1746-IB16 slots into one, freeing rack space for additional communication or specialty modules.

Communication upgrades are a natural extension of any SLC 500 modernization project. The 1747-AENTR EtherNet/IP remote I/O adapter allows existing SLC 500 I/O racks to be connected to ControlLogix or CompactLogix controllers over standard Ethernet infrastructure, preserving the field wiring investment while enabling a phased migration to the Logix platform. For sites still using DH-485 or DH+ networks, the 1747-SDN DeviceNet scanner module provides an additional integration pathway for distributed I/O and smart field devices.

HMI connectivity should also be reviewed during the upgrade. PanelView 600 and PanelView Plus terminals communicating with the SLC 5/03 or SLC 5/04 processor via DH-485 or RS-232 DF1 protocol will continue to operate without modification after the 1746-IB16 is replaced, as the processor data table addresses remain unchanged. Signal conditioning requirements — such as those addressed by signal isolators installed on the terminal strip — should be evaluated if the field sensor wiring runs exceed recommended cable lengths for 24VDC inputs.

Retrofit Guidance FAQ

Q: Do I need to modify my RSLogix 500 program after replacing the 1746-IB16?
A: No. A like-for-like replacement of the 1746-IB16 requires no program changes. The I/O address assignments in the data file remain identical, and the processor will recognize the new module automatically upon power-up.

Q: Can I transfer the wiring arm directly from the old module to the new one?
A: Yes. The 1746-RT25 and 1746-RT34 wiring arms are removable and transferable. This is the recommended procedure to minimize rewiring time and eliminate the risk of wiring errors during emergency replacement.

Q: Is the 1746-IB16 compatible with all SLC 500 chassis sizes?
A: Yes. The module is compatible with all SLC 500 modular chassis — 1746-A4 (4-slot), 1746-A7 (7-slot), 1746-A10 (10-slot), and 1746-A13 (13-slot) — regardless of the processor type installed (SLC 5/01 through SLC 5/05).

Q: What communication protocols does the SLC 500 system support?
A: The SLC 500 platform supports DH-485, DH+, RS-232 DF1, and (with the SLC 5/05 processor) EtherNet/IP. The 1746-IB16 communicates over the internal backplane and is not directly involved in external network communication, so protocol compatibility is unaffected by the module replacement.

Q: What is the physical installation space required?
A: The 1746-IB16 occupies a single slot in the SLC 500 modular chassis. No additional panel space or DIN rail modification is required for a direct replacement.

Q: Can the 1746-IB16 be used during a migration to ControlLogix?
A: Yes. Using a 1747-AENTR EtherNet/IP adapter, the existing SLC 500 I/O rack (including the 1746-IB16) can be connected to a ControlLogix or CompactLogix controller as remote I/O, enabling a phased migration without immediate field rewiring.

Warranty Assurance

Every 1746-IB16 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification testing to confirm input channel integrity, backplane communication, and LED indicator operation. Units are packaged in anti-static protective packaging with individual serial number documentation to support traceability.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation verification, fault diagnosis, and compatibility confirmation before and after purchase. Typical order processing time is 1–3 business days, with express shipping options available for emergency breakdown situations.

We maintain standing inventory of the 1746-IB16 and related SLC 500 components to support both planned maintenance schedules and unplanned breakdown events. Bulk procurement and long-term supply agreements are available for OEM integrators and maintenance contractors managing multiple SLC 500 installations.
